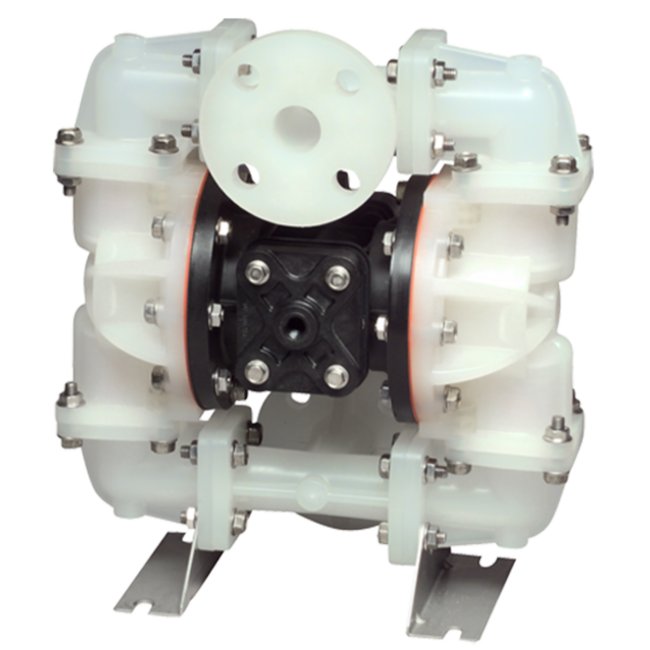

S10 Non-Metallic Ball Valve Diaphragm Pump
S10 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-028b7b
Reliable S10 Top Discharge Non-Metallic Ball Valve Pump for corrosive fluids with suspended solids. 1" ANSI flange inlet/outlet, PVDF wetted material, max flow 23 gpm.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
S10 Non-Metallic Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Claim Your Seller Account
S10 Non-Metallic Ball Valve Diaphragm Pump
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S10 Top Discharge Non-Metallic Ball Valve Pump is a reliable solution for handling highly corrosive fluids with suspended solids. Constructed with TPE and PTFE diaphragms and check valves, this air-powered double diaphragm pump boasts a 1" ANSI flange inlet/outlet, PVDF wetted material, and a max flow rate of 23 gpm. Perfect for intermittent use in waste water applications, it meets Sandpiper Standard Duty pump standards.
Product Specifications
Curves 0

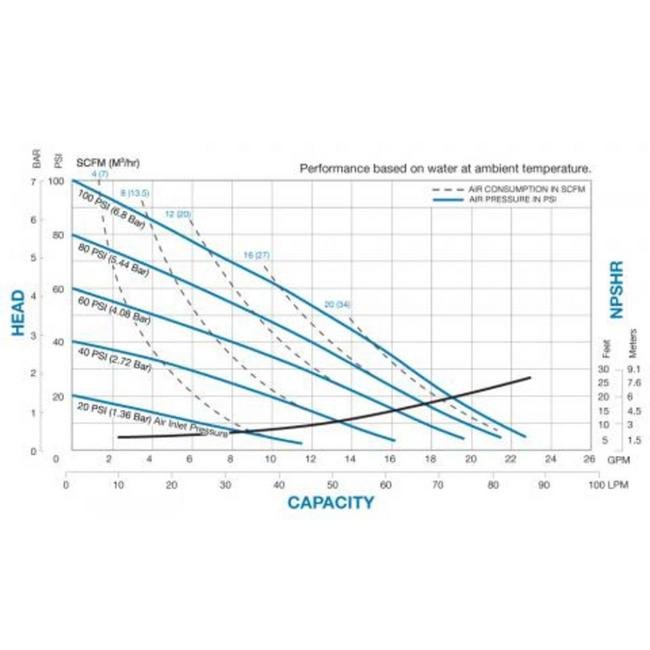

Performance Curves
Specifications Check Valve Seat
PVDF
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code 2B350.i
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Virgin PTFE - Santoprene Backup/Virgin PTFE
Specifications Height
14 in | 350.84 mm
Specifications Inlet Size
1" ANSI Flange
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1" ANSI Flange
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS10B1K2KPAS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
21 lbs | 9.50 kg
Specifications Wetted Moc
PVDF
Specifications Width
8 in | 192.09 mm
Category 6
Standard Duty Diaphragm Pumps
