S10 Non-Metallic Ball Valve Diaphragm Pump
S10 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-e64809
Reliable S10 Non-Metallic Ball Valve Diaphragm Pump for corrosive fluids with 23 gpm max flow & Polypropylene construction.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
S10 Non-Metallic Ball Valve Diaphragm Pump
$1,299.99
Quantity: 1
Claim Your Seller Account
S10 Non-Metallic Ball Valve Diaphragm Pump
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

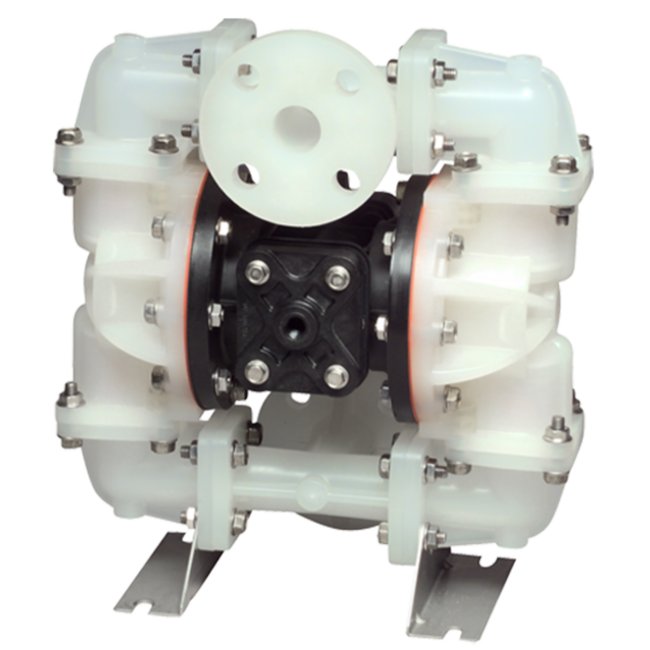

The S10 Top Discharge Non-Metallic Ball Valve Pump is designed for highly corrosive fluids, intermittent use, and low abrasive applications. Constructed with TPE and PTFE diaphragms and check valves, this pump ensures durability and efficient operation. With a 1" ANSI flange inlet and outlet, solid handling capacity of 0.15 inches, and a max flow rate of 23 gpm, it is ideal for wastewater and utility applications. The Polypropylene construction meets stringent industry standards for reliability and performance.
Product Specifications
Curves 0

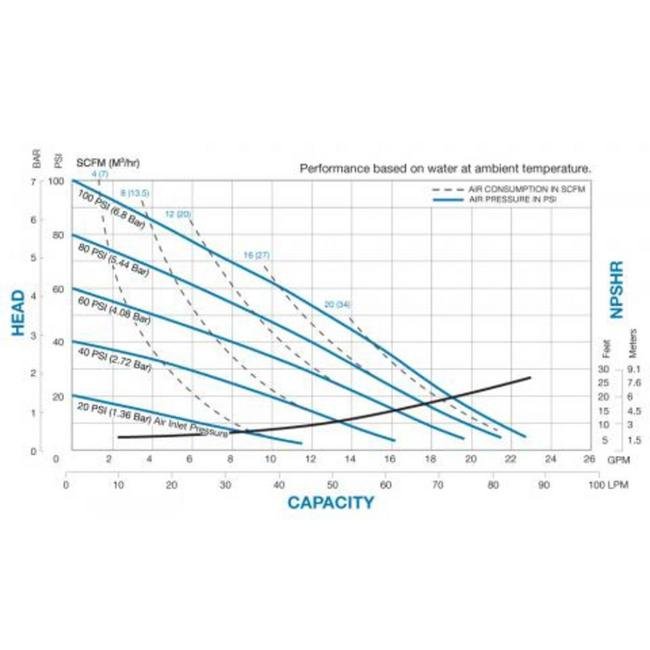

Performance Curves
Specifications Check Valve Seat
Polypropylene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Virgin PTFE - Santoprene Backup/Virgin PTFE
Specifications Height
14 in | 350.84 mm
Specifications Inlet Size
1" ANSI Flange
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1" ANSI Flange
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS10B1P2PPAS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
17 lbs | 8 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
8 in | 192.09 mm
Category 6
Standard Duty Diaphragm Pumps
