S10 Non-Metallic Ball Valve Diaphragm Pump - Air Powered AOD Pump
S10 Non-Metallic Ball Valve Diaphragm Pump - Air Powered AOD Pump
SKU:PRO-8b9035
Reliable S10 Non-Metallic Ball Valve Diaphragm Pump for industrial pumping needs
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
S10 Non-Metallic Ball Valve Diaphragm Pump - Air Powered AOD Pump
$599.99
Quantity: 1
Claim Your Seller Account
S10 Non-Metallic Ball Valve Diaphragm Pump - Air Powered AOD Pump
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

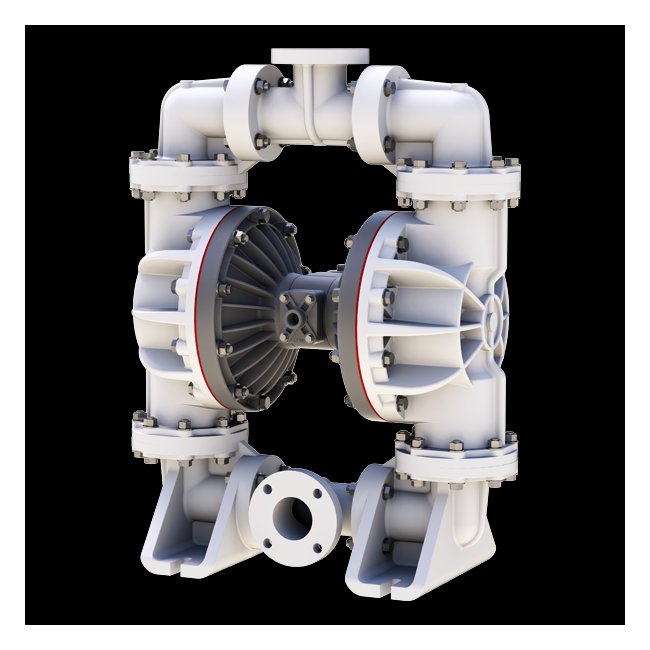

The S10 Non-Metallic Ball Valve Diaphragm Pump is a reliable air-powered double diaphragm pump designed for efficient pumping operations in diverse industrial settings. With an inlet and outlet size of 1" ANSI flange, it can handle solids up to 0.15 inches, ensuring smooth operation even with challenging debris. The pump's construction features sustainably durable materials like Nylon, Polypropylene, and PVDF, with elastomers including Santoprene, Buna, and Virgin PTFE for reliable performance. Its variety of porting positions and a maximum flow rate of 23 gpm make it a versatile and efficient choice for standard duty diaphragm pump applications.
Product Specifications
Specifications Check Valve Seat
Nylon | Polypropylene | PVDF
Specifications Check Valve Type
Ball | Trihedral
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Santoprene/Buna | Virgin PTFE - Santoprene Backup Viton®
Specifications Inlet Size
1" ANSI Flange
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene with PTFE hardware
Specifications Outlet Size
1" ANSI Flange
Specifications Porting Position
ANSI Flange | Bottom Dual Porting (BSP) | Bottom Dual Porting (NPT) | BSP Threads | Dual Porting (BSP) | Dual Porting (NPT) | Top Dual Porting (BSP) | Top Dual Porting (NPT)
Specifications Pump Style
Standard
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Wetted Moc
Nylon | Polypropylene | PVDF
Category 6
Standard Duty Diaphragm Pumps
