Reliable S10 Diaphragm Pump for corrosive fluids & suspended solids. Air-powered, top discharge design.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
S10 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge
$799.99
Quantity: 1
Claim Your Seller Account
S10 Non-Metallic Ball Valve Diaphragm Pump - Top Discharge
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

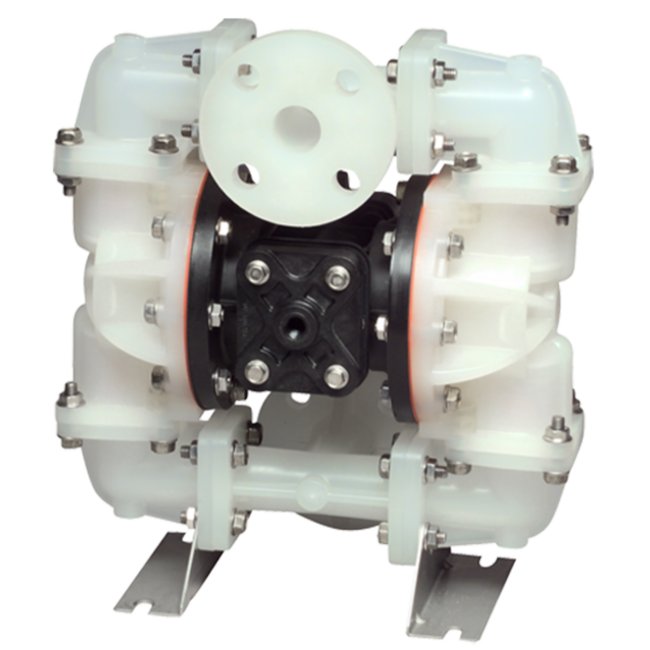

The S10 Top Discharge Non-Metallic Ball Valve Pump is specifically designed for handling highly corrosive fluids, suspended solids, and low abrasive fluids. Constructed with TPE and PTFE diaphragms and check valves, this air-powered double diaphragm pump offers exceptional durability and reliability. With a 1" ANSI flange inlet and outlet, this pump has a maximum flow rate of 23 gpm, making it ideal for standard duty applications. The pump meets industry standards for sealless operation and is suitable for both intermittent and portable use, making it a versatile choice for wastewater and utility applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

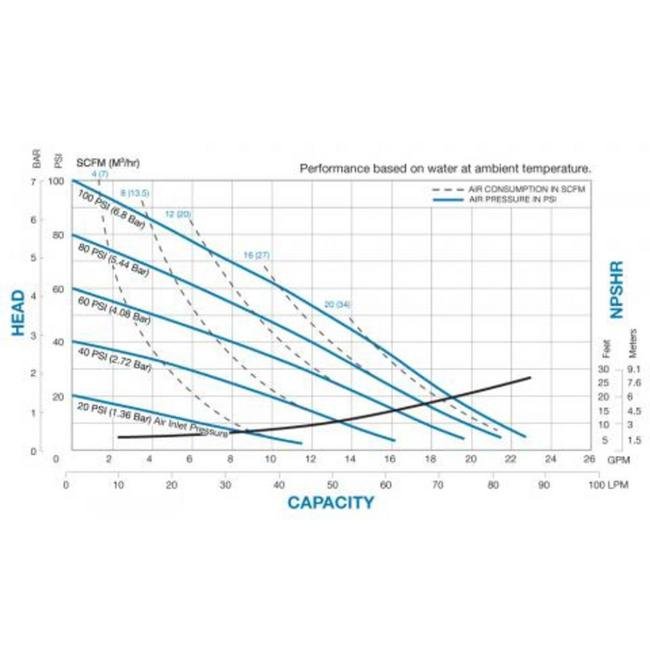

Performance Curves
Specifications Check Valve Seat
Nylon
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code EAR99
Specifications Design Level
1
Specifications Displacement Per Stroke
0.026 gal | 0.098 lit
Specifications Elastomers
Virgin PTFE - Santoprene Backup/Virgin PTFE
Specifications Height
14 in | 350.84 mm
Specifications Inlet Size
1" ANSI Flange
Specifications Length
12 in | 300.04 mm
Specifications Max Flow Rate
0 - 23 gpm | 0 - 87 lpm
Specifications Non Wetted Material
Polypropylene
Specifications Outlet Size
1" ANSI Flange
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS10B1N2NPAS000SP
Specifications Solids Handling
0.15 in | 4 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless
Specifications Weight
18 lbs | 9 kg
Specifications Wetted Moc
Nylon
Specifications Width
8 in | 192.09 mm
Category 6
Standard Duty Diaphragm Pumps
