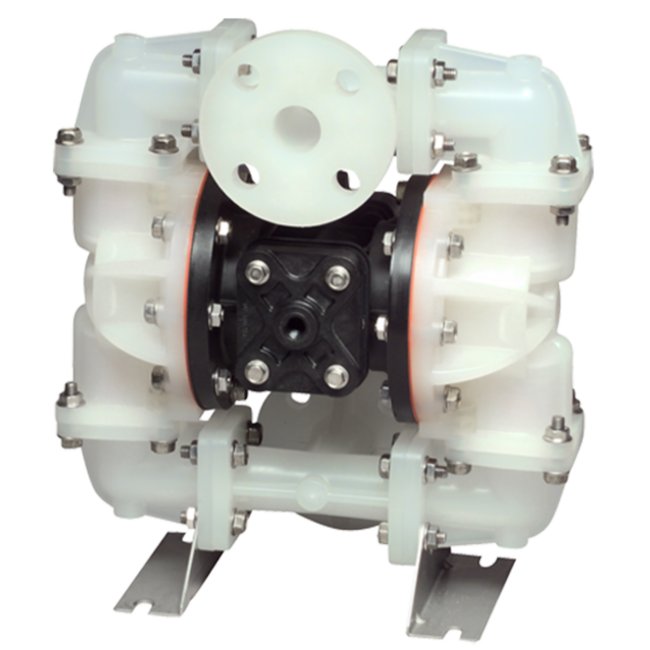

S10 Top Discharge Non-Metallic Ball Valve Diaphragm Pump

Name: S10 Top Discharge Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-32a9a0
Price: 799.99 USD
Availability: OutOfStock

SKU:PRO-32a9a0

Reliable S10 Non-Metallic Ball Valve Pump for corrosive fluids. Portable & durable design. Ideal for standard duty diaphragm pumps.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S10 Top Discharge Non-Metallic Ball Valve Diaphragm Pump is specifically designed to handle highly corrosive fluids, intermittent operation, and low abrasive substances with suspended solids. Constructed with durable TPE and PTFE components, it ensures reliable performance in demanding environments. With an inlet size of 1 ANSI Flange, a maximum flow rate of 23 gpm, and superior polypropylene construction, this pump is perfect for wastewater applications. Accessories sold separately. Contact us for custom options.

Product Specifications

Curves 0

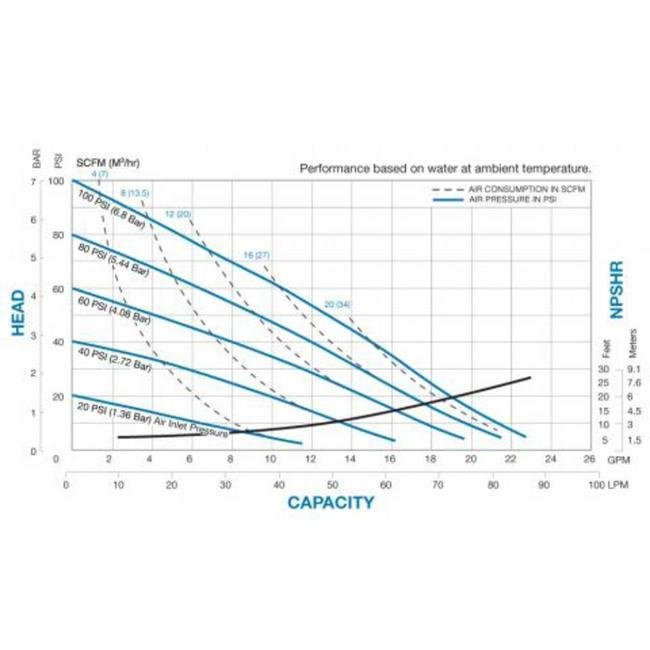

Performance Curves

Specifications Check Valve Seat

NULL

Specifications Check Valve Type

NULL

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.026 gal | 0.10 lit

Specifications Height

14 in | 350.84 mm

Specifications Inlet Size

1 ANSI Flange in | 25 ANSI Flange mm

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

23 gpm | 1380.00 gph | 87.06 lpm | 5223.87 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS10B1PZPPAS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Weight

23 lbs | 10.43 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

8 in | 192.09 mm

Category 6

Standard Duty Diaphragm Pumps

S10 Top Discharge Non-Metallic Ball Valve Diaphragm Pump
