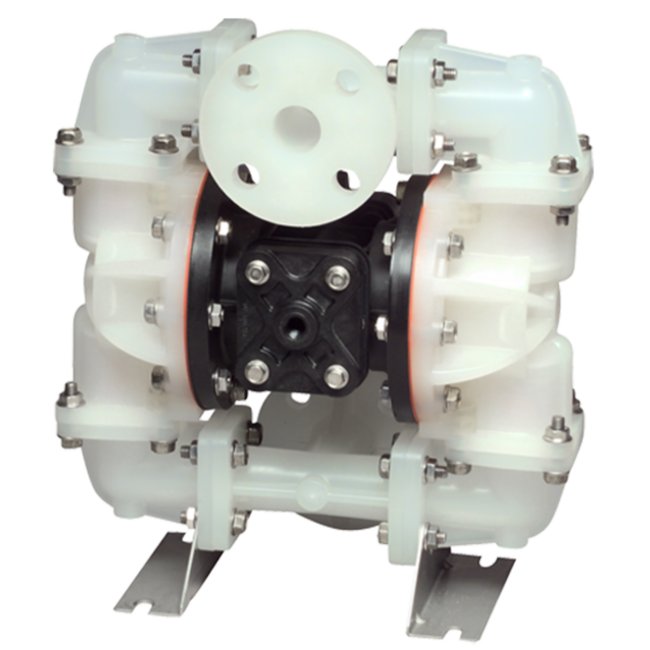

S10 Top Discharge Non-Metallic Diaphragm Pump

Name: S10 Top Discharge Non-Metallic Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-f87fd3
Price: 1099.99 USD
Availability: OutOfStock

SKU:PRO-f87fd3

Highly corrosive fluid handling made easy with the S10 Top Discharge Non-Metallic Diaphragm Pump. Ideal for wastewater applications.

$1,099.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S10 Top Discharge Non-Metallic Diaphragm Pump is designed for highly corrosive and low abrasive fluids, featuring TPE and PTFE construction. With a durable PVDF design and Santoprene/Santoprene elastomers, this pump excels in handling solids up to 0.15 inches. Ideal for wastewater applications, it offers a max flow rate of 23 gpm and complies with federal procurement standards, making it a reliable choice for institutional needs.

Product Specifications

Curves 0

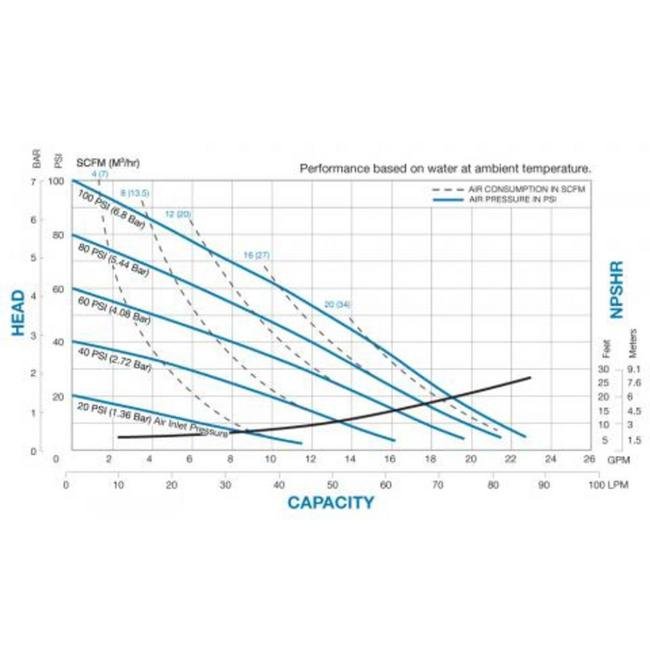

Performance Curves

Specifications Check Valve Seat

PVDF

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Displacement Per Stroke

0.026 gal | 0.098 lit

Specifications Elastomers

Santoprene/Santoprene

Specifications Height

14 in | 350.84 mm

Specifications Inlet Size

1" ANSI Flange

Specifications Length

12 in | 300.04 mm

Specifications Max Flow Rate

0 - 23 gpm | 0 - 87 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Outlet Size

1" ANSI Flange

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS10B1K1KPAS000SP

Specifications Solids Handling

0.15 in | 4 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD Non-Metallic | Pumps - Sandpiper Standard Duty | Pumps - Sealless

Specifications Weight

21 lbs | 9.50 kg

Specifications Wetted Moc

PVDF

Specifications Width

8 in | 192.09 mm
