S15 Non-Metallic Ball Valve Diaphragm Pump
S15 Non-Metallic Ball Valve Diaphragm Pump
SKU:PRO-85c101
Reliable S15 Non-Metallic Diaphragm Pump for corrosive fluids with 1.5" ANSI inlet, 100 gpm flow rate, and accessories available.
Regular price
$1,850.99
Regular price
Sale price
$1,850.99
Unit price
per
Initiate Order
S15 Non-Metallic Ball Valve Diaphragm Pump
$1,850.99
Quantity: 1
Claim Your Seller Account
S15 Non-Metallic Ball Valve Diaphragm Pump
$1,850.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

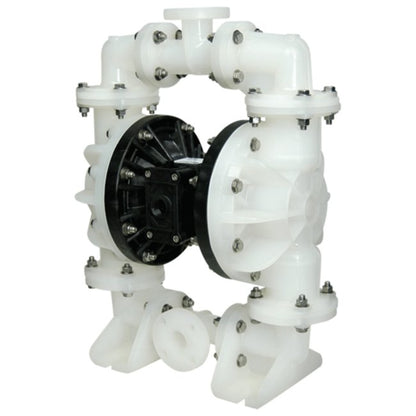

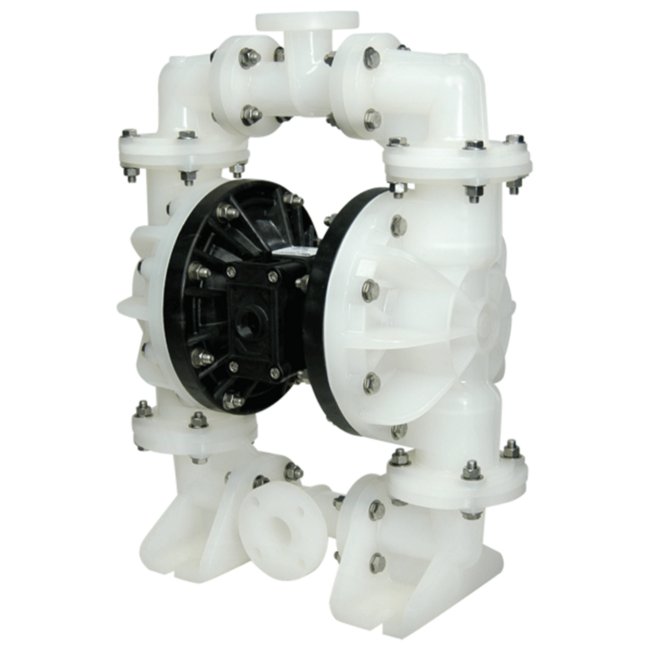

The Sandpiper® S15 Non-Metallic Ball Valve Diaphragm Pump is designed for handling highly corrosive fluids with intermittent/on-demand needs. Constructed with TPE and PTFE options, this pump is ideal for low abrasive fluids and suspended solids. With a 1.5 ANSI inlet size, handling 0.47-inch solids, and a max flow rate of 100 gpm, this pump ensures reliable performance in diverse applications. Accessories like wet end and air end kits are available separately for maintenance purposes.
Product Specifications

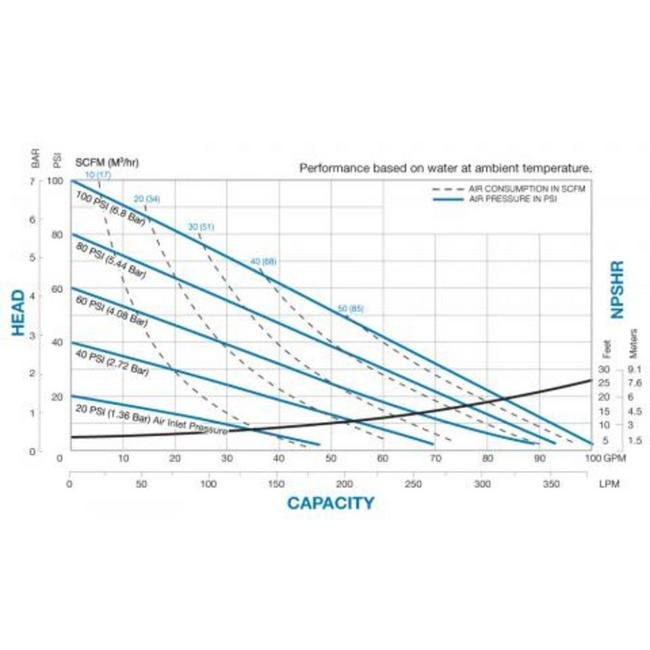

Curves 0
Dimensions 0
Dimensions
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.43 gal | 1.63 lit
Specifications Height
29 in | 730.25 mm
Specifications Inlet Size
1.5 ANSI Flange in | 38 ANSI Flange mm
Specifications Length
23 in | 584.20 mm
Specifications Max Flow Rate
100 gpm | 6000.00 gph | 378.54 lpm | 22712.47 lph
Specifications Non Wetted Material
40 Per Cent Glass Filled Polypropylene
Specifications Sku
WRS15B3P2PPAS000SP
Specifications Solids Handling
0.47 in | 12 mm
Specifications Weight
82 lbs | 37.19 kg
Specifications Wetted Moc
Polypropylene
Specifications Width
13 in | 330.20 mm
Category 6
Standard Duty Diaphragm Pumps
