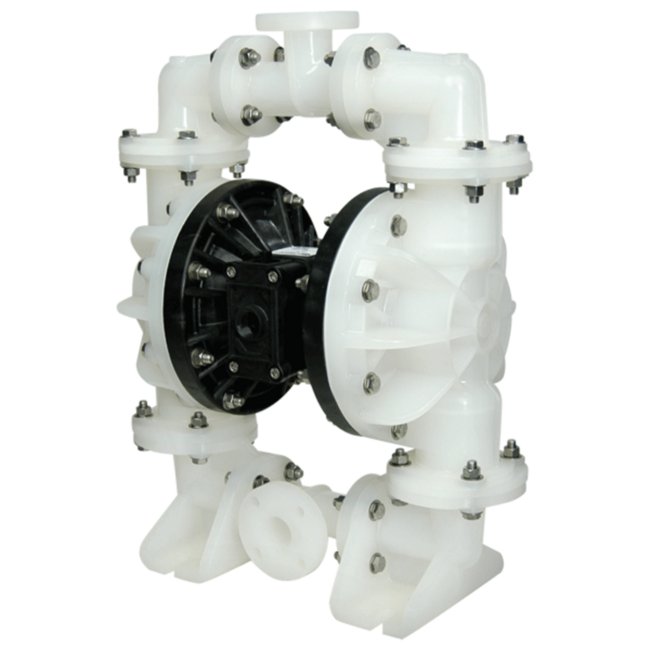

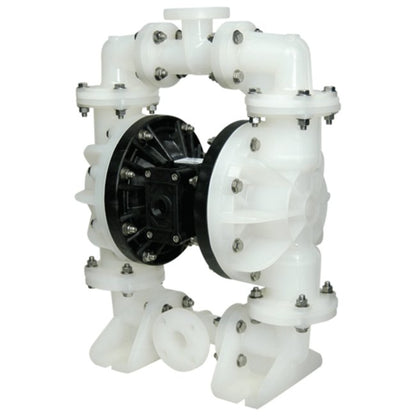

S15 Poly Ball Valve Diaphragm Pump - 1.5 Inch Top Discharge

Name: S15 Poly Ball Valve Diaphragm Pump - 1.5 Inch Top Discharge
Brand: Springer Pumps, LLC
SKU: PRO-803ae3
Price: 1899.99 USD
Availability: OutOfStock

SKU:PRO-803ae3

Durable S15 Poly Ball Valve Pump for abrasive fluids & solids. Top discharge, 100 gpm flow rate.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S15 Poly Ball Valve Diaphragm Pump is a standard-duty pump designed for intermittent use with moderately abrasive fluids and suspended solids. Constructed with Polypropylene material and Ball Check Valve, it offers reliability and durability. This pump includes options for Stainless Steel Sleeve and Brass Spool add-ons for enhanced performance. With a maximum flow rate of 100 gpm and a top discharge porting position, it meets the needs of water, wastewater, and utility applications.

Product Specifications

Curves 0

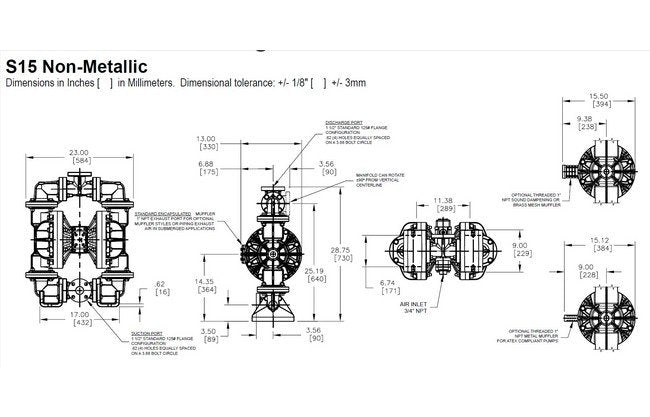

Dimensions 0

Dimensions

Specifications Check Valve Seat

Polypropylene

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.43 gal | 1.63 lit

Specifications Height

29 in | 730.25 mm

Specifications Inlet Size

1.5 Universal ANSI/DIN Flange in | 38 Universal ANSI/DIN Flange mm

Specifications Length

23 in | 0.5842 m | 584.20 mm

Specifications Max Flow Rate

100 gpm | 6000.00 gph | 378.54 lpm

Specifications Non Wetted Material

Polypropylene

Specifications Porting Position

Top Discharge

Specifications Sku

WRS15B3P1PPUS0SBSP

Specifications Solids Handling

0.47 in | 12 mm

Specifications Weight

82 lbs | 37.19 kg | 37.19 Kilogram

Specifications Wetted Moc

Polypropylene

Specifications Width

13 in | 0.3302 m | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps

S15 Poly Ball Valve Diaphragm Pump - 1.5 Inch Top Discharge
