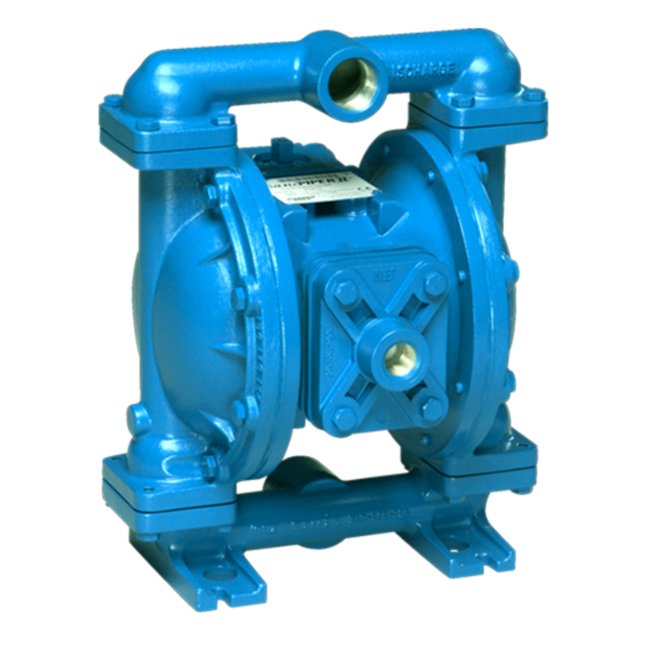

S1F Top Discharge Metallic Ball Valve Diaphragm Pump

Name: S1F Top Discharge Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-4b161a
Price: 1299.99 USD
Availability: OutOfStock

SKU:PRO-4b161a

Reliable S1F Top Discharge Pump for abrasive fluids. Max flow rate 45 gpm. Perfect for standard duty applications.

$1,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S1F Top Discharge Metallic Ball Valve Diaphragm Pump is designed for intermittent, portable pumping of moderately abrasive fluids and suspended solids. With options for TPE and PTFE diaphragms and check valves, this pump is reliable and versatile. It features a ball check valve type, cast iron wetted M.O.C., and PTFE elastomers for durability. Ideal for standard duty applications, it offers a max flow rate of 45 gpm and can handle solids up to 6mm. Recommended accessories available separately.

Product Specifications

Curves 0

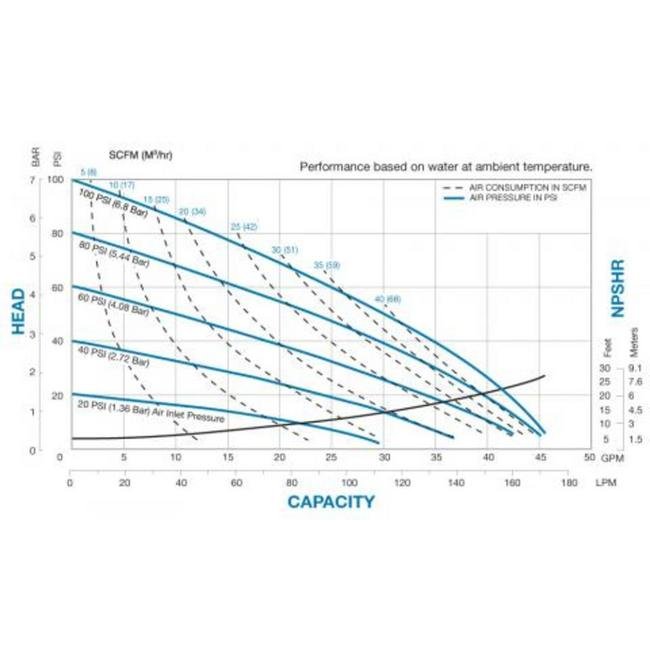

Performance Curves

Specifications Check Valve Seat

PTFE

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

1" BSPT Tapered | 1" NPT

Specifications Displacement Per Stroke

0.11 gal | 0.42 lit

Specifications Elastomers

PTFE - Neoprene/PTFE

Specifications Height

13 in | 326.23 mm

Specifications Intake Pipe Size Internal

1" BSPT Tapered | 1" NPT

Specifications Length

10 in | 263.52 mm

Specifications Max Flow Rate

0 - 45 gpm | 0 - 170 lpm

Specifications Non Wetted Material

Painted Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS1FB1IGTANS000SP

Specifications Solids Handling

25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

46 lbs | 21 kg

Specifications Wetted Moc

Cast Iron

Specifications Width

10 in | 260.35 mm

Category 6

Standard Duty Diaphragm Pumps

S1F Top Discharge Metallic Ball Valve Diaphragm Pump
