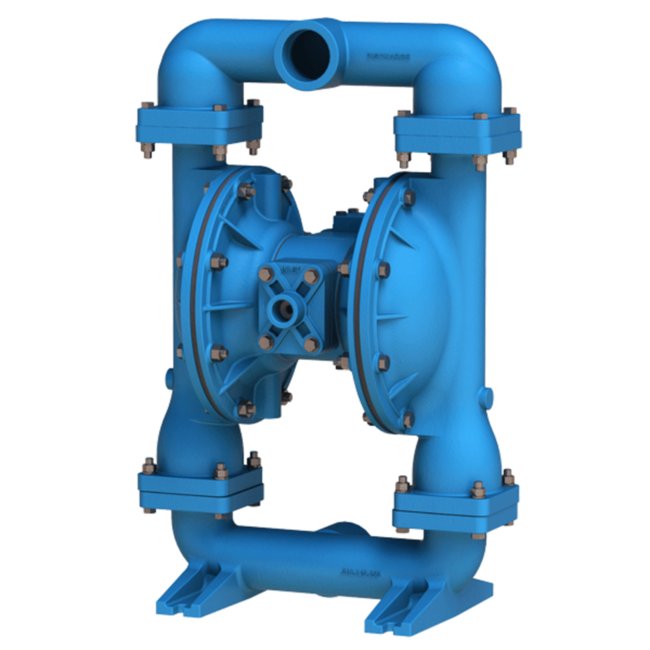

S20 Ball Valve Metallic Diaphragm Pump

S20 Ball Valve Metallic Diaphragm Pump

PRO-85e37d

The S20 Ball Valve Metallic Diaphragm Pump - Reliable pumping for abrasive fluids and suspended solids.

$1,599.99
$1,599.99
Sale

Initiate Order

S20 Ball Valve Metallic Diaphragm Pump

S20 Ball Valve Metallic Diaphragm Pump

$1,599.99

Quantity: 1

Claim Your Seller Account

S20 Ball Valve Metallic Diaphragm Pump

S20 Ball Valve Metallic Diaphragm Pump

$1,599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The S20 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand pumping of moderately abrasive fluids and suspended solids. This Air Powered Double Diaphragm Pump features TPE and PTFE options, with a solid handling capacity of 0.25 inches. With a maximum flow rate of 150 gpm and a weight of 93 lbs, this pump is ideal for standard duty applications. Equipped with Neoprene/Neoprene elastomers and a Ball check valve, it meets rigorous industry standards for durability and performance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

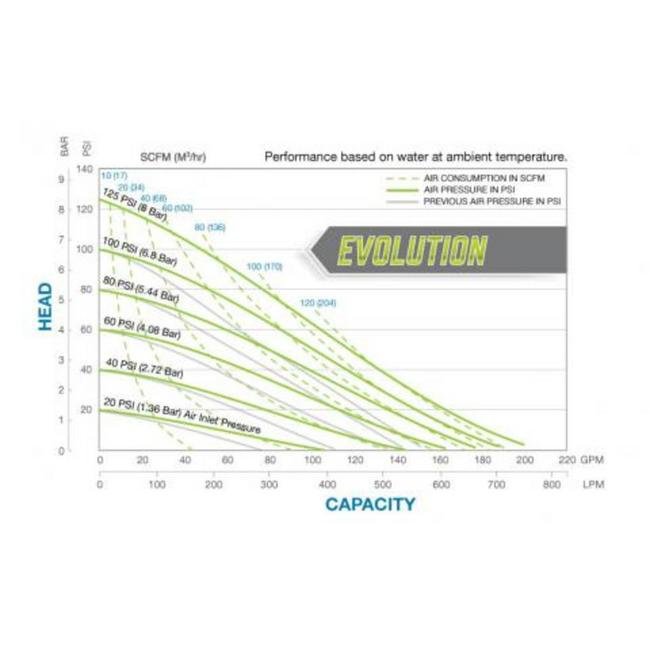

Performance Curves
Specifications Check Valve Seat
Neoprene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Elastomers
Neoprene/Neoprene
Specifications Height
26 in | 669.54 mm
Specifications Intake Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Length
17 in | 432.56 mm
Specifications Max Flow Rate
0 - 150 gpm | 0 - 567 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS20B1INNANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
93 lbs | 42 kg
Specifications Wetted Moc
Cast Iron
Specifications Width
13 in | 321.56 mm
Category 6
Standard Duty Diaphragm Pumps
