S20 Evolution Metallic Ball Valve Diaphragm Pump
S20 Evolution Metallic Ball Valve Diaphragm Pump
SKU:PRO-0061df
Versatile S20 Evolution Metallic Ball Valve Diaphragm Pump for abrasive fluids & solids. Max flow rate 150 gpm, ideal for water & wastewater applications.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
S20 Evolution Metallic Ball Valve Diaphragm Pump
$1,599.99
Quantity: 1
Claim Your Seller Account
S20 Evolution Metallic Ball Valve Diaphragm Pump
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S20 Evolution Metallic Ball Valve Diaphragm Pump is a reliable solution designed for intermittent/on-demand applications, capable of handling moderately abrasive fluids and suspended solids. Equipped with TPE and PTFE diaphragms and check valves, this pump offers versatility and durability. With a max flow rate of 150 gpm and a solids handling capacity of 0.25 inches, it ensures efficient performance. The pump's design meets industry standards and is ideal for water, wastewater, sump, and utility applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

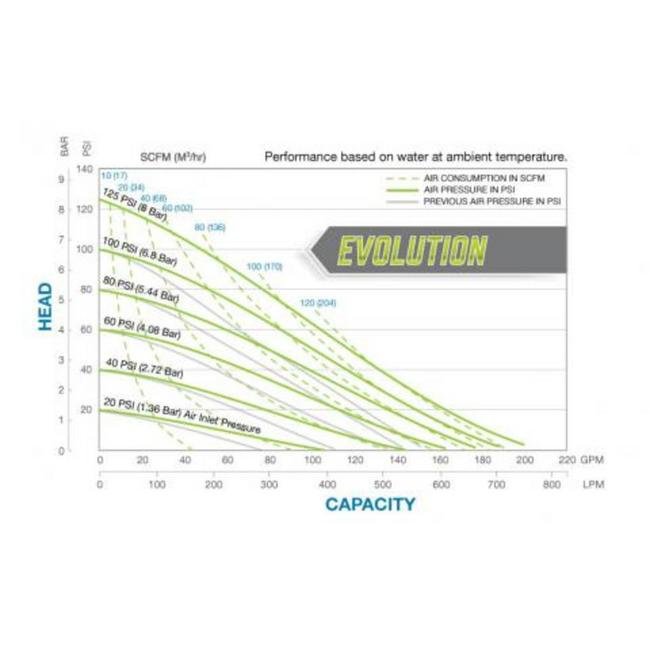

Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Elastomers
PTFE - Neoprene/PTFE
Specifications Height
26 in | 669.54 mm
Specifications Intake Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Length
17 in | 432.56 mm
Specifications Max Flow Rate
0 - 150 gpm | 0 - 567 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS20B1IGTANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
93 lbs | 42 kg
Specifications Wetted Moc
Cast Iron
Specifications Width
13 in | 321.56 mm
