S20 Evolution Metallic Ball Valve Diaphragm Pump - Standard Duty
S20 Evolution Metallic Ball Valve Diaphragm Pump - Standard Duty
SKU:PRO-30d579
Reliable S20 Evolution Metallic Ball Valve Diaphragm Pump for industrial pumping needs. Durable construction with efficient performance.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
S20 Evolution Metallic Ball Valve Diaphragm Pump - Standard Duty
$1,499.99
Quantity: 1
Claim Your Seller Account
S20 Evolution Metallic Ball Valve Diaphragm Pump - Standard Duty
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

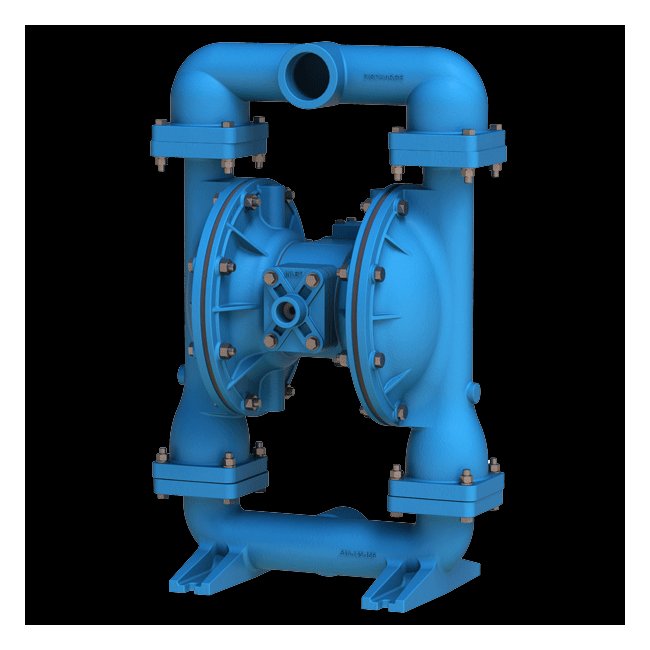

The S20 Evolution Metallic Ball Valve Diaphragm Pump is a robust and efficient air powered double diaphragm pump suitable for various industrial applications. With a solid construction using cast iron and Viton® materials, this pump offers reliable performance and durability. Its ball check valve type and PTFE check valve seat ensure smooth operation and minimal maintenance. Designed to handle solids up to 0.25 inches, this pump has a maximum flow rate of 150 gpm, making it ideal for standard duty diaphragm pump requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Elastomers
Viton®/Viton®
Specifications Intake Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Max Flow Rate
0 - 150 gpm | 0 - 567 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
93 lbs | 42 kg
Specifications Wetted Moc
Cast Iron
Category 6
Standard Duty Diaphragm Pumps
