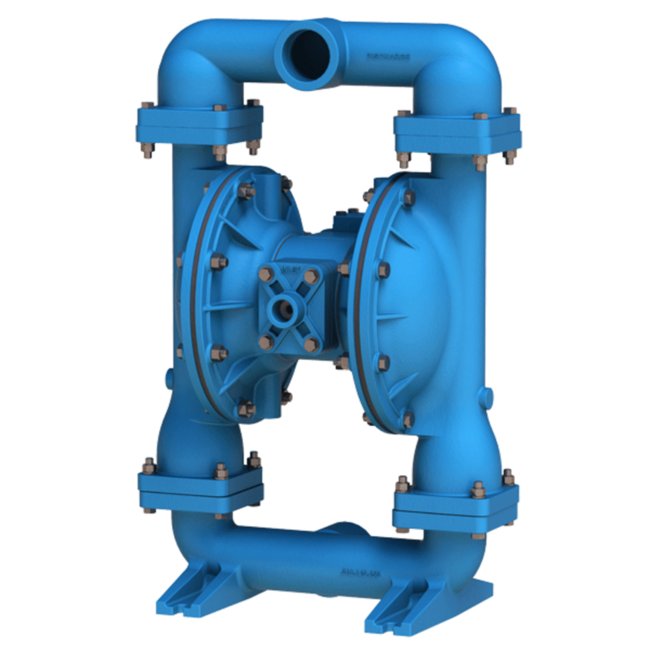

S20 Evolution Top Discharge Metallic Ball Valve Diaphragm Pump

Name: S20 Evolution Top Discharge Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-5476ac
Price: 2350.0 USD
Availability: OutOfStock

SKU:PRO-5476ac

Versatile S20 Evolution Metallic Ball Valve Pump for abrasive fluids & solids, durable aluminum construction, optional kits for enhanced functionality.

$2,350.00

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S20 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand applications, handling moderately abrasive fluids and suspended solids. Featuring TPE and PTFE diaphragm and check valve options, it ensures versatile performance. With a durable aluminum construction, Buna elastomers, and a ball check valve, this pump offers reliable operation. The 2" BSPT/NPT intake and discharge pipe sizes, along with a 0.25" solids handling capability, make it ideal for standard duty wastewater applications. Optional kits are available for enhanced functionality.

Product Specifications

Curves 0

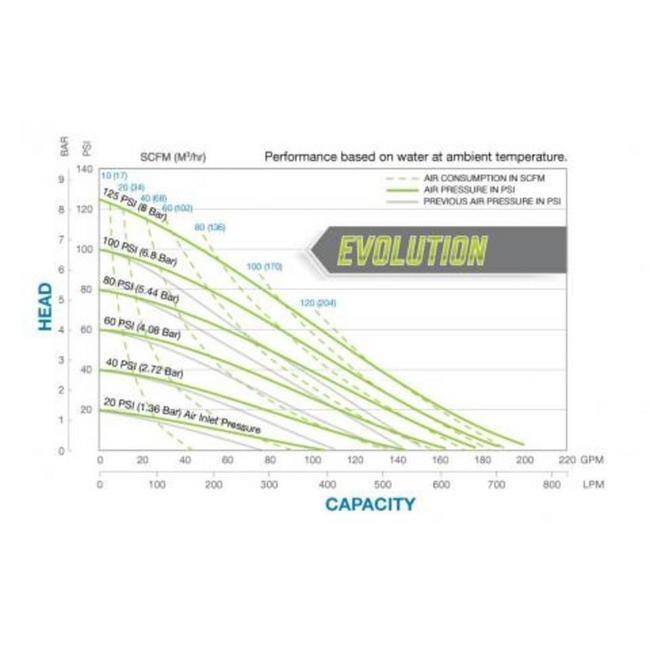

Performance Curves

Specifications Check Valve Seat

Buna

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

2" BSPT Tapered | 2" NPT

Specifications Displacement Per Stroke

0.42 gal | 1.59 lit

Specifications Elastomers

Buna/Buna

Specifications Height

26 in | 669.54 mm

Specifications Intake Pipe Size Internal

2" BSPT Tapered | 2" NPT

Specifications Length

17 in | 432.56 mm

Specifications Max Flow Rate

0 - 150 gpm | 0 - 567 lpm

Specifications Non Wetted Material

Painted Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS20B1ABBANS000SP

Specifications Solids Handling

0.25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

53 lbs | 24 kg

Specifications Wetted Moc

Aluminum

Specifications Width

13 in | 321.56 mm

Category 6

Standard Duty Diaphragm Pumps

S20 Evolution Top Discharge Metallic Ball Valve Diaphragm Pump
