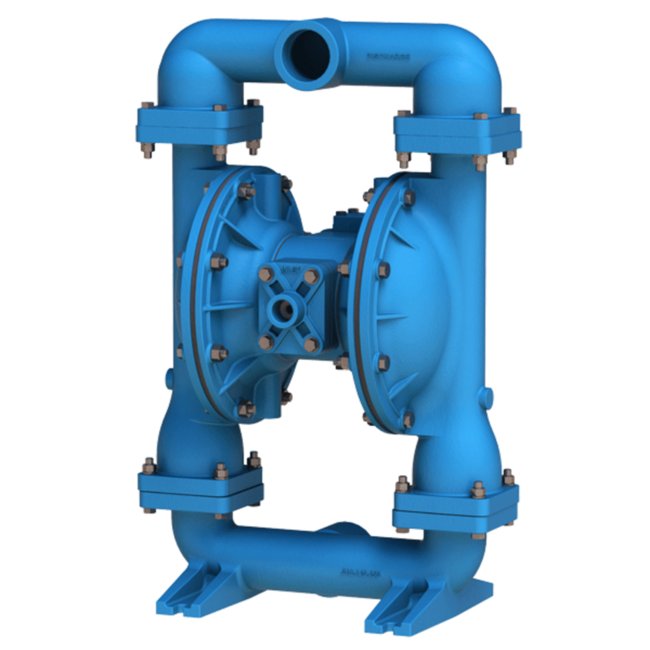

S20 Metallic Ball Valve Diaphragm Pump

S20 Metallic Ball Valve Diaphragm Pump

PRO-3b9901

Reliable S20 Metallic Ball Valve Diaphragm Pump for moderate abrasives & solids. Gas AOD design, stainless steel construction, 150 gpm flow rate.

$1,999.99
$1,999.99
Sale

Initiate Order

S20 Metallic Ball Valve Diaphragm Pump

S20 Metallic Ball Valve Diaphragm Pump

$1,999.99

Quantity: 1

Claim Your Seller Account

S20 Metallic Ball Valve Diaphragm Pump

S20 Metallic Ball Valve Diaphragm Pump

$1,999.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The S20 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand use with portable moderately abrasive fluids and suspended solids. Featuring TPE and PTFE options in diaphragms and check valves, it ensures reliable performance. This pump offers a Type Air Powered Double Diaphragm design, with stainless steel wetted M.O.C., PTFE elastomers, and a ball check valve seat. With a robust construction and a max flow rate of 150 gpm, it meets the needs of industrial settings and municipal applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

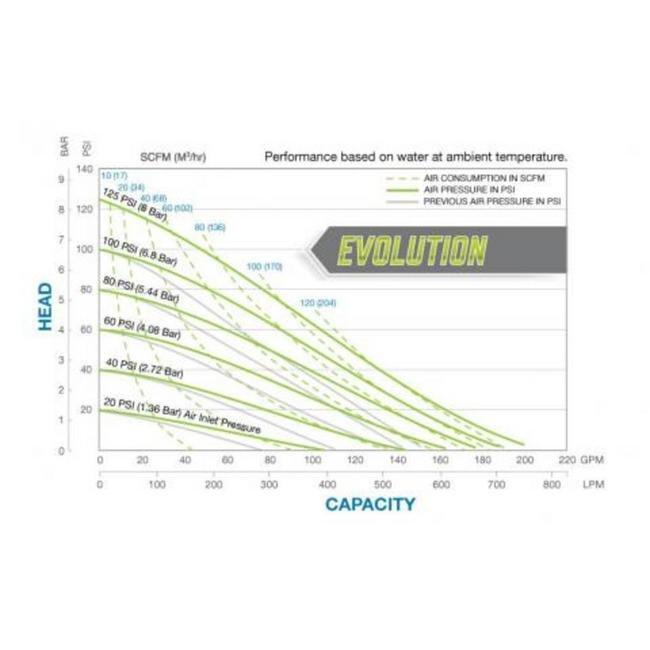

Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Elastomers
PTFE - Neoprene/PTFE
Specifications Height
26 in | 669.54 mm
Specifications Intake Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Length
17 in | 432.56 mm
Specifications Max Flow Rate
0 - 150 gpm | 0 - 567 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS20B1SGTANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
95 lbs | 43 kg
Specifications Wetted Moc
Stainless Steel
Specifications Width
13 in | 321.56 mm
Category 6
Standard Duty Diaphragm Pumps
