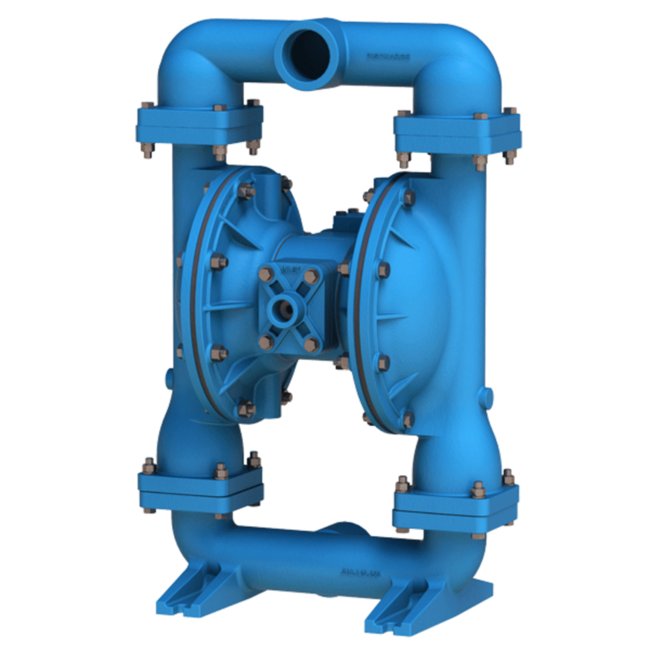

S20 Metallic Ball Valve Diaphragm Pump

Name: S20 Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-8bd58a
Price: 1899.99 USD
Availability: OutOfStock

SKU:PRO-8bd58a

Reliable S20 Metallic Ball Valve Diaphragm Pump for intermittent applications. Ideal for wastewater handling. TPE and PTFE options available.

$1,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S20 Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand applications, handling portable moderately abrasive fluids and suspended solids. Featuring TPE and PTFE diaphragm and check valve options, it ensures reliable performance. With solid construction and efficient design, this pump is ideal for wastewater applications in industrial settings, meeting the needs of both consumer and institutional buyers.

Product Specifications

Curves 0

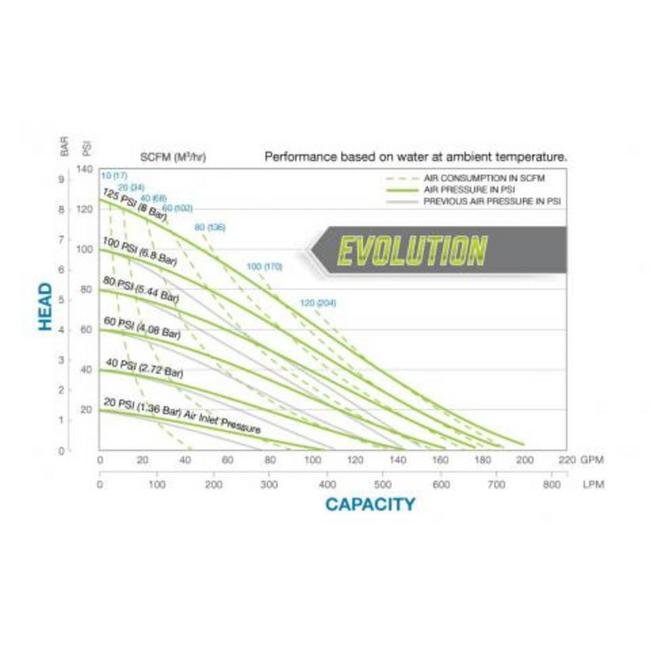

Performance Curves

Specifications Check Valve Seat

EPDM

Specifications Check Valve Type

Ball

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

2" BSPT Tapered | 2" NPT

Specifications Displacement Per Stroke

0.42 gal | 1.59 lit

Specifications Elastomers

Santoprene/Santoprene

Specifications Height

26 in | 669.54 mm

Specifications Intake Pipe Size Internal

2" BSPT Tapered | 2" NPT

Specifications Length

17 in | 432.56 mm

Specifications Max Flow Rate

0 - 150 gpm | 0 - 567 lpm

Specifications Non Wetted Material

Painted Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS20B1A1EANS000SP

Specifications Solids Handling

0.25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

53 lbs | 24 kg

Specifications Wetted Moc

Aluminum

Specifications Width

13 in | 321.56 mm
