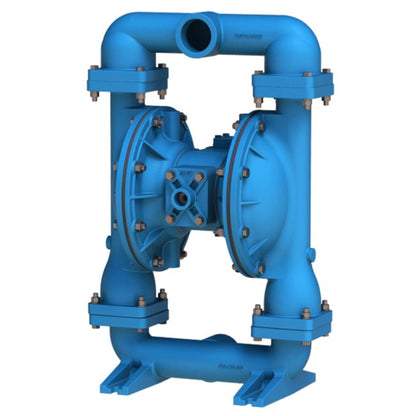

S20 Top Discharge Metallic Ball Valve Diaphragm Pump
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
SKU:PRO-0a6d99
Versatile S20 Evolution Metallic Diaphragm Pump for abrasive fluids and solids, featuring stainless steel construction and 150 gpm flow rate.
Regular price
$5,699.00
Regular price
Sale price
$5,699.00
Unit price
per
Initiate Order
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
$5,699.00
Quantity: 1
Claim Your Seller Account
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
$5,699.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S20 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand pumping of moderately abrasive fluids and suspended solids. With options for TPE and PTFE diaphragms and check valves, it ensures versatile compatibility. This pump offers a 2" NPT inlet and outlet, 0.25" solids handling capacity, and a maximum flow rate of 150 gpm. Built with stainless steel wetted components and weighing 114 lbs, it combines durability with efficient performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

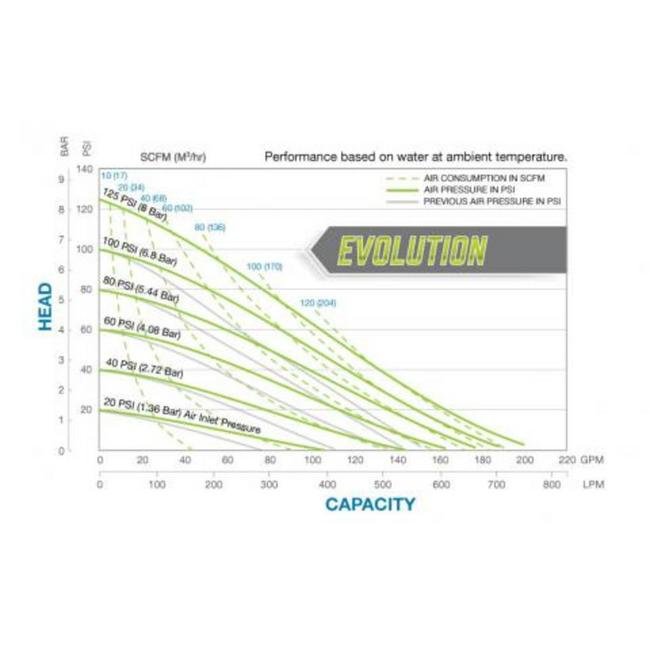

Performance Curves
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Height
26 in | 669.54 mm
Specifications Inlet Size
2 NPT Threads in | 51 NPT Threads mm
Specifications Length
17 in | 432.56 mm
Specifications Max Flow Rate
150 gpm | 9000.00 gph | 567.81 lpm | 34068.71 lph
Specifications Non Wetted Material
Aluminum
Specifications Outlet Size
2 NPT Threads in | 51 NPT Threads mm
Specifications Sku
WRS20B1SCVANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Weight
114 lbs | 51.71 kg
Specifications Wetted Moc
Stainless Steel
Specifications Width
13 in | 321.56 mm
Category 6
Standard Duty Diaphragm Pumps
