S20 Top Discharge Metallic Ball Valve Diaphragm Pump
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
SKU:PRO-5a3618
Reliable S20 Evolution Metallic Ball Valve Pump for moderate abrasives. Stainless steel build with TPE/PTFE options for enhanced durability.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

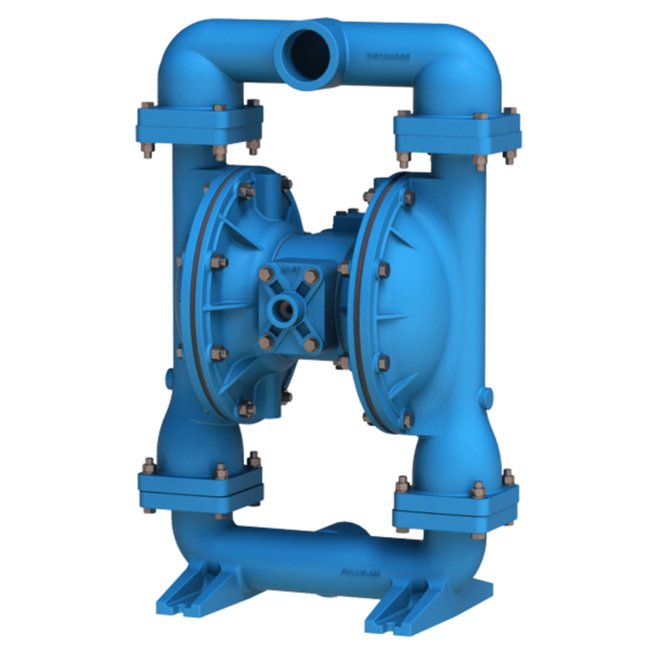

The S20 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand, portable handling of moderately abrasive fluids and suspended solids. With TPE and PTFE options for diaphragms and check valves, this pump ensures durable performance. Featuring a stainless steel wetted M.O.C., ball check valve type, and Neoprene elastomers, it provides reliable operation. Ideal for wastewater applications, this pump offers a max flow rate of 150 gpm and can handle solids up to 0.25 inches. Recommended accessories available separately.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

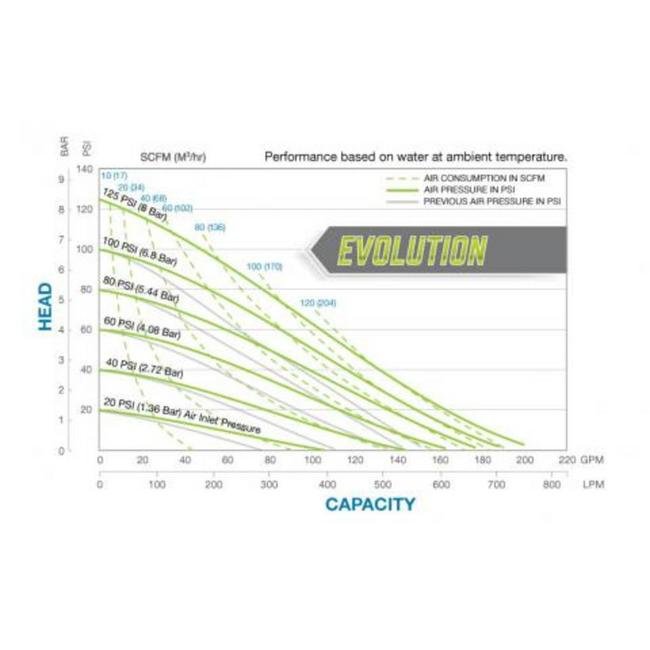

Performance Curves
Specifications Check Valve Seat
Neoprene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Elastomers
Neoprene/Neoprene
Specifications Height
26 in | 669.54 mm
Specifications Intake Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Length
17 in | 432.56 mm
Specifications Max Flow Rate
0 - 150 gpm | 0 - 567 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS20B1SNNANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
95 lbs | 43 kg
Specifications Wetted Moc
Stainless Steel
Specifications Width
13 in | 321.56 mm
Category 6
Standard Duty Diaphragm Pumps
