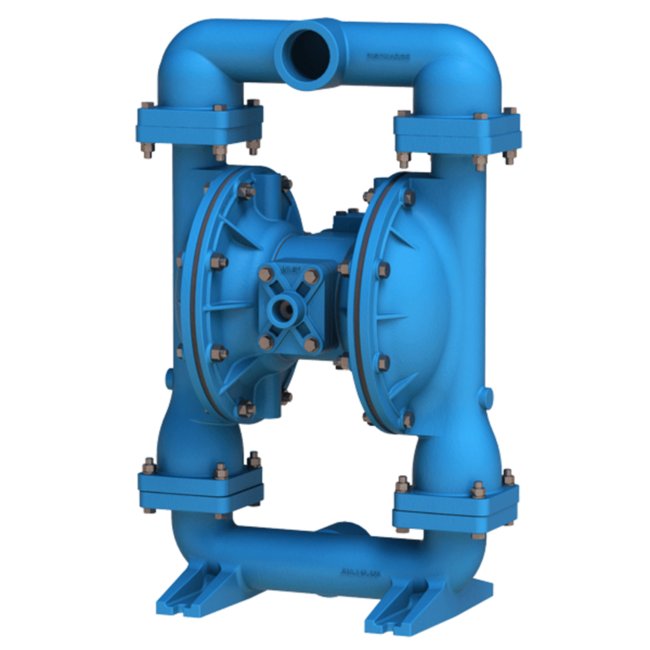

S20 Top Discharge Metallic Ball Valve Diaphragm Pump
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
SKU:PRO-69a342
Reliable S20 Top Discharge Metallic Ball Valve Diaphragm Pump for moderatly abrasive fluids. Options in TPE and PTFE. Max flow rate: 150 gpm.
Regular price
$1,999.99
Regular price
Sale price
$1,999.99
Unit price
per
Initiate Order
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
$1,999.99
Quantity: 1
Claim Your Seller Account
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
$1,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S20 Top Discharge Metallic Ball Valve Diaphragm Pump is a reliable solution for handling moderately abrasive fluids and suspended solids. Featuring options in TPE and PTFE diaphragms and check valves, this pump is designed for intermittent and on-demand applications. With a robust construction using cast iron for wetted parts and aluminum for non-wetted components, this pump ensures durability and efficient operation. The 2-inch NPT inlet and outlet, along with a maximum flow rate of 150 gpm, make it ideal for various water and wastewater applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

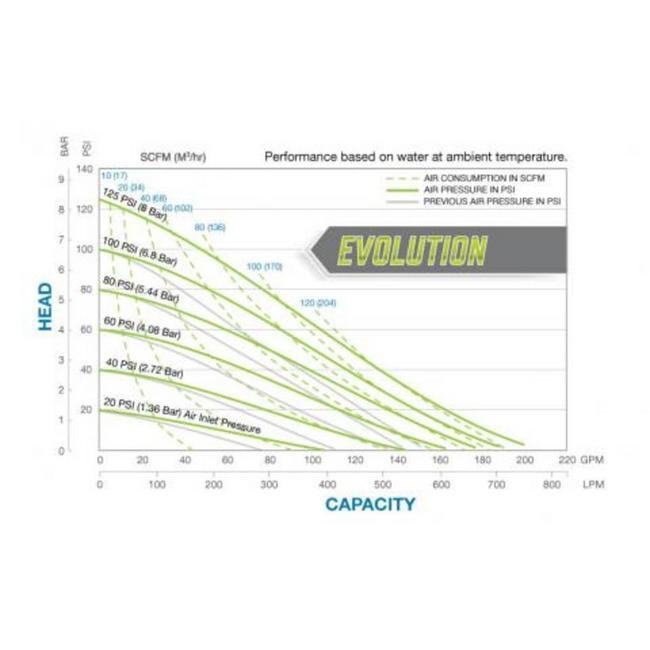

Performance Curves
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Height
26 in | 669.54 mm
Specifications Inlet Size
2 NPT Threads in | 51 NPT Threads mm
Specifications Length
17 in | 432.56 mm
Specifications Max Flow Rate
150 gpm | 9000.00 gph | 567.81 lpm | 34068.71 lph
Specifications Non Wetted Material
Aluminum
Specifications Outlet Size
2 NPT Threads in | 51 NPT Threads mm
Specifications Sku
WRS20B1ICVANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Weight
129 lbs | 58.51 kg
Specifications Wetted Moc
Cast Iron
Specifications Width
13 in | 321.56 mm
Category 6
Standard Duty Diaphragm Pumps
