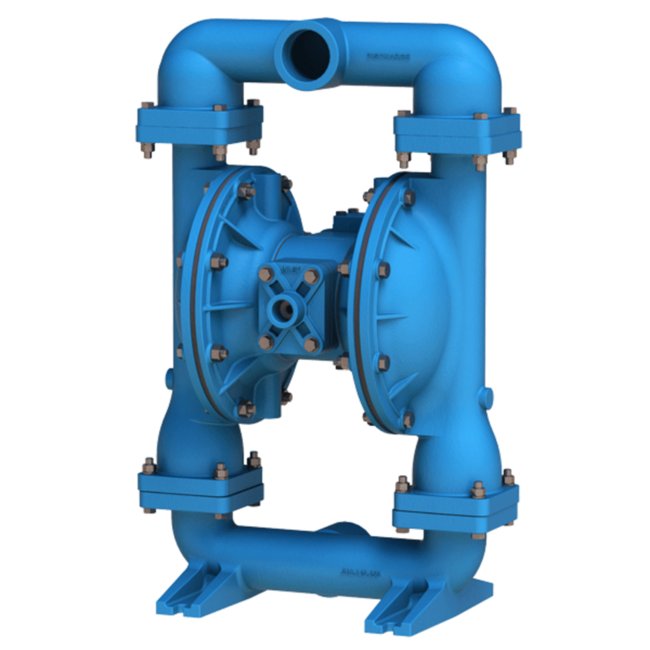

S20 Top Discharge Metallic Ball Valve Diaphragm Pump
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
SKU:PRO-e9284e
Reliable S20 Evolution Metallic Ball Valve Diaphragm Pump for waste water applications. Offers durable construction with Buna elastomers and ball check valve type.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
$1,599.99
Quantity: 1
Claim Your Seller Account
S20 Top Discharge Metallic Ball Valve Diaphragm Pump
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S20 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand use with portable moderately abrasive fluids and suspended solids. Available with TPE and PTFE diaphragm and check valve options, this pump delivers reliable performance. With a sturdy construction featuring Buna elastomers, cast iron wetted M.O.C., and ball check valve type, it ensures durability and efficient solids handling. Ideal for waste water applications, this pump meets rigorous institutional standards for standard duty diaphragm pumps.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

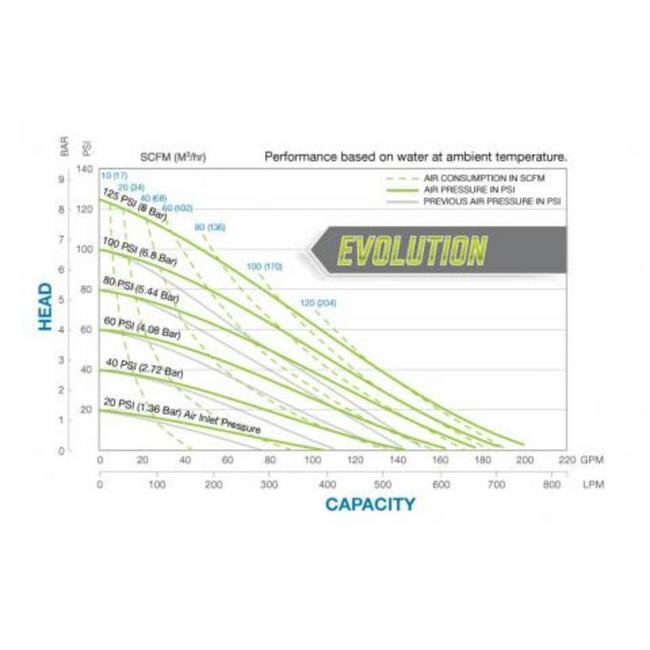

Performance Curves
Specifications Check Valve Seat
Buna
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Elastomers
Buna/Buna
Specifications Height
26 in | 669.54 mm
Specifications Intake Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Length
17 in | 432.56 mm
Specifications Max Flow Rate
0 - 150 gpm | 0 - 567 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS20B1IBBANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
93 lbs | 42 kg
Specifications Wetted Moc
Cast Iron
Specifications Width
13 in | 321.56 mm
Category 6
Standard Duty Diaphragm Pumps
