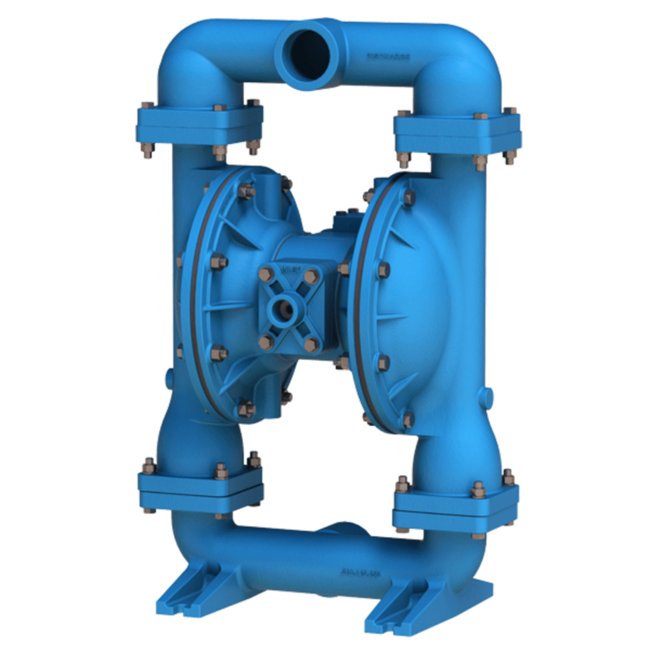

S20 Top Discharge Metallic Ball Valve Pump - Air Powered Double Diaphragm Pump
S20 Top Discharge Metallic Ball Valve Pump - Air Powered Double Diaphragm Pump
SKU:PRO-779419
Highly durable S20 Top Discharge Metallic Ball Valve Pump for reliable intermittent pumping of abrasive fluids and solids.
Regular price
$1,099.99
Regular price
Sale price
$1,099.99
Unit price
per
Initiate Order
S20 Top Discharge Metallic Ball Valve Pump - Air Powered Double Diaphragm Pump
$1,099.99
Quantity: 1
Claim Your Seller Account
S20 Top Discharge Metallic Ball Valve Pump - Air Powered Double Diaphragm Pump
$1,099.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S20 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand, portable pumping of moderately abrasive fluids and suspended solids. Equipped with TPE and PTFE diaphragms and check valves, this pump ensures reliable performance. With a max flow rate of 150 gpm and solid handling capability of up to 0.25 inches, it is ideal for standard duty applications. The aluminum wetted M.O.C. and Neoprene elastomers guarantee durability and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

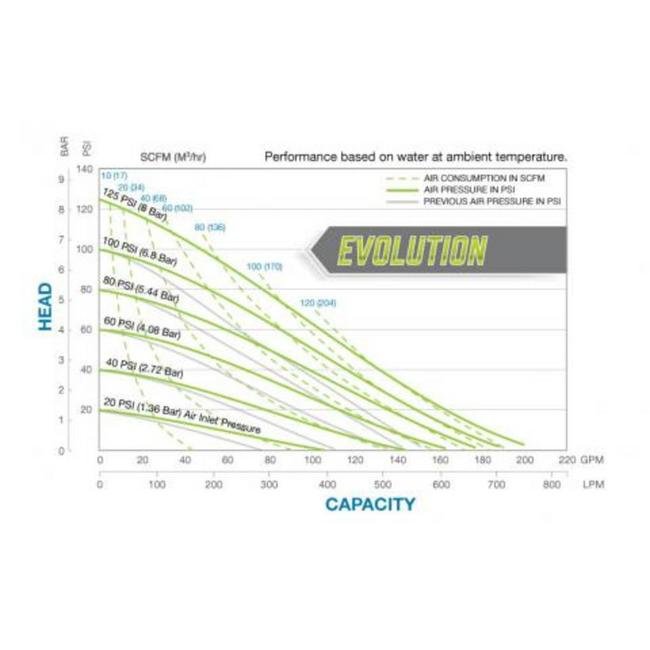

Performance Curves
Specifications Check Valve Seat
Neoprene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Displacement Per Stroke
0.42 gal | 1.59 lit
Specifications Elastomers
Neoprene/Neoprene
Specifications Height
26 in | 669.54 mm
Specifications Intake Pipe Size Internal
2" BSPT Tapered | 2" NPT
Specifications Length
17 in | 432.56 mm
Specifications Max Flow Rate
0 - 150 gpm | 0 - 567 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS20B1ANNANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
53 lbs | 24 kg
Specifications Wetted Moc
Aluminum
Specifications Width
13 in | 321.56 mm
Category 6
Standard Duty Diaphragm Pumps
