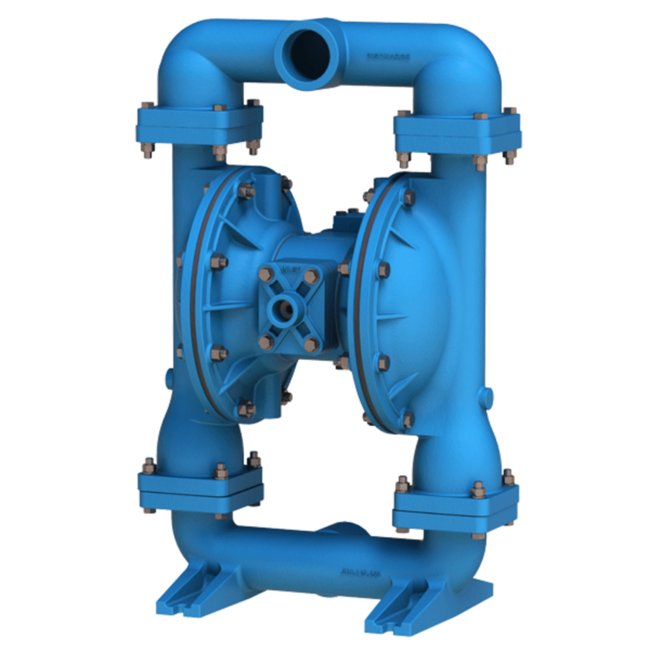

S20 Top Discharge Metallic Ball Valve Pump - Standard Duty Diaphragm Pump

Name: S20 Top Discharge Metallic Ball Valve Pump - Standard Duty Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-526926
Price: 1399.99 USD
Availability: OutOfStock

SKU:PRO-526926

Reliable S20 Metallic Ball Valve Pump for abrasive fluids. Aluminum construction with EPDM/EPDM elastomers. Max flow rate 150 gpm. Ideal for multiple applications.

$1,399.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S20 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand use with portable applications handling moderately abrasive fluids and suspended solids. Featuring TPE and PTFE diaphragms and check valves, this pump offers reliable performance. With a sturdy aluminum construction and EPDM/EPDM elastomers, it ensures durability and efficient operations. Solids handling up to 0.25 inches, a max flow rate of 150 gpm, and compliance with industry standards make it a versatile choice for various applications.

Product Specifications

Curves 0

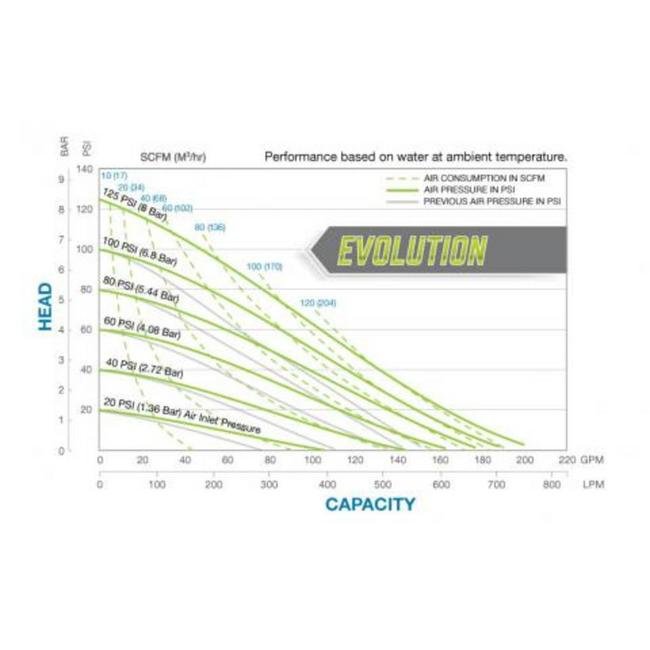

Performance Curves

Specifications Check Valve Seat

EPDM

Specifications Check Valve Type

Ball

Specifications Customs Code

ECCN Code EAR99

Specifications Design Level

Specifications Discharge Pipe Size Internal

2" BSPT Tapered | 2" NPT

Specifications Displacement Per Stroke

0.42 gal | 1.59 lit

Specifications Elastomers

EPDM/EPDM

Specifications Height

26 in | 669.54 mm

Specifications Intake Pipe Size Internal

2" BSPT Tapered | 2" NPT

Specifications Length

17 in | 432.56 mm

Specifications Max Flow Rate

0 - 150 gpm | 0 - 567 lpm

Specifications Non Wetted Material

Painted Aluminum

Specifications Porting Position

NPT Threads

Specifications Pump Style

Standard

Specifications Sku

WRS20B1AEEANS000SP

Specifications Solids Handling

0.25 in | 6 mm

Specifications Type

Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty

Specifications Weight

53 lbs | 24 kg

Specifications Wetted Moc

Aluminum

Specifications Width

13 in | 321.56 mm
