S20 Top Discharge Non-Metallic Ball Valve Diaphragm Pump

Name: S20 Top Discharge Non-Metallic Ball Valve Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-ac33ba
Price: 2799.99 USD
Availability: OutOfStock

SKU:PRO-ac33ba

Versatile S20 Diaphragm Pump for corrosive fluids, features TPE/PTFE construction, 160 gpm flow rate, and PVDF wetted material.

$2,799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S20 Top Discharge Non-Metallic Ball Valve Diaphragm Pump is designed to excel in handling highly corrosive fluids, low abrasive fluids, and suspended solids. Constructed with TPE and PTFE options, it offers resilience against challenging environments. With a maximum flow rate of 160 gpm and solid handling capability of 0.66 inches, this pump is ideal for waste water applications. The PVDF wetted material and 40% glass-filled polypropylene non-wetted material ensure durability and chemical resistance.

Product Specifications

Curves 0

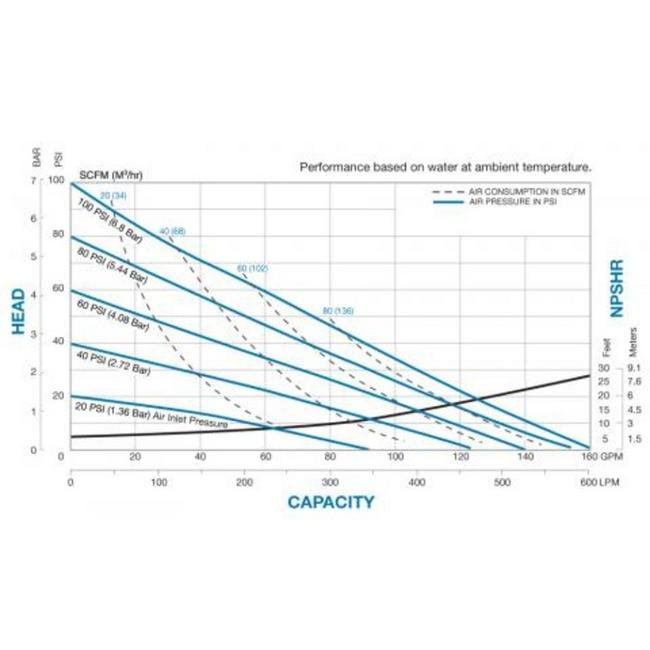

Performance Curves

Specifications Customs Code

HS Code 84131900ECCN Code EAR99

Specifications Displacement Per Stroke

0.46 gal | 1.74 lit

Specifications Height

32 in | 819.15 mm

Specifications Inlet Size

2 Unverisal Flange ANSI DIN in | 51 Unverisal Flange ANSI DIN mm

Specifications Length

24 in | 604.77 mm

Specifications Max Flow Rate

160 gpm | 9600.00 gph | 605.67 lpm | 36339.96 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS20B3K1KPUS000SP

Specifications Solids Handling

0.66 in | 17 mm

Specifications Weight

117 lbs | 53.07 kg

Specifications Wetted Moc

PVDF

Specifications Width

13 in | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps

S20 Top Discharge Non-Metallic Ball Valve Diaphragm Pump
