S20 Top Discharge Non-Metallic Ball Valve Pump - Corrosion-Resistant Diaphragm Pump

Name: S20 Top Discharge Non-Metallic Ball Valve Pump - Corrosion-Resistant Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-85dccb
Price: 2999.99 USD
Availability: OutOfStock

SKU:PRO-85dccb

Powerful and corrosion-resistant pump for highly corrosive fluids. Perfect for wastewater applications.

$2,999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

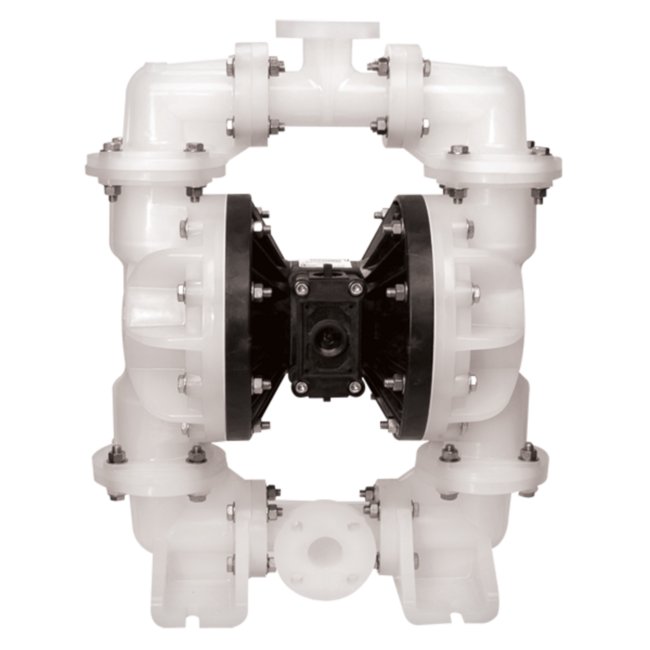

The S20 Top Discharge Non-Metallic Ball Valve Pump is designed for handling highly corrosive fluids, intermittent use, and low abrasive suspended solids. Constructed with TPE and PTFE materials, it offers exceptional durability. With an inlet size of 2 inches, solids handling capacity of 0.46 inches, and a maximum flow rate of 160 gpm, this pump is ideal for wastewater applications. Recommended accessories available separately for enhanced performance.

Product Specifications

Curves 0

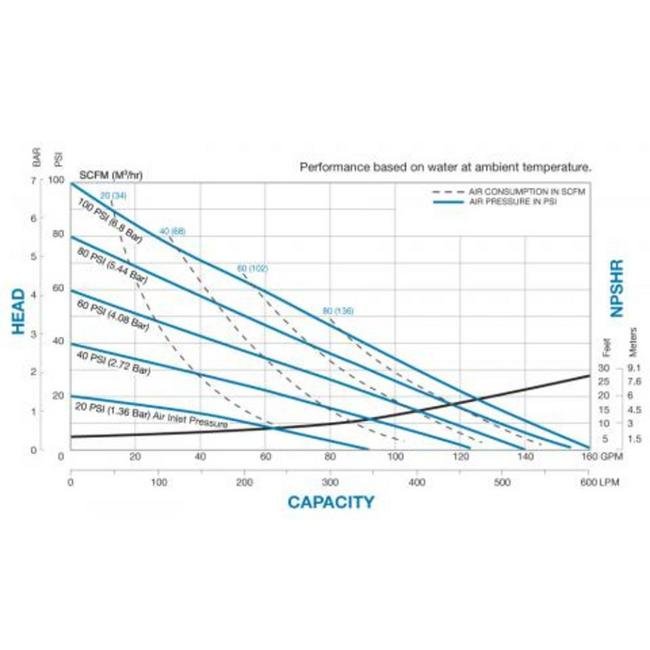

Performance Curves

Specifications Customs Code

ECCN Code 2B350.i

Specifications Displacement Per Stroke

0.46 gal | 1.74 lit

Specifications Height

32 in | 819.15 mm

Specifications Inlet Size

2 Unverisal Flange ANSI DIN in | 51 Unverisal Flange ANSI DIN mm

Specifications Length

24 in | 604.77 mm

Specifications Max Flow Rate

160 gpm | 9600.00 gph | 605.67 lpm | 36339.96 lph

Specifications Non Wetted Material

40 Per Cent Glass Filled Polypropylene

Specifications Sku

WRS20B3KZKPUS000SP

Specifications Solids Handling

0.46 in | 12 mm

Specifications Weight

117 lbs | 53.07 kg

Specifications Wetted Moc

Polypropylene

Specifications Width

13 in | 330.20 mm

Category 6

Standard Duty Diaphragm Pumps
