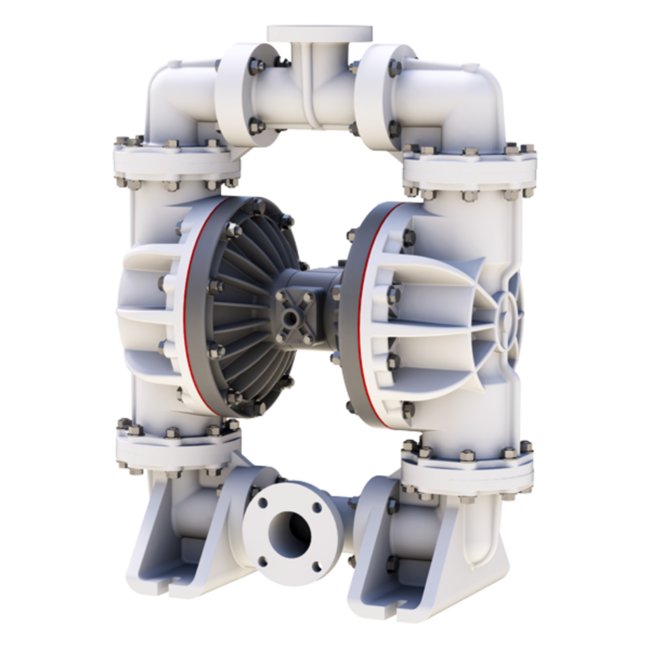

S30 3" NPT Non-Metallic Standard Duty Ball Valve Pump
S30 3" NPT Non-Metallic Standard Duty Ball Valve Pump
SKU:PRO-fc2403
High-performance Non-Metallic Standard Duty Pump for bulk chemical transfer with superior corrosion resistance and class-leading flow rate.
Regular price
$2,199.99
Regular price
Sale price
$2,199.99
Unit price
per
Initiate Order
S30 3" NPT Non-Metallic Standard Duty Ball Valve Pump
$2,199.99
Quantity: 1
Claim Your Seller Account
S30 3" NPT Non-Metallic Standard Duty Ball Valve Pump
$2,199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S30 3" NPT Non-Metallic Standard Duty Ball Valve Pump is engineered for bulk chemical transfer applications, offering corrosion-resistant Polypropylene or PVDF construction. With a class-leading maximum flow rate of 280 gpm and efficiency, it features an ESADS+ Air Distribution System, the only pump in its class with an externally serviceable air distribution system. This pump is backed by unparalleled technical support and is compatible with recommended Sandpiper® Wet End Kit and Air End Kit accessories (sold separately).
Product Specifications
Curves 0

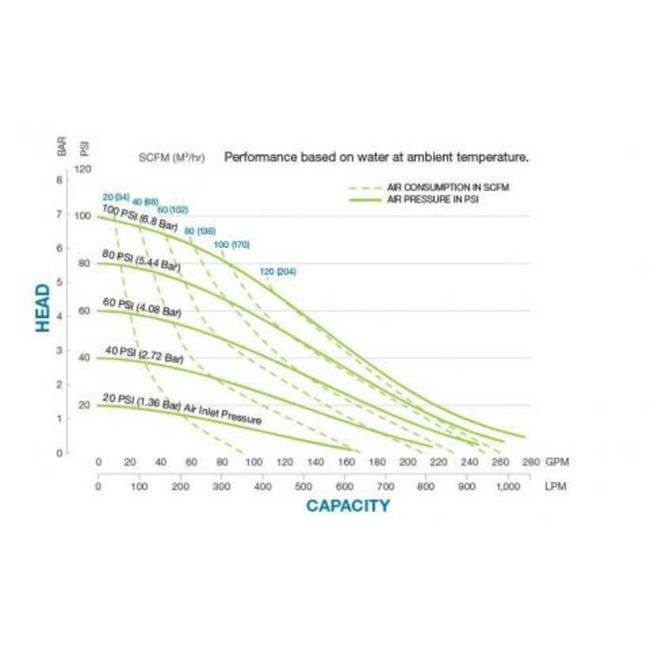

Performance Curves
Specifications Customs Code
ECCN Code EAR99
Specifications Displacement Per Stroke
1 gal | 3.79 lit
Specifications Height
3.39 ft | 41 in | 1.0328 m | 1032.76 mm
Specifications Inlet Size
3 ANSI Flange in | 76 ANSI Flange mm
Specifications Length
37 in | 3.08 ft | 940.05 mm
Specifications Max Flow Rate
280 gpm | 16800.00 gph | 1059.92 lpm | 63594.92 lph
Specifications Sku
WRS30B3P3PPAV000SP
Specifications Solids Handling
0.75 in | 19 mm
Specifications Weight
270 lbs | 122.47 kg
Specifications Width
19 in | 477.52 mm
Category 6
Standard Duty Diaphragm Pumps
