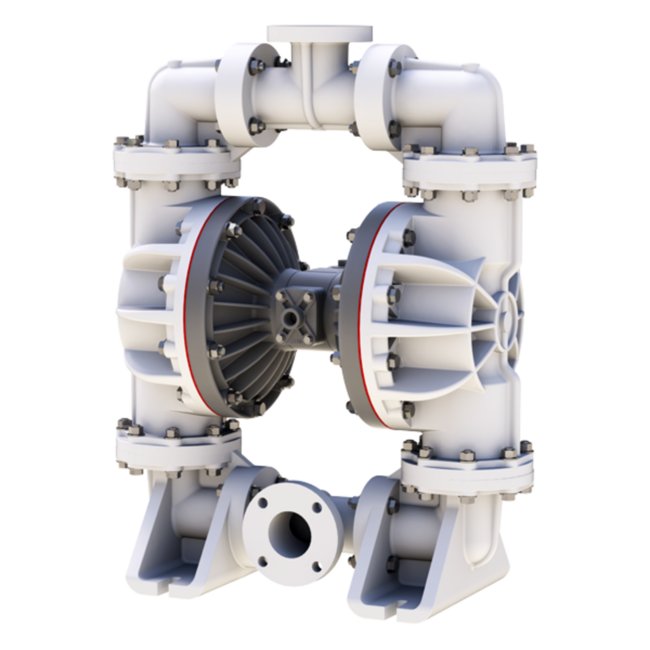

S30 3" NPT Top Discharge Non-Metallic Diaphragm Pump

Name: S30 3" NPT Top Discharge Non-Metallic Diaphragm Pump
Brand: Springer Pumps, LLC
SKU: PRO-cf8c50
Price: 2899.99 USD
Availability: OutOfStock

SKU:PRO-cf8c50

Enhance bulk chemical transfer with the S30 Non-Metallic Diaphragm Pump. Corrosion-resistant with superior efficiency and external serviceable air distribution system.

$2,899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The S30 3" NPT Top Discharge Non-Metallic Diaphragm Pump is the optimal choice for bulk chemical transfer applications. Constructed with corrosion-resistant Polypropylene or PVDF, it boasts a class-leading maximum flow rate and efficiency. The ESADS+ Air Distribution System sets it apart as the only pump in its class with an externally serviceable system. Backed by unparalleled technical support, this pump ensures reliability and performance. Accessories and kits are available separately for enhanced functionality.

Product Specifications

Curves 0

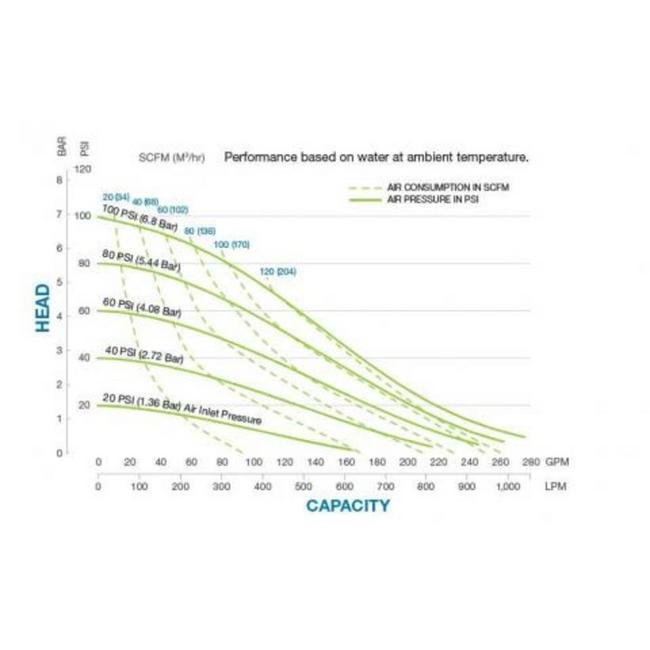

Performance Curves

Specifications Customs Code

ECCN Code EAR99

Specifications Displacement Per Stroke

1 gal | 3.79 lit

Specifications Height

3.39 ft | 41 in | 1.0328 m | 1032.76 mm

Specifications Inlet Size

3 ANSI Flange in | 76 ANSI Flange mm

Specifications Length

37 in | 3.08 ft | 940.05 mm

Specifications Max Flow Rate

280 gpm | 16800.00 gph | 1059.92 lpm | 63594.92 lph

Specifications Sku

WRS30B3P4PPAV000SP

Specifications Solids Handling

0.75 in | 19 mm

Specifications Weight

270 lbs | 122.47 kg

Specifications Width

19 in | 477.52 mm

Category 6

Standard Duty Diaphragm Pumps

S30 3" NPT Top Discharge Non-Metallic Diaphragm Pump
