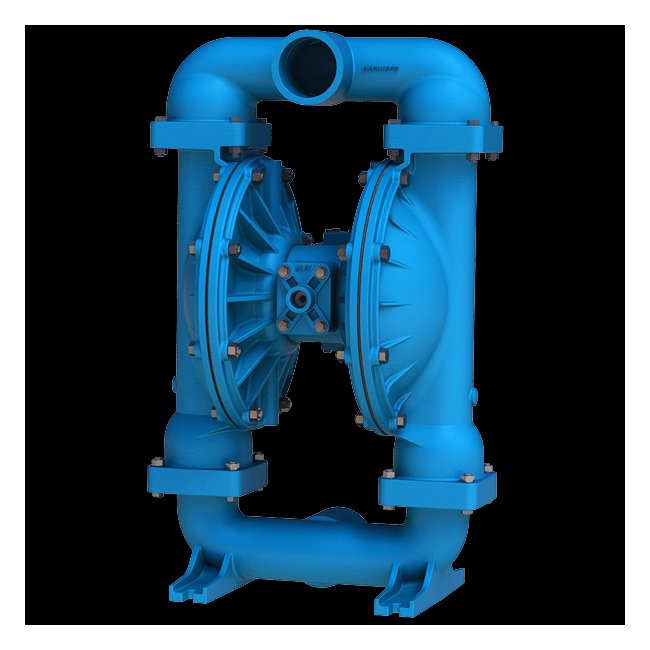

S30 Evolution Metallic Ball Valve Diaphragm Pump
S30 Evolution Metallic Ball Valve Diaphragm Pump
SKU:PRO-b17ee9
High-performance air-powered diaphragm pump for water/wastewater applications. Efficient, durable, and handles solids up to 0.25 inches.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
S30 Evolution Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
S30 Evolution Metallic Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S30 Evolution Metallic Ball Valve Diaphragm Pump is an air-powered double diaphragm pump designed for demanding applications in water and wastewater management. With a robust construction featuring a cast iron wetted M.O.C. and Viton elastomers, this pump offers reliable performance and longevity. Its ball check valve and PTFE seat ensure efficient operation while handling solids up to 0.25 inches. Ideal for standard duty diaphragm pump applications, the S30 Evolution delivers a maximum flow rate of 235 gpm, making it a dependable choice for various pumping needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
Viton®/Viton®
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
215 lbs | 98 kg
Specifications Wetted Moc
Cast Iron
Category 6
Standard Duty Diaphragm Pumps
