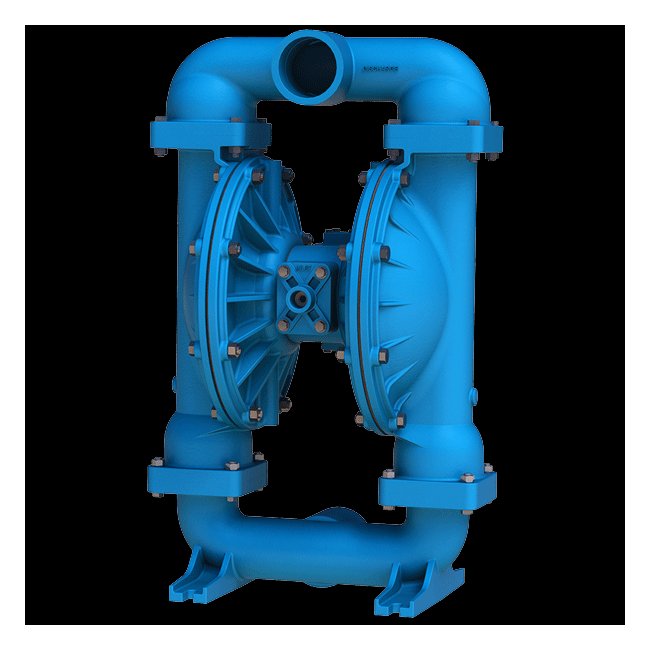

S30 Evolution Metallic Ball Valve Diaphragm Pump | Air Powered 3" AOD Pump - Standard Duty
S30 Evolution Metallic Ball Valve Diaphragm Pump | Air Powered 3" AOD Pump - Standard Duty
SKU:PRO-ee545b
Robust S30 Evolution Metallic Ball Valve Diaphragm Pump with 3" Ports, Ball Check Valve, and 0.25" Solids Handling
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
S30 Evolution Metallic Ball Valve Diaphragm Pump | Air Powered 3" AOD Pump - Standard Duty
$1,499.99
Quantity: 1
Claim Your Seller Account
S30 Evolution Metallic Ball Valve Diaphragm Pump | Air Powered 3" AOD Pump - Standard Duty
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S30 Evolution Metallic Ball Valve Diaphragm Pump is a robust air-powered double diaphragm pump designed for standard duty applications. With a solid aluminum construction and Viton elastomers, this pump offers reliable performance and durability. Featuring 3" BSPT/NPT intake and discharge ports, a ball check valve, and a PTFE check valve seat, it handles solids up to 0.25 inches effortlessly. Delivering a displacement of 0.94 gallons per stroke and a max flow rate of 235 gpm, this pump is ideal for waste water handling. The S30 Evolution Pump complies with industry standards for quality and performance, making it a trusted choice for both consumer and institutional users.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
Viton®/Viton®
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
116 lbs | 53 kg
Specifications Wetted Moc
Aluminum
Category 6
Standard Duty Diaphragm Pumps
