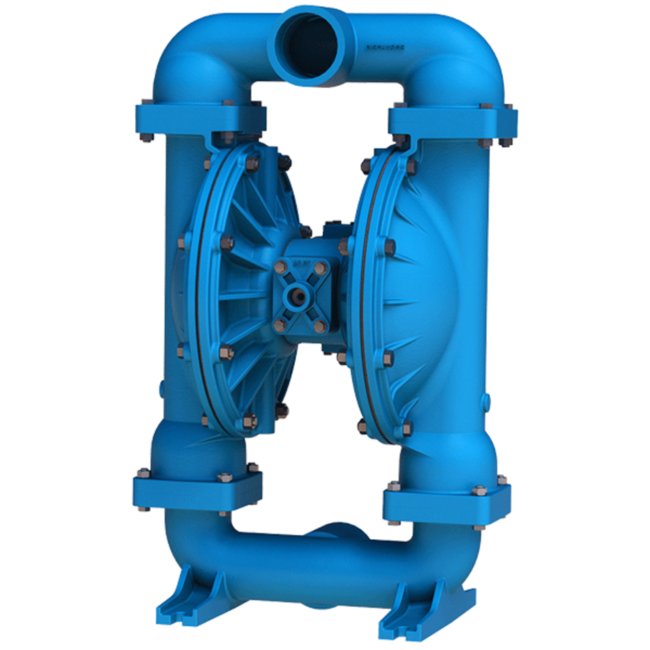

S30 Evolution Metallic Ball Valve Diaphragm Pump with Top Discharge
S30 Evolution Metallic Ball Valve Diaphragm Pump with Top Discharge
SKU:PRO-da5248
S30 Evolution Metallic Ball Valve Diaphragm Pump for efficient fluid handling. Ideal for water and wastewater applications.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
S30 Evolution Metallic Ball Valve Diaphragm Pump with Top Discharge
$1,799.99
Quantity: 1
Claim Your Seller Account
S30 Evolution Metallic Ball Valve Diaphragm Pump with Top Discharge
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S30 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand pumping of moderately abrasive fluids and suspended solids, ideal for water, wastewater, sump, and utility applications. With options for TPE and PTFE diaphragms and check valves, this pump ensures efficient and reliable performance. Its durable Cast Iron construction and 3 NPT inlet/outlet sizes facilitate easy installation and maintenance. The S30 pump boasts a displacement of 0.94 gal per stroke, a maximum flow rate of 235 gpm, and can handle solids up to 0.38 inches. Accessories and kits available separately.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Height
32 in | 814.83 mm
Specifications Inlet Size
3 NPT Threads in | 76 NPT Threads mm
Specifications Length
20 in | 499.11 mm
Specifications Max Flow Rate
235 gpm | 14100.00 gph | 889.57 lpm | 53374.31 lph
Specifications Non Wetted Material
Aluminum
Specifications Outlet Size
3 NPT Threads in | 76 NPT Threads mm
Specifications Sku
WRS30B1I2TANS000SP
Specifications Solids Handling
0.38 in | 10 mm
Specifications Weight
215 lbs | 97.52 kg
Specifications Wetted Moc
Cast Iron
Specifications Width
16 in | 400.05 mm
Category 6
Standard Duty Diaphragm Pumps
