S30 Evolution Metallic Standard Duty Diaphragm Pump
S30 Evolution Metallic Standard Duty Diaphragm Pump
SKU:PRO-e09976
Versatile standard duty diaphragm pump for portable applications with moderate abrasives and solids. Contact us for kit details.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
S30 Evolution Metallic Standard Duty Diaphragm Pump
$1,399.99
Quantity: 1
Claim Your Seller Account
S30 Evolution Metallic Standard Duty Diaphragm Pump
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

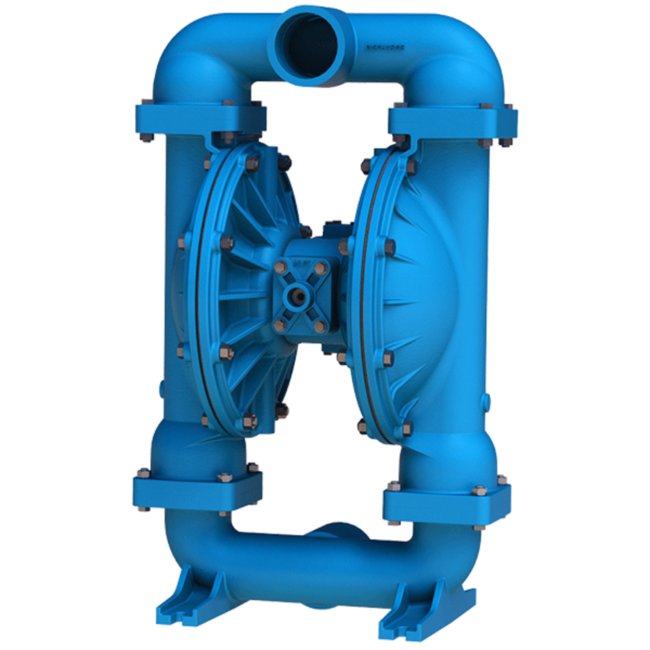

The S30 Evolution Metallic Standard Duty Diaphragm Pump is designed for intermittent/on-demand use with portable applications handling moderately abrasive fluids and suspended solids. Constructed with Aluminum, Cast Iron, Stainless Steel, and non-metallic materials such as PTFE, Polypropylene, and PVDF, it features elastomer TPE and PTFE options in diaphragms and check valves. With an inlet/outlet size of 3 NPT, solids handling of 0.38 in, and a weight of 122 lbs, this pump offers a max flow rate of 0.94 gpm. Contact us for Wet End Kit and Air End Kit information.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Specifications Check Valve Seat
EPDM
Specifications Customs Code
HS Code 84131900
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Height
32 in | 814.83 mm
Specifications Inlet Size
3 NPT in | 76 NPT mm
Specifications Length
20 in | 499.11 mm
Specifications Max Flow Rate
0.94 gpm | 56.40 gph | 3.56 lpm
Specifications Non Wetted Material
Aluminum & SS Hardware
Specifications Outlet Size
3 NPT in | 76 NPT mm
Specifications Sku
WRS30B1A1EYNS000SP
Specifications Solids Handling
0.38 in | 10 mm
Specifications Weight
122 lbs | 55.34 kg
Specifications Wetted Moc
Aluminum
Specifications Width
17 in | 424.69 mm
Category 6
Standard Duty Diaphragm Pumps
