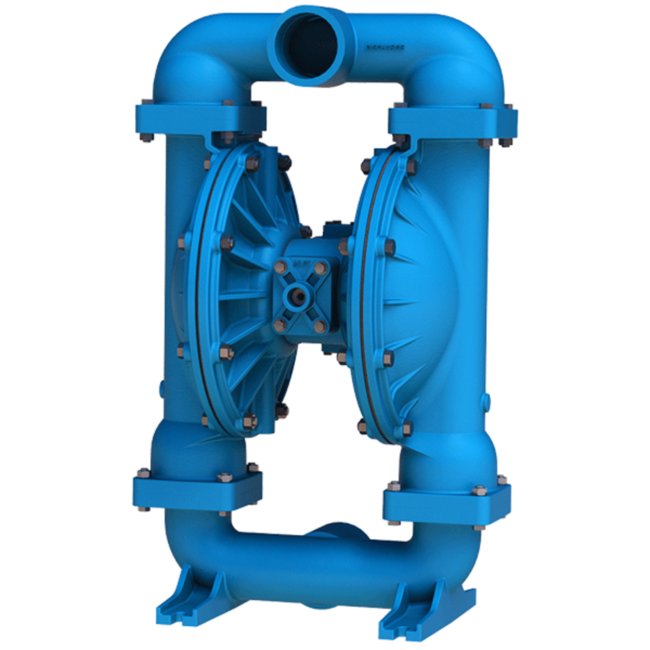

• S30 Metallic Ball Valve Diaphragm Pump - Image 1
  • S30 Metallic Ball Valve Diaphragm Pump - Image 2
1 2
Springer Pumps, LLC →

S30 Metallic Ball Valve Diaphragm Pump

S30 Metallic Ball Valve Diaphragm Pump

PRO-266ab0

Reliable S30 Metallic Ball Valve Diaphragm Pump for abrasive fluids & solids, featuring ball check valve & PTFE elastomers.

$2,599.99
$2,599.99
Sale

Initiate Order

S30 Metallic Ball Valve Diaphragm Pump

S30 Metallic Ball Valve Diaphragm Pump

$2,599.99

Quantity: 1

Claim Your Seller Account

S30 Metallic Ball Valve Diaphragm Pump

S30 Metallic Ball Valve Diaphragm Pump

$2,599.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The S30 Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand applications, making it ideal for portable moderately abrasive fluids and suspended solids. With options for TPE and PTFE diaphragms and check valves, this pump offers reliable performance. It features a ball check valve, aluminum construction, and PTFE elastomers for durability and chemical resistance. The pump is compliant with Federal procurement standards and meets industry-specific certifications for quality assurance.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0
Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
PTFE - Neoprene/PTFE
Specifications Height
32 in | 814.83 mm
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Length
20 in | 499.11 mm
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS30B1AGTANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
116 lbs | 53 kg
Specifications Wetted Moc
Aluminum
Specifications Width
16 in | 400.05 mm
Category 6
Standard Duty Diaphragm Pumps
