S30 Metallic Top Discharge Ball Valve Diaphragm Pump
S30 Metallic Top Discharge Ball Valve Diaphragm Pump
SKU:PRO-488cf7
Reliable S30 Metallic Top Discharge Ball Valve Pump for moderate abrasives, suspended solids, and portable use.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
S30 Metallic Top Discharge Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Claim Your Seller Account
S30 Metallic Top Discharge Ball Valve Diaphragm Pump
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

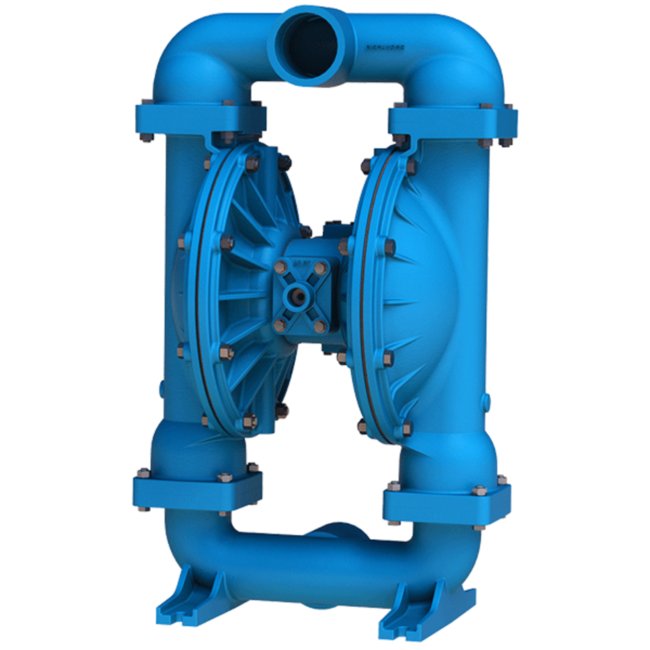

The S30 Metallic Top Discharge Ball Valve Diaphragm Pump is designed for intermittent and portable use with moderately abrasive fluids and suspended solids. Built for durability, it offers TPE and PTFE options in diaphragms and check valves, ensuring reliable performance. With a maximum flow rate of 235 gpm and a solid handling capacity of 0.25 inches, this pump is ideal for standard duty applications in water, wastewater, sump, and utility systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Specifications Check Valve Seat
Neoprene
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
Neoprene/Neoprene
Specifications Height
32 in | 814.83 mm
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Length
20 in | 499.11 mm
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS30B1ANNANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
116 lbs | 53 kg
Specifications Wetted Moc
Aluminum
Specifications Width
16 in | 400.05 mm
Category 6
Standard Duty Diaphragm Pumps
