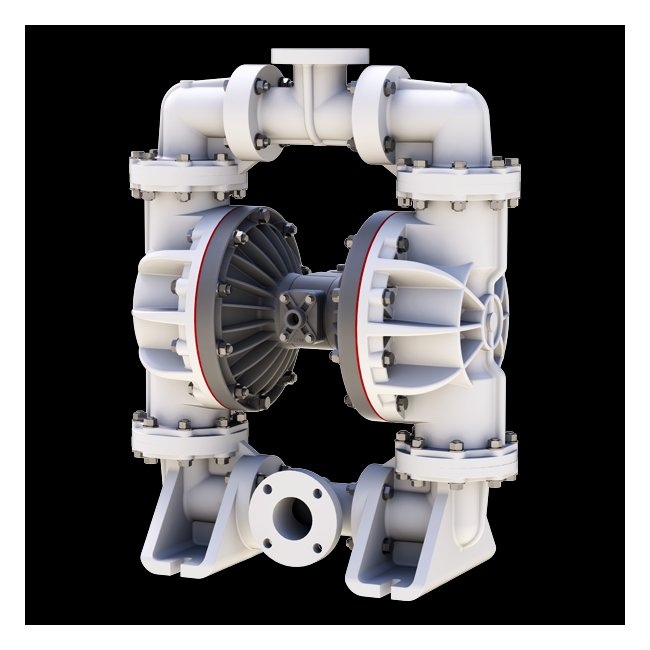

The S30 Non-Metallic Ball Valve Diaphragm Pump is a premium choice for water and wastewater handling. Featuring a robust design with 3" ANSI Flange inlet and outlet sizes, it offers efficient 0.90 gal displacement per stroke and can handle solids up to 0.71 inches. With Polypropylene and PVDF wetted parts, this pump ensures chemical resistance and durability. The pump design includes Ball Check Valves and PTFE elastomers for reliable performance. Ideal for waste water applications, this pump meets stringent industry standards for quality and performance.
Product Specifications
Specifications Check Valve Seat
Polypropylene | PVDF
Specifications Check Valve Type
Ball
Specifications Design Level
2
Specifications Displacement Per Stroke
0.90 gal | 3.41 lit
Specifications Elastomers
PTFE Pumping, PTFE-Santoprene Backup Driver/PTFE
Specifications Inlet Size
3" ANSI Flange | 80 mm DIN Flange
Specifications Max Flow Rate
0 - 238 gpm | 0 - 901 lpm
Specifications Non Wetted Material
Epoxy Coated Aluminum with PTFE Coated Hardware | Painted Aluminum | Painted Aluminum PTFE | PTFE Coated Aluminum | PTFE Coated Aluminum with PTFE Coated Hardware
Specifications Outlet Size
3" ANSI Flange | 80 DIN Flange
Specifications Porting Position
Bottom Dual Porting (ANSI) | DIN Flange | Dual Porting (ANSI) | Top Dual Porting (ANSI)
Specifications Pump Style
Containment Duty with Electronic Leak Detection (110V) | Containment Duty with Electronic Leak Detection (220V) | Containment Duty with Mechanical Leak Detection
Specifications Solids Handling
0.71 in | 18 mm
Specifications Type
Air Powered Double Diaphragm Pump
Specifications Wetted Moc
Polypropylene | PVDF
Category 6
Standard Duty Diaphragm Pumps
