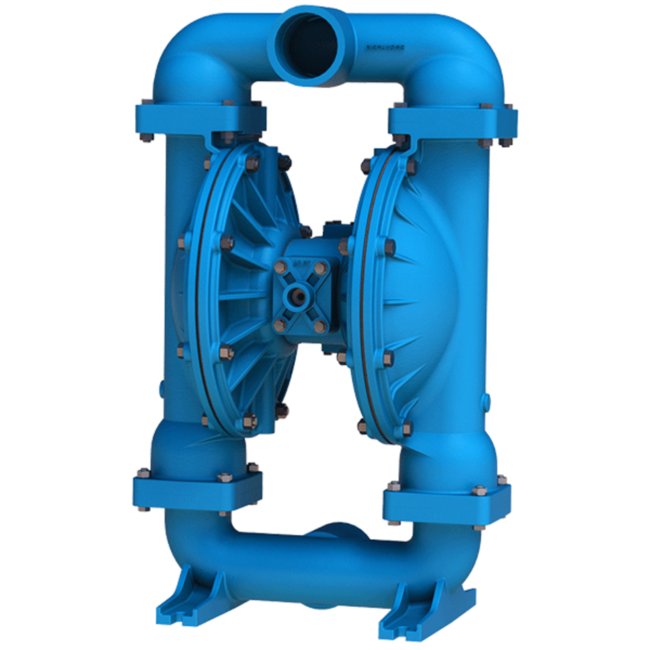

S30 Top Discharge Metallic Ball Valve Pump
S30 Top Discharge Metallic Ball Valve Pump
SKU:PRO-146a58
Reliable S30 Evolution Metallic Ball Valve Pump for moderate abrasives & solids, EPDM/PTFE options, ideal for standard duty applications.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
S30 Top Discharge Metallic Ball Valve Pump
$2,799.99
Quantity: 1
Claim Your Seller Account
S30 Top Discharge Metallic Ball Valve Pump
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S30 Top Discharge Metallic Ball Valve Pump from the S30 Evolution series is a reliable solution for handling moderately abrasive fluids and suspended solids. Featuring TPE and PTFE options in diaphragms and check valves, this air-powered double diaphragm pump offers exceptional performance. With a maximum flow rate of 235 gpm and solid handling capability up to 0.25 inches, it is suitable for standard duty applications. The aluminum construction ensures durability, while EPDM elastomers and EPDM check valve seats enhance operational efficiency and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Specifications Check Valve Seat
EPDM
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
EPDM/EPDM
Specifications Height
32 in | 814.83 mm
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Length
20 in | 499.11 mm
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS30B1AEEANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
116 lbs | 53 kg
Specifications Wetted Moc
Aluminum
Specifications Width
16 in | 400.05 mm
Category 6
Standard Duty Diaphragm Pumps
