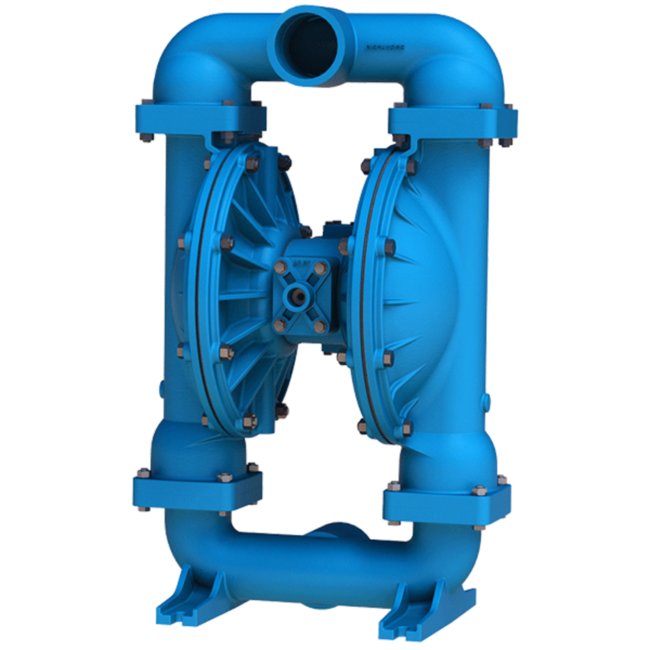

S30 Top Discharge Metallic Ball Valve Pump
S30 Top Discharge Metallic Ball Valve Pump
SKU:PRO-ee2533
Get reliable and versatile pumping with the S30 Top Discharge Metallic Ball Valve Pump, ideal for waste water applications.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
S30 Top Discharge Metallic Ball Valve Pump
$2,599.99
Quantity: 1
Claim Your Seller Account
S30 Top Discharge Metallic Ball Valve Pump
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S30 Evolution Metallic Ball Valve Diaphragm Pump is designed for intermittent/on-demand pumping of moderately abrasive fluids with suspended solids. Featuring options of TPE and PTFE diaphragms and check valves, this pump ensures durability and versatility. Its stainless steel wetted M.O.C., neoprene elastomers, and ball check valve provide reliable performance. With a max flow rate of 235 gpm and a solid handling capability of 0.25 inches, this pump is ideal for waste water applications. Enhance your pumping system with the Sandpiper® Air End Kit and Wet End Kit for optimal efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Specifications Check Valve Seat
Neoprene
Specifications Check Valve Type
Ball
Specifications Customs Code
ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
Neoprene/Neoprene
Specifications Height
32 in | 814.83 mm
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Length
20 in | 499.11 mm
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS30B1SNNANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
194 lbs | 87 kg
Specifications Wetted Moc
Stainless Steel
Specifications Width
16 in | 400.05 mm
Category 6
Standard Duty Diaphragm Pumps
