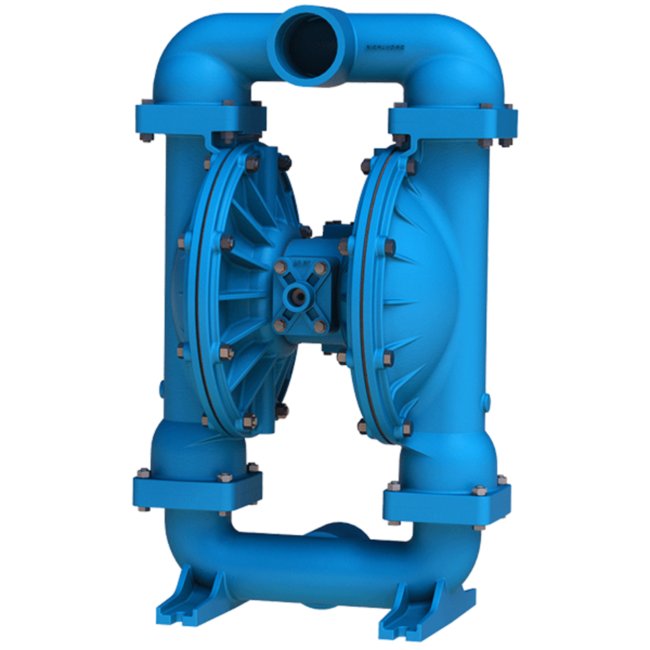

S30 Top Discharge Metallic Ball Valve Pump - Standard Duty Diaphragm Pump
S30 Top Discharge Metallic Ball Valve Pump - Standard Duty Diaphragm Pump
SKU:PRO-d43c10
Reliable S30 Top Discharge Metallic Ball Valve Pump for moderate abrasives with suspended solids. Max flow rate of 235 gpm, 3" intake and discharge. PTFE diaphragms. Ideal for waste water applications.
Regular price
$3,599.99
Regular price
Sale price
$3,599.99
Unit price
per
Initiate Order
S30 Top Discharge Metallic Ball Valve Pump - Standard Duty Diaphragm Pump
$3,599.99
Quantity: 1
Claim Your Seller Account
S30 Top Discharge Metallic Ball Valve Pump - Standard Duty Diaphragm Pump
$3,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The S30 Top Discharge Metallic Ball Valve Pump from the S30 Evolution series offers exceptional performance for pumping intermittent/on-demand moderately abrasive fluids with suspended solids. Featuring a durable design with PTFE diaphragms and check valves, this air-powered double diaphragm pump ensures reliable operation. With a max flow rate of 235 gpm, 3" BSPT tapered intake and discharge pipe sizes, and a solids handling capacity of up to 0.25 inches, this pump is ideal for waste water applications in various industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

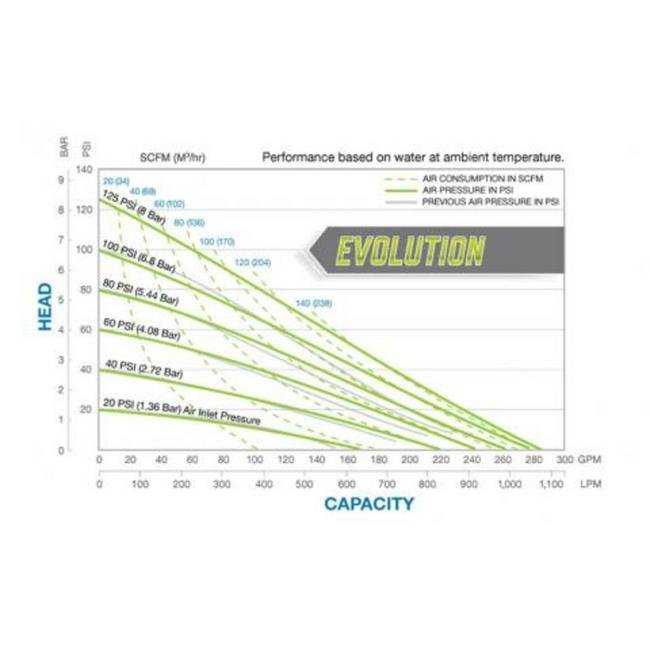

Performance Curves
Specifications Check Valve Seat
PTFE
Specifications Check Valve Type
Ball
Specifications Customs Code
HS Code 84131900ECCN Code EAR99
Specifications Design Level
1
Specifications Discharge Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Displacement Per Stroke
0.94 gal | 3.56 lit
Specifications Elastomers
PTFE - Neoprene/PTFE
Specifications Height
32 in | 814.83 mm
Specifications Intake Pipe Size Internal
3" BSPT Tapered | 3" NPT
Specifications Length
20 in | 499.11 mm
Specifications Max Flow Rate
0 - 235 gpm | 0 - 889 lpm
Specifications Non Wetted Material
Painted Aluminum
Specifications Porting Position
NPT Threads
Specifications Pump Style
Standard
Specifications Sku
WRS30B1IGTANS000SP
Specifications Solids Handling
0.25 in | 6 mm
Specifications Type
Air Powered Double Diaphragm Pump | Pumps - Air Operated Diaphragm | Pumps - AOD - Ball Valve - Top Ported | Pumps - Sandpiper Standard Duty
Specifications Weight
215 lbs | 98 kg
Specifications Wetted Moc
Cast Iron
Specifications Width
16 in | 400.05 mm
Category 6
Standard Duty Diaphragm Pumps
