SA-24 Automatic System Control
SA-24 Automatic System Control
SKU:CON-ee8165
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SA-24 Automatic System Control
$49.99
Quantity: 1
Claim Your Seller Account
SA-24 Automatic System Control
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

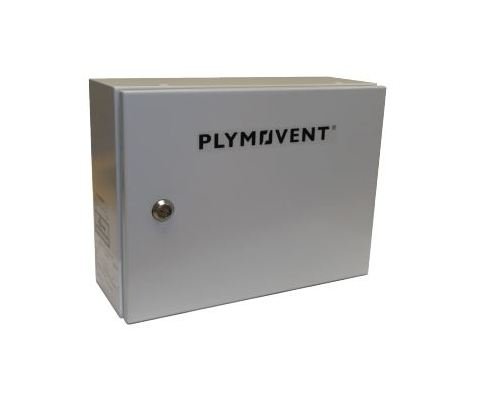

The SA-24 control box is an energy saving control unit designed to be used for controlling exhaust fans in vehicle exhaust systems, with or without a particle filtration system. Together with optional activation devices such as a pressure switch, wireless control, or micro switch, this energy saving controller makes a fully automatic system for the control of the vehicle exhaust fan. The controller only functions in an automatic mode. Depending on the configuration of a system, several options for switches and remote start functions are available. The two most common switches used, are the MSR-24/2 or BRC-MS micro switch mounted on an exhaust hose reel or balancer to start and stop the fan as the hose is pulled down for use or retracted for storage.
Product Specifications
Ambient Conditions Maximum Operating Temperature
104 ºF | 40 ºC
Ambient Conditions Minimum Operating Temperature
41 ºF | 5 ºC
Ambient Conditions Nominal Operating Temperature
68 ºF | 20 ºC
Ambient Conditions Storage Condition
41 to 104 ºF | 5 to 40 ºC | Maximum Relative Humidity 80 %
Ambient Conditions Suitable For Outdoor Use
No
Specifications Automation
Automation
Specifications Box Rating
NEMA 12
Specifications Compliant With
CE | cUL* | NFPA
Specifications Height
11.75 Inch | 298 mm
Specifications Length
15.75 Inch | 400 mm
Specifications Mounting Hole Diameter
0.4 Inch | 10 mm
Specifications Mounting Hole Location
On Centers | 14.15 X 10.15 Inch | 359 X 258 mm
Specifications Operations
The controller is set for automatic control of the fan from remotely located switch(s). Depending on the exhaust extraction system, different switches are available for starting the system. Mainly two types of switches will be used: (1) The MSR-24/2 micro switch is installed on the hose reel to detect when the hose is being lowered to connect to a vehicle. The MSR-24/2 will activate the SA-24 and turn the fan on. The fan will automatically turn off when the hose is retracted or raised, the micro switch opens and the control box turns off the fan. (2) The BRC-MS micro switch that attaches to the BRC-450 spring balancer on fixed and boom extractors. When the hose is pulled down to connect to the vehicle the BRC-MS will activate the SA-24 and turn the fan on. The fan will automatically turn off when the hose is retracted or raised. The micro switch opens and the control box turns off the fan. The control box is designed to start a fan via remotely located switch(s). The activation switch can be one of the two (2) listed above, or any other type of maintained switch. Automatic Mode:- This mode of operation allows for automatic starting of the exhaust fan using one of the optional micro switches. When the exhaust hose is lowered or pulled down, the micro switch closes. This completes the circuit to the control box causing the fan to turn on. When the hose is retracted or raised the micro switch opens and the control box turns off the fan. MSR-24/2: Optional MSR-24/2 is a single throw double pole micro switch that is installed on the exhaust hose reel. When the hose is lowered the MSR-24/2 will activate the SA-24 and turn the fan on. Auxiliary contact can be used to control an automatic damper. BRC-MS: Optional BRC-MS is a single throw double pole micro switch that attaches to the BRC-450 spring balancer on fixed and boom extractors. When the hose is pulled down to connect to the vehicle, the BRC-MS will activate the SA-24 and turn the fan on. Auxiliary contact can be used to control an automatic damper.
Specifications Options And Accessories
The MSR-24/2 is a single throw double pole micro switch that is installed on the exhaust hose reel. When the hose is lowered the MSR-24/2 will activate the SA-24 and turn the fan on. Auxiliary contact can be used to control an automatic damper.The BRC-MS is a single throw double pole micro switch that attaches to the BRC-450 spring balancer on fixed and boom extractors. When the hose is pulled down to connect to the vehicle, the BRC-MS will activate the SA-24 and turn the fan on. Auxiliary contact can be used to control an automatic damper.
Specifications Product Combinations
The SA-24 control box is designed in conjunction with Plymovent vehicle exhaust extraction system components including Plymovent exhaust fans, spring and motorized hose reels, fixed exhaust extractors and booms specifically for vehicle exhaust applications.
Specifications Transport Of The Unit
The SA-24 control box is delivered as self-contained exhaust system controller with automatic start function. The manufacturer cannot be held liable for any damage to the unit due to shipping or mishandling. Always handle the unit and the accompanying options and/or accessories, if any, with care.
Specifications Weight
25 lb | 11.34 kg
Specifications Width
6 Inch | 152 mm
