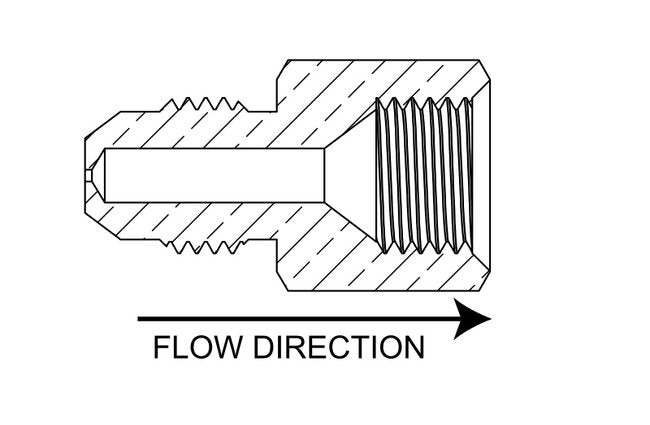

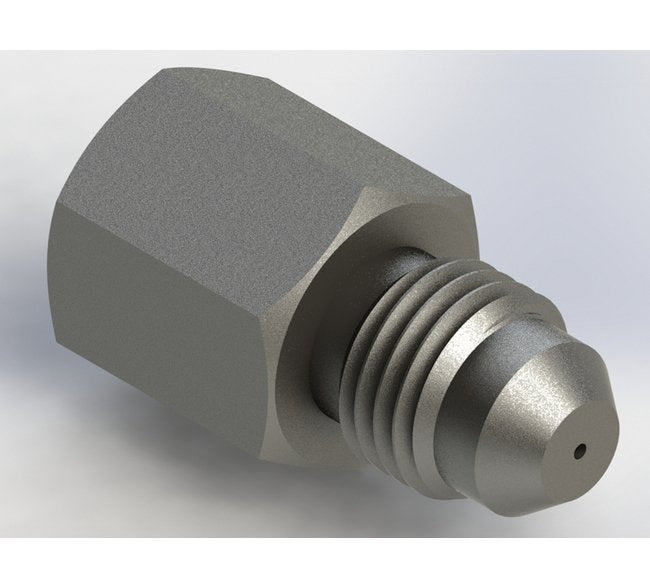

The SAE 37 Degree Flare Adapter CFJ4 is a precision metal orifice assembly designed for seamless integration with common fittings in process instruments and hydraulic systems. Made from high-quality 303 SS, it features precise dimensions with an orifice diameter of 0.06 inches and an accuracy of ±0.0005 inches. With a maximum operating pressure of 4000 psig and bi-directional flow capabilities, this adapter ensures reliable and repeatable flow rates. Ideal for high-pressure applications, it offers economical solutions with predictable flow performance.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.

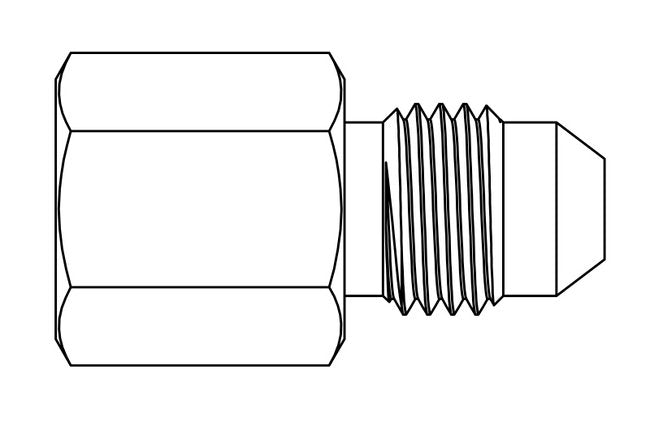

Dimensions Hex Height
0.600 in
Dimensions Orifice Diameter
0.06 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.14 in
Dimensions Width Across Flats Hex
9/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 23.7 | 5 psig: 50.6 | 10 psig: 68.2 | 15 psig: 82.6 | 20 psig: 97.3 | 25 psig: 112 | 30 psig: 126 | 40 psig: 156 | 50 psig: 185 | 60 psig: 214 | 70 psig: 244 | 80 psig: 273 | 90 psig: 303 | 100 psig: 331
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 11.2 | 5 psig (34.5 kPag): 23.9 | 10 psig (69.0 kPag): 32.2 | 15 psig (103.4 kPag): 39 | 20 psig (137.9 kPag): 45.9 | 25 psig (172.4 kPag): 52.8 | 30 psig (206.9 kPag): 59.7 | 40 psig (275.8 kPag): 73.6 | 50 psig (344.8 kPag): 87.4 | 60 psig (413.7 kPag): 101 | 70 psig (482.7 kPag): 115 | 80 psig (551.6 kPag): 129 | 90 psig (620.6 kPag): 143 | 100 psig (689.5 kPag): 156
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 39.4 | 20 In. Hg.: 39.4 | 30 In. Hg.: 39.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 18.6 | 20 In. Hg. (508 Mm. Hg.): 18.6 | 30 In. Hg. (762 Mm. Hg.): 18.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 31.4 | 10 In. Hg.: 38.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 14.8 | 10 In. Hg. (254 Mm. Hg.): 18.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.081 | 2 psig: 0.115 | 3 psig: 0.140 | 4 psig: 0.162 | 5 psig: 0.181 | 6 psig: 0.198 | 7 psig: 0.214 | 8 psig: 0.229 | 9 psig: 0.243 | 10 psig: 0.256 | 15 psig: 0.314 | 20 psig: 0.362 | 30 psig: 0.444 | 40 psig: 0.512 | 50 psig: 0.573 | 60 psig: 0.627 | 70 psig: 0.678 | 80 psig: 0.724 | 90 psig: 0.768 | 100 psig: 0.810
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.307 | 2 psig (13.8 kPag): 0.434 | 3 psig (20.7 kPag): 0.531 | 4 psig (27.6 kPag): 0.613 | 5 psig (34.5 kPag): 0.686 | 6 psig (41.4 kPag): 0.751 | 7 psig (48.3 kPag): 0.811 | 8 psig (55.2 kPag): 0.867 | 9 psig (62.1 kPag): 0.920 | 10 psig (69 kPag): 0.970 | 15 psig (103.4 kPag): 1.188 | 20 psig (137.9 kPag): 1.371 | 30 psig (206.9 kPag): 1.679 | 40 psig (275.8 kPag): 1.939 | 50 psig (344.8 kPag): 2.168 | 60 psig (413.7 kPag): 2.375 | 70 psig (482.7 kPag): 2.565 | 80 psig (551.6 kPag): 2.742 | 90 psig (620.6 kPag): 2.909 | 100 psig (689.5 kPag): 3.066
Specifications Connection A
SAE 37 DEG #4; 7/16"-20 Male
Specifications Connection B
SAE 37 DEG #4; 7/16"-20 Female
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
60
Specifications Screened
None
