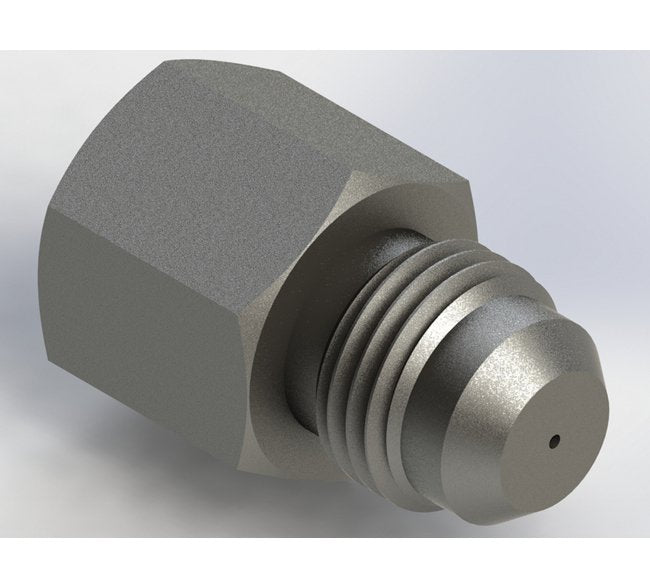

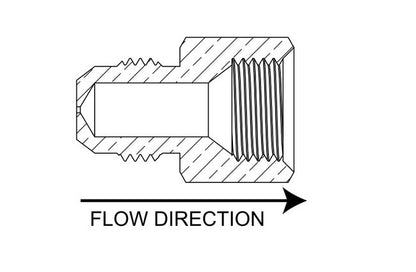

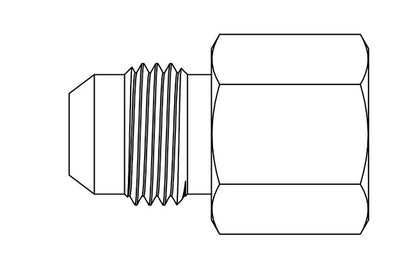

The SAE 37 Degree Flare Adapter CFJ6 is a precision metal orifice assembly designed for seamless adaptation to common fittings in hydraulic systems and process instruments. Made of high-quality 303 SS material, this adapter boasts an orifice diameter of 0.027 inches with an accuracy of ±0.0005 inches. With a maximum operating pressure of 4000 psig and bi-directional flow capability, it ensures reliable performance under high-pressure conditions. This precision orifice assembly offers repeatable orifice size and shape, predictable flow rates, and is suitable for a wide range of applications, meeting the stringent requirements of industrial environments.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.

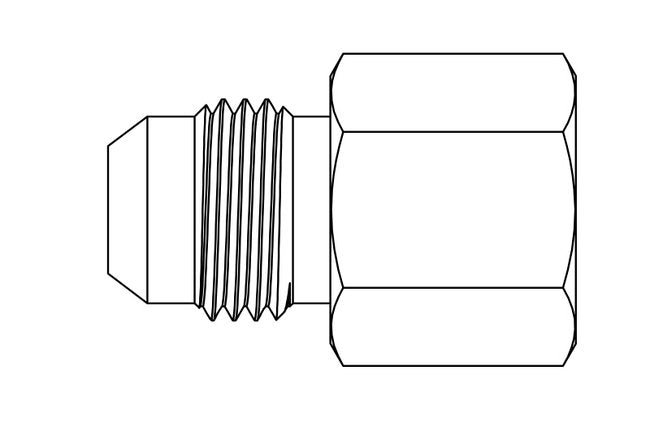

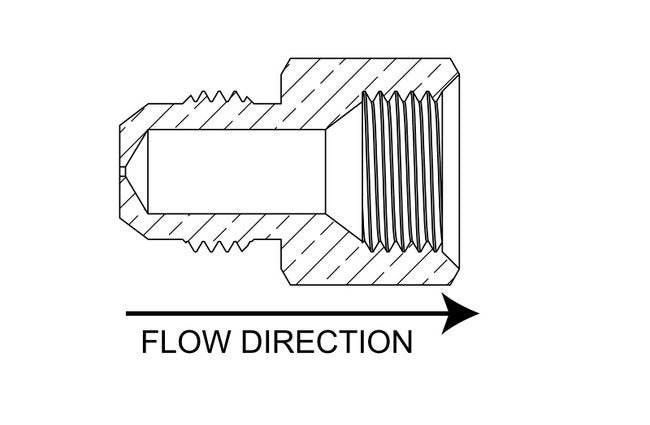

Dimensions Hex Height
0.625 in
Dimensions Orifice Diameter
0.027 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.19 in
Dimensions Width Across Flats Hex
11/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 4.13 | 5 psig: 9.41 | 10 psig: 13.6 | 15 psig: 16.8 | 20 psig: 19.7 | 25 psig: 22.7 | 30 psig: 25.4 | 40 psig: 31.1 | 50 psig: 36.7 | 60 psig: 42.4 | 70 psig: 48.1 | 80 psig: 53.6 | 90 psig: 59.3 | 100 psig: 65.3
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.95 | 5 psig (34.5 kPag): 4.44 | 10 psig (69.0 kPag): 6.43 | 15 psig (103.4 kPag): 7.95 | 20 psig (137.9 kPag): 9.28 | 25 psig (172.4 kPag): 10.7 | 30 psig (206.9 kPag): 12.0 | 40 psig (275.8 kPag): 14.7 | 50 psig (344.8 kPag): 17.3 | 60 psig (413.7 kPag): 20.0 | 70 psig (482.7 kPag): 22.7 | 80 psig (551.6 kPag): 25.3 | 90 psig (620.6 kPag): 28.0 | 100 psig (689.5 kPag): 30.8
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 8.01 | 20 In. Hg.: 8.01 | 30 In. Hg.: 8.01
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 3.78 | 20 In. Hg. (508 Mm. Hg.): 3.78 | 30 In. Hg. (762 Mm. Hg.): 3.78
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 6 | 10 In. Hg.: 7.59
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 2.83 | 10 In. Hg. (254 Mm. Hg.): 3.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.017 | 2 psig: 0.024 | 3 psig: 0.029 | 4 psig: 0.034 | 5 psig: 0.038 | 6 psig: 0.042 | 7 psig: 0.045 | 8 psig: 0.048 | 9 psig: 0.051 | 10 psig: 0.054 | 15 psig: 0.066 | 20 psig: 0.076 | 30 psig: 0.093 | 40 psig: 0.108 | 50 psig: 0.120 | 60 psig: 0.132 | 70 psig: 0.142 | 80 psig: 0.152 | 90 psig: 0.161 | 100 psig: 0.170
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.064 | 2 psig (13.8 kPag): 0.091 | 3 psig (20.7 kPag): 0.111 | 4 psig (27.6 kPag): 0.129 | 5 psig (34.5 kPag): 0.144 | 6 psig (41.4 kPag): 0.144 | 7 psig (48.3 kPag): 0.170 | 8 psig (55.2 kPag): 0.182 | 9 psig (62.1 kPag): 0.193 | 10 psig (69 kPag): 0.203 | 15 psig (103.4 kPag): 0.249 | 20 psig (137.9 kPag): 0.288 | 30 psig (206.9 kPag): 0.352 | 40 psig (275.8 kPag): 0.407 | 50 psig (344.8 kPag): 0.455 | 60 psig (413.7 kPag): 0.498 | 70 psig (482.7 kPag): 0.538 | 80 psig (551.6 kPag): 0.576 | 90 psig (620.6 kPag): 0.610 | 100 psig (689.5 kPag): 0.644
Specifications Connection A
SAE 37 DEG #6; 9/16"-18 Male
Specifications Connection B
SAE 37 DEG #6; 9/16"-18 Female
Specifications Cv
0.017
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
27
Specifications Screened
None
