SAE 37 Degree Flare Adapter CFJ6 - Precision Metal Orifice
SAE 37 Degree Flare Adapter CFJ6 - Precision Metal Orifice
SKU:PRE-f29766
High-grade precision metal orifice adapter for process instruments & hydraulic systems, ensuring bi-directional flow, repeatable orifice size, and high-pressure capability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SAE 37 Degree Flare Adapter CFJ6 - Precision Metal Orifice
$49.99
Quantity: 1
Claim Your Seller Account
SAE 37 Degree Flare Adapter CFJ6 - Precision Metal Orifice
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

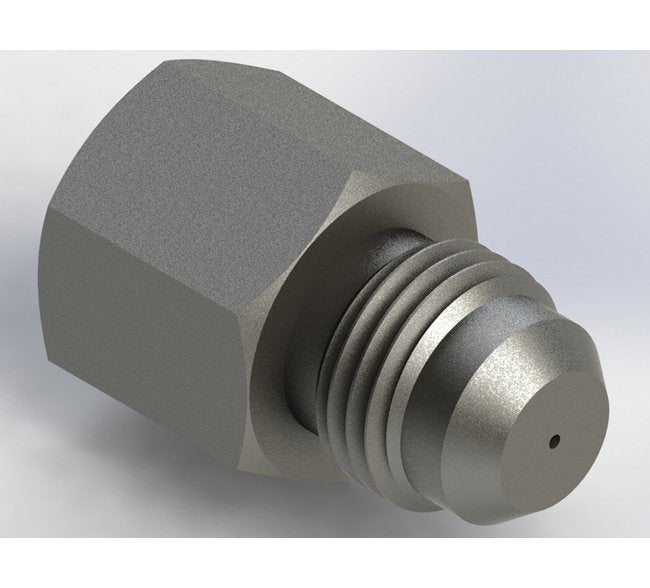

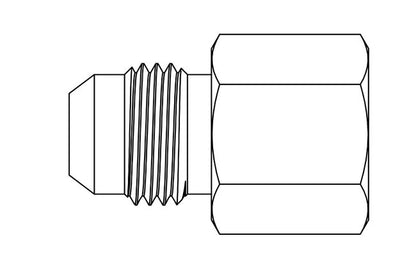

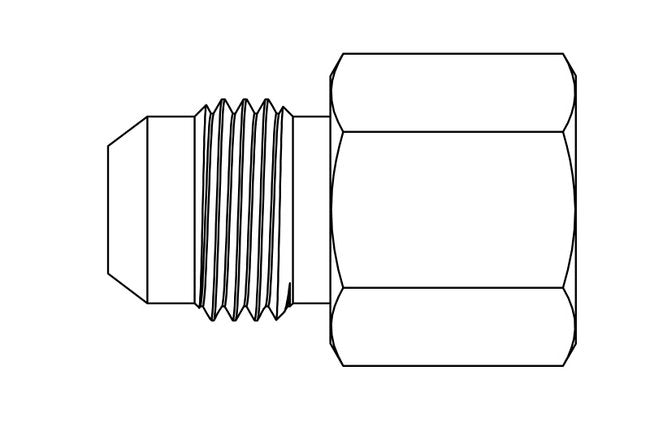

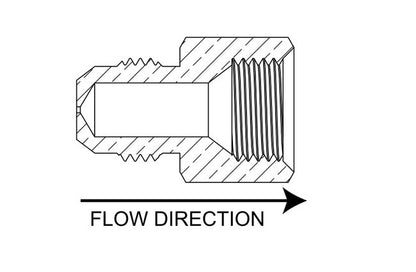

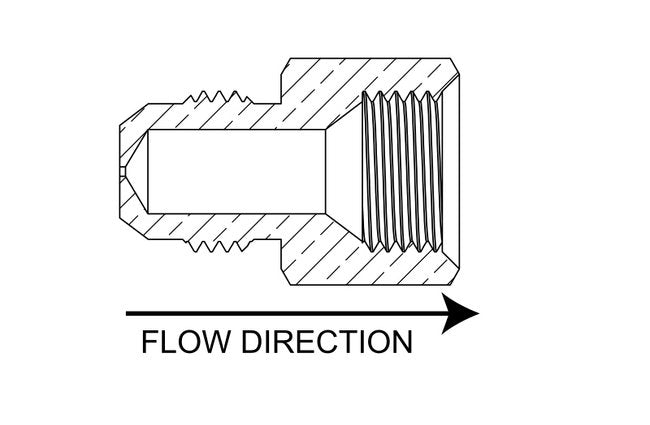

The SAE 37 Degree Flare Adapter CFJ6 is a precision metal orifice assembly designed for seamless integration into process instruments and hydraulic systems. Crafted from high-grade 303 SS, this adapter ensures maximum operating pressure of 4000 psig. With precise dimensions and accuracy, it offers a nominal orifice size of 60, CV of 0.081, and bi-directional flow capability. Ideal for high-pressure applications, this adapter guarantees repeatable orifice size and shape, predictable flow rates, and exceptional reliability. Whether for compression fittings, face seal fittings, or hydraulic circuits with SAE flare connections, this adapter delivers superior performance.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.625 in
Dimensions Orifice Diameter
0.06 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.19 in
Dimensions Width Across Flats Hex
11/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 23.7 | 5 psig: 50.6 | 10 psig: 68.2 | 15 psig: 82.6 | 20 psig: 97.3 | 25 psig: 112 | 30 psig: 126 | 40 psig: 156 | 50 psig: 185 | 60 psig: 214 | 70 psig: 244 | 80 psig: 273 | 90 psig: 303 | 100 psig: 331
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 11.2 | 5 psig (34.5 kPag): 23.9 | 10 psig (69.0 kPag): 32.2 | 15 psig (103.4 kPag): 39 | 20 psig (137.9 kPag): 45.9 | 25 psig (172.4 kPag): 52.8 | 30 psig (206.9 kPag): 59.7 | 40 psig (275.8 kPag): 73.6 | 50 psig (344.8 kPag): 87.4 | 60 psig (413.7 kPag): 101 | 70 psig (482.7 kPag): 115 | 80 psig (551.6 kPag): 129 | 90 psig (620.6 kPag): 143 | 100 psig (689.5 kPag): 156
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 39.4 | 20 In. Hg.: 39.4 | 30 In. Hg.: 39.4
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 18.6 | 20 In. Hg. (508 Mm. Hg.): 18.6 | 30 In. Hg. (762 Mm. Hg.): 18.6
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 31.4 | 10 In. Hg.: 38.6
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 14.8 | 10 In. Hg. (254 Mm. Hg.): 18.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.081 | 2 psig: 0.115 | 3 psig: 0.140 | 4 psig: 0.162 | 5 psig: 0.181 | 6 psig: 0.198 | 7 psig: 0.214 | 8 psig: 0.229 | 9 psig: 0.243 | 10 psig: 0.256 | 15 psig: 0.314 | 20 psig: 0.362 | 30 psig: 0.444 | 40 psig: 0.512 | 50 psig: 0.573 | 60 psig: 0.627 | 70 psig: 0.678 | 80 psig: 0.724 | 90 psig: 0.768 | 100 psig: 0.810
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.307 | 2 psig (13.8 kPag): 0.434 | 3 psig (20.7 kPag): 0.531 | 4 psig (27.6 kPag): 0.613 | 5 psig (34.5 kPag): 0.686 | 6 psig (41.4 kPag): 0.751 | 7 psig (48.3 kPag): 0.811 | 8 psig (55.2 kPag): 0.867 | 9 psig (62.1 kPag): 0.920 | 10 psig (69 kPag): 0.970 | 15 psig (103.4 kPag): 1.188 | 20 psig (137.9 kPag): 1.371 | 30 psig (206.9 kPag): 1.679 | 40 psig (275.8 kPag): 1.939 | 50 psig (344.8 kPag): 2.168 | 60 psig (413.7 kPag): 2.375 | 70 psig (482.7 kPag): 2.565 | 80 psig (551.6 kPag): 2.742 | 90 psig (620.6 kPag): 2.909 | 100 psig (689.5 kPag): 3.066
Specifications Connection A
SAE 37 DEG #6; 9/16"-18 Male
Specifications Connection B
SAE 37 DEG #6; 9/16"-18 Female
Specifications Cv
0.081
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
60
Specifications Screened
None
