SAE 37 Degree Flare Adapter CFJ8
SAE 37 Degree Flare Adapter CFJ8
SKU:PRE-9c9f7e
High-quality SAE 37 Degree Flare Adapter for precision hydraulic systems. Max pressure: 4000 psig.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SAE 37 Degree Flare Adapter CFJ8
$29.99
Quantity: 1
Claim Your Seller Account
SAE 37 Degree Flare Adapter CFJ8
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

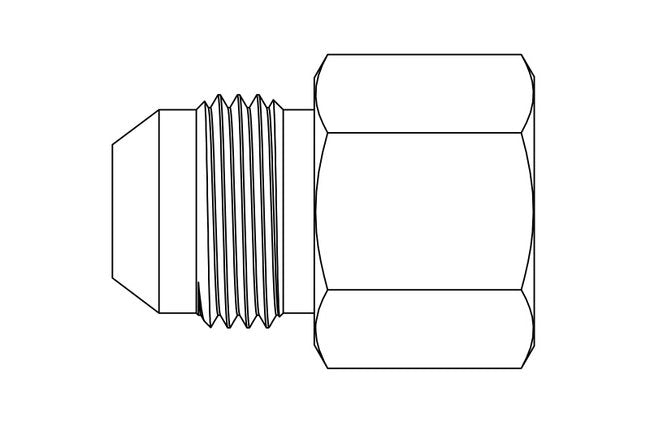

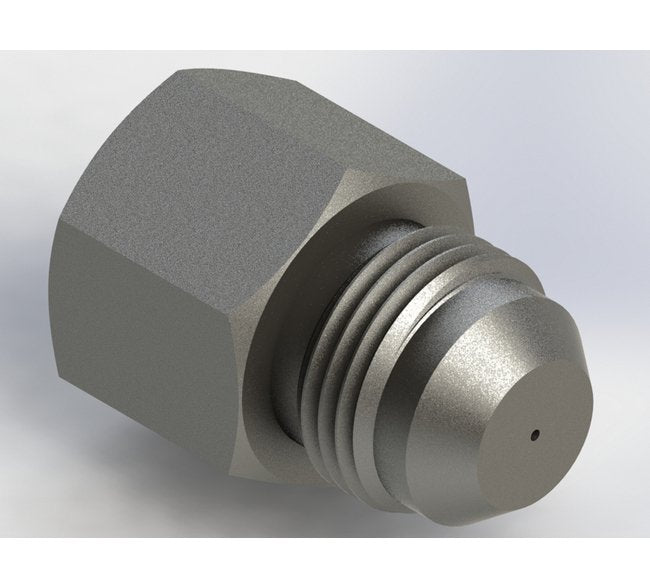

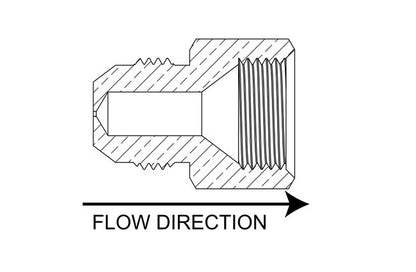

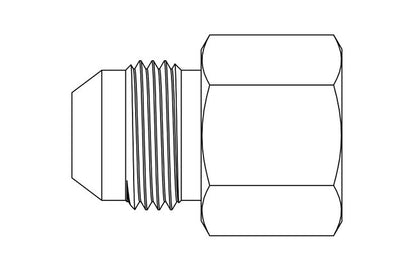

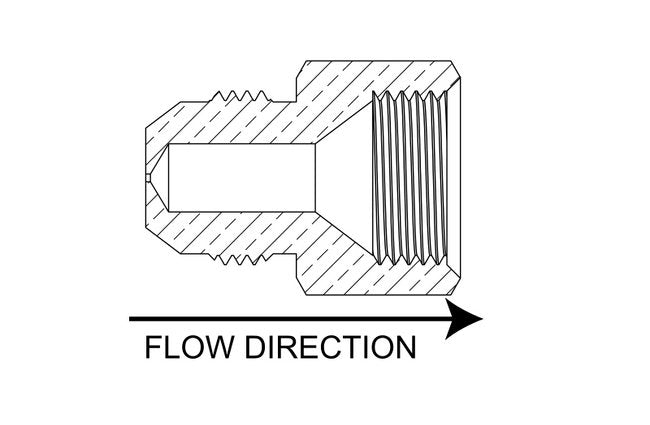

The SAE 37 Degree Flare Adapter CFJ8 is a precision metal orifice assembly designed to adapt to common fittings in process instruments and hydraulic systems. Constructed from high-quality 303 SS material, this adapter features precise dimensions including an orifice diameter of 0.1200 in, ensuring reliable performance. With a maximum operating pressure of 4000 psig, this adapter is suitable for high-pressure applications. Its bi-directional flow, repeatable orifice size, and predictable flow rate make it a cost-effective and efficient choice for hydraulic circuits with SAE flare connections.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.1200 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 101 | 5 psig: 216 | 10 psig: 286 | 15 psig: 345 | 20 psig: 403 | 25 psig: 464 | 30 psig: 525 | 40 psig: 648 | 50 psig: 771 | 60 psig: 894 | 70 psig: 1021 | 80 psig: 1146 | 90 psig: 1267 | 100 psig: 1403
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 47.8 | 5 psig (34.5 kPag): 102 | 10 psig (69.0 kPag): 135 | 15 psig (103.4 kPag): 163 | 20 psig (137.9 kPag): 190 | 25 psig (172.4 kPag): 219 | 30 psig (206.9 kPag): 248 | 40 psig (275.8 kPag): 306 | 50 psig (344.8 kPag): 364 | 60 psig (413.7 kPag): 422 | 70 psig (482.7 kPag): 482 | 80 psig (551.6 kPag): 541 | 90 psig (620.6 kPag): 598 | 100 psig (689.5 kPag): 662
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 180 | 20 In. Hg.: 180 | 30 In. Hg.: 180
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 84.9 | 20 In. Hg. (508 Mm. Hg.): 84.9 | 30 In. Hg. (762 Mm. Hg.): 84.9
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 138 | 10 In. Hg.: 173
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 65.3 | 10 In. Hg. (254 Mm. Hg.): 81.4
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.340 | 2 psig: 0.481 | 3 psig: 0.589 | 4 psig: 0.680 | 5 psig: 0.760 | 6 psig: 0.833 | 7 psig: 0.900 | 8 psig: 0.962 | 9 psig: 1.020 | 10 psig: 1.075 | 15 psig: 1.317 | 20 psig: 1.521 | 30 psig: 1.862 | 40 psig: 2.150 | 50 psig: 2.404 | 60 psig: 2.634 | 70 psig: 2.845 | 80 psig: 3.041 | 90 psig: 3.226 | 100 psig: 3.400
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 1.287 | 2 psig (13.8 kPag): 1.820 | 3 psig (20.7 kPag): 2.229 | 4 psig (27.6 kPag): 2.574 | 5 psig (34.5 kPag): 2.878 | 6 psig (41.4 kPag): 3.153 | 7 psig (48.3 kPag): 3.405 | 8 psig (55.2 kPag): 3.64 | 9 psig (62.1 kPag): 3.861 | 10 psig (69 kPag): 4.070 | 15 psig (103.4 kPag): 4.985 | 20 psig (137.9 kPag): 5.756 | 30 psig (206.9 kPag): 7.049 | 40 psig (275.8 kPag): 8.140 | 50 psig (344.8 kPag): 9.101 | 60 psig (413.7 kPag): 9.969 | 70 psig (482.7 kPag): 10.768 | 80 psig (551.6 kPag): 11.512 | 90 psig (620.6 kPag): 12.210 | 100 psig (689.5 kPag): 12.870
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.340
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
120
Specifications Screened
None
