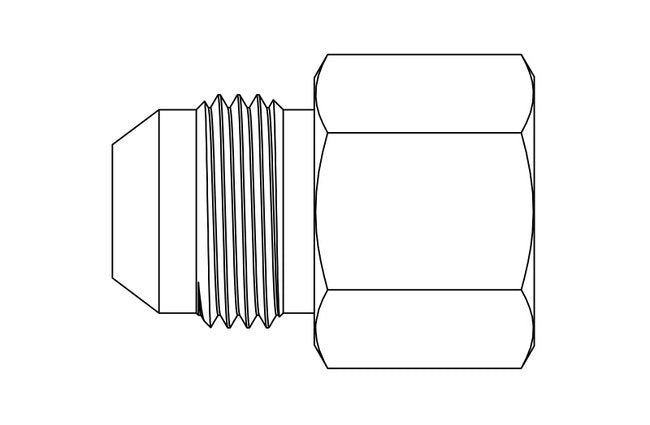

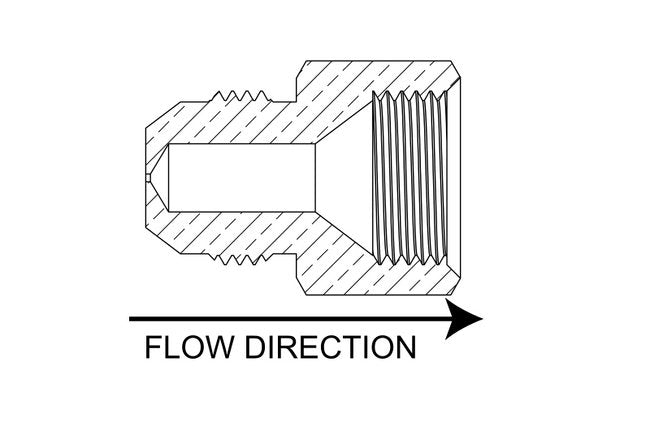

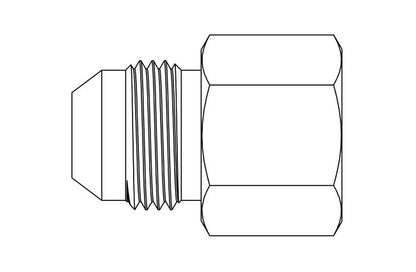

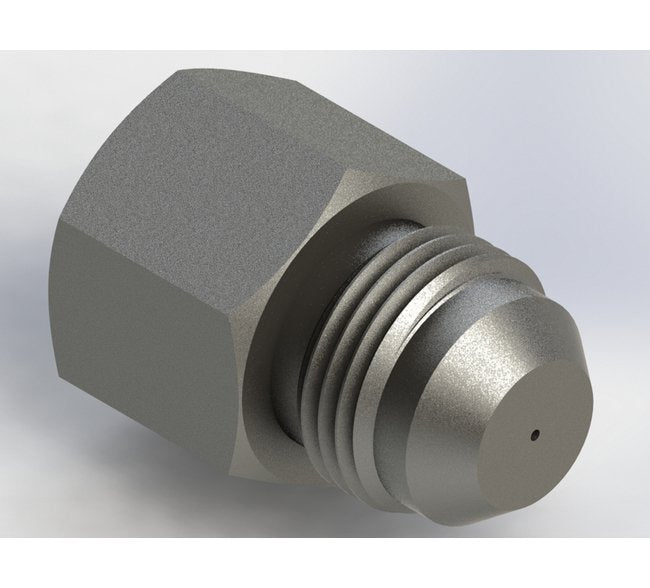

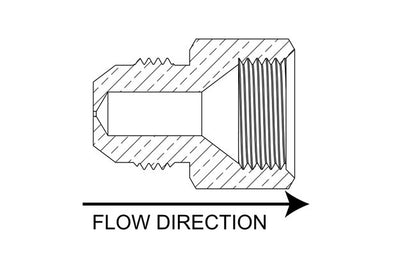

The SAE 37 Degree Flare Adapter CFJ8 is a precision metal orifice designed for seamless integration into process instruments and hydraulic systems. Crafted from high-grade 303 SS, it offers a nominal orifice size of 0.031 in with a precise accuracy of ±0.0005 in. This adapter features bi-directional flow capability, with a maximum operating pressure of 4000 psig, ensuring reliable performance under varying conditions. Suitable for a range of fittings, this adapter guarantees repeatable orifice size and shape, delivering predictable flow rates with unmatched precision.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.031 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 5.62 | 5 psig: 12.4 | 10 psig: 18.3 | 15 psig: 22.5 | 20 psig: 26.3 | 25 psig: 30.1 | 30 psig: 33.7 | 40 psig: 41.1 | 50 psig: 48.5 | 60 psig: 55.9 | 70 psig: 63.6 | 80 psig: 71.2 | 90 psig: 78.8 | 100 psig: 86.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 2.65 | 5 psig (34.5 kPag): 5.86 | 10 psig (69.0 kPag): 8.63 | 15 psig (103.4 kPag): 10.6 | 20 psig (137.9 kPag): 12.4 | 25 psig (172.4 kPag): 14.2 | 30 psig (206.9 kPag): 15.9 | 40 psig (275.8 kPag): 19.4 | 50 psig (344.8 kPag): 22.9 | 60 psig (413.7 kPag): 26.4 | 70 psig (482.7 kPag): 30.0 | 80 psig (551.6 kPag): 33.6 | 90 psig (620.6 kPag): 37.2 | 100 psig (689.5 kPag): 40.9
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 10.7 | 20 In. Hg.: 10.7 | 30 In. Hg.: 10.7
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 5.05 | 20 In. Hg. (508 Mm. Hg.): 5.05 | 30 In. Hg. (762 Mm. Hg.): 5.05
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 8.01 | 10 In. Hg.: 10.1
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 3.78 | 10 In. Hg. (254 Mm. Hg.): 4.77
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.022 | 2 psig: 0.031 | 3 psig: 0.038 | 4 psig: 0.044 | 5 psig: 0.049 | 6 psig: 0.054 | 7 psig: 0.058 | 8 psig: 0.062 | 9 psig: 0.066 | 10 psig: 0.070 | 15 psig: 0.085 | 20 psig: 0.098 | 30 psig: 0.120 | 40 psig: 0.139 | 50 psig: 0.156 | 60 psig: 0.170 | 70 psig: 0.184 | 80 psig: 0.197 | 90 psig: 0.209 | 100 psig: 0.220
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.083 | 2 psig (13.8 kPag): 0.118 | 3 psig (20.7 kPag): 0.144 | 4 psig (27.6 kPag): 0.167 | 5 psig (34.5 kPag): 0.186 | 6 psig (41.4 kPag): 0.186 | 7 psig (48.3 kPag): 0.220 | 8 psig (55.2 kPag): 0.236 | 9 psig (62.1 kPag): 0.250 | 10 psig (69 kPag): 0.263 | 15 psig (103.4 kPag): 0.323 | 20 psig (137.9 kPag): 0.372 | 30 psig (206.9 kPag): 0.456 | 40 psig (275.8 kPag): 0.527 | 50 psig (344.8 kPag): 0.589 | 60 psig (413.7 kPag): 0.645 | 70 psig (482.7 kPag): 0.697 | 80 psig (551.6 kPag): 0.745 | 90 psig (620.6 kPag): 0.790 | 100 psig (689.5 kPag): 0.833
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.022
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
31
Specifications Screened
None
