SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice
$39.99
Quantity: 1
Claim Your Seller Account
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

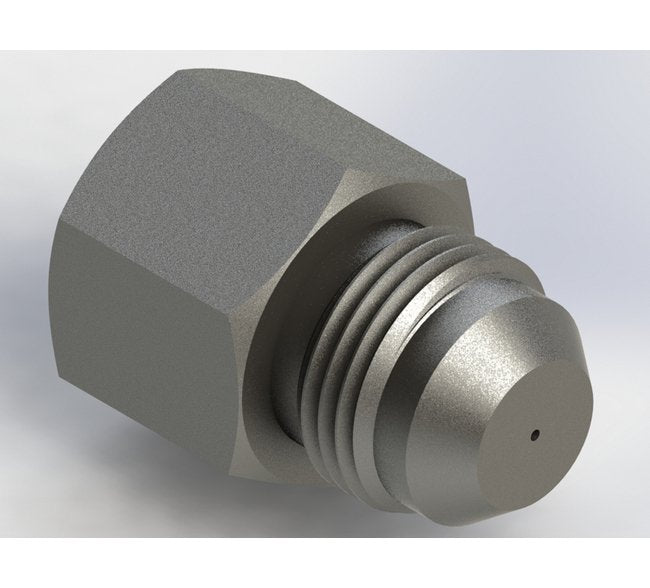

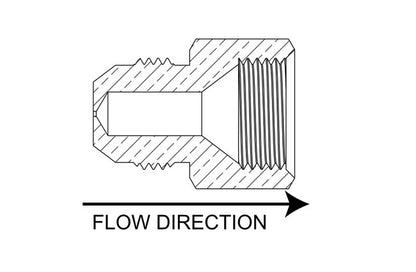

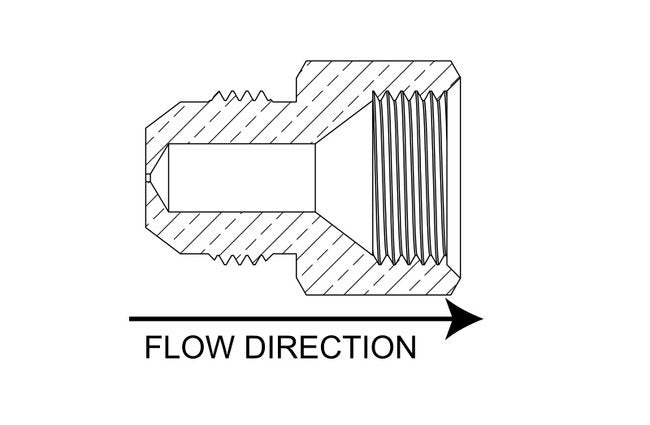

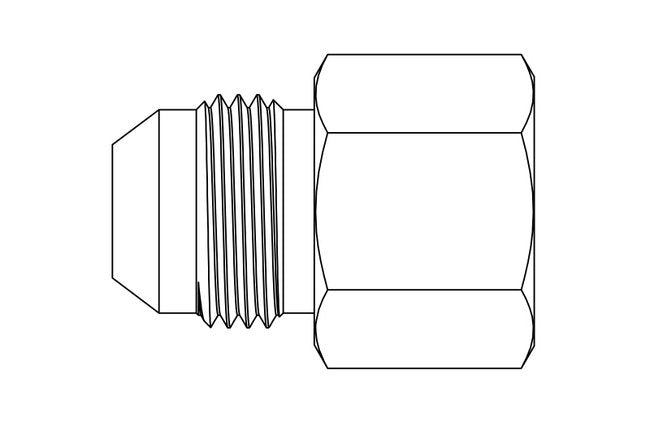

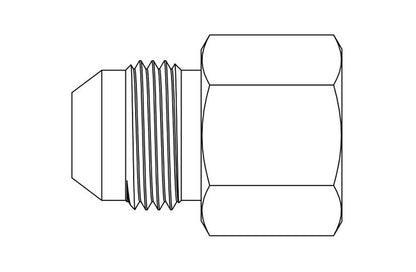

The SAE 37 Degree Flare Adapter CFJ8 is a precision metal orifice assembly designed to adapt common fittings in process instruments and hydraulic systems. Crafted from high-quality 303 SS with an orifice diameter of 0.022 in (+/- 0.0005 in), this adapter offers a maximum operating pressure of 4000 psig. With bi-directional flow, repeatable orifice size, and predictable flow rate, it ensures reliable performance in high-pressure environments. Suitable for various tube and face seal fittings, this adapter guarantees precise flow control and compatibility with SAE flare connections.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.022 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 2.73 | 5 psig: 6.29 | 10 psig: 9.17 | 15 psig: 11.3 | 20 psig: 13.5 | 25 psig: 15.5 | 30 psig: 17.4 | 40 psig: 21.4 | 50 psig: 25.2 | 60 psig: 29.2 | 70 psig: 33.1 | 80 psig: 37.1 | 90 psig: 40.9 | 100 psig: 44.7
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 1.29 | 5 psig (34.5 kPag): 2.97 | 10 psig (69.0 kPag): 4.33 | 15 psig (103.4 kPag): 5.35 | 20 psig (137.9 kPag): 6.35 | 25 psig (172.4 kPag): 7.30 | 30 psig (206.9 kPag): 8.23 | 40 psig (275.8 kPag): 10.1 | 50 psig (344.8 kPag): 11.9 | 60 psig (413.7 kPag): 13.8 | 70 psig (482.7 kPag): 15.6 | 80 psig (551.6 kPag): 17.5 | 90 psig (620.6 kPag): 19.3 | 100 psig (689.5 kPag): 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 5.53 | 20 In. Hg.: 5.53 | 30 In. Hg.: 5.53
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 2.61 | 20 In. Hg. (508 Mm. Hg.): 2.61 | 30 In. Hg. (762 Mm. Hg.): 2.61
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 4.03 | 10 In. Hg.: 5.17
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 1.90 | 10 In. Hg. (254 Mm. Hg.): 2.44
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.011 | 2 psig: 0.016 | 3 psig: 0.019 | 4 psig: 0.022 | 5 psig: 0.025 | 6 psig: 0.027 | 7 psig: 0.029 | 8 psig: 0.031 | 9 psig: 0.033 | 10 psig: 0.035 | 15 psig: 0.043 | 20 psig: 0.049 | 30 psig: 0.060 | 40 psig: 0.070 | 50 psig: 0.078 | 60 psig: 0.085 | 70 psig: 0.092 | 80 psig: 0.098 | 90 psig: 0.104 | 100 psig: 0.110
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.042 | 2 psig (13.8 kPag): 0.059 | 3 psig (20.7 kPag): 0.072 | 4 psig (27.6 kPag): 0.083 | 5 psig (34.5 kPag): 0.093 | 6 psig (41.4 kPag): 0.093 | 7 psig (48.3 kPag): 0.110 | 8 psig (55.2 kPag): 0.118 | 9 psig (62.1 kPag): 0.125 | 10 psig (69 kPag): 0.132 | 15 psig (103.4 kPag): 0.161 | 20 psig (137.9 kPag): 0.186 | 30 psig (206.9 kPag): 0.228 | 40 psig (275.8 kPag): 0.263 | 50 psig (344.8 kPag): 0.294 | 60 psig (413.7 kPag): 0.323 | 70 psig (482.7 kPag): 0.348 | 80 psig (551.6 kPag): 0.372 | 90 psig (620.6 kPag): 0.395 | 100 psig (689.5 kPag): 0.416
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.011
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
22
Specifications Screened
None
