SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice
SKU:PRE-a90e30
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice for high-pressure hydraulic systems.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice
$39.99
Quantity: 1
Claim Your Seller Account
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

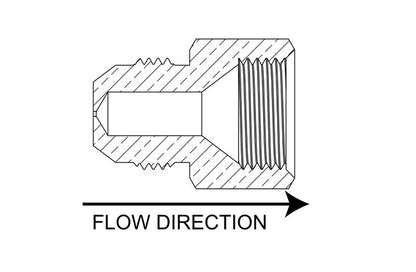

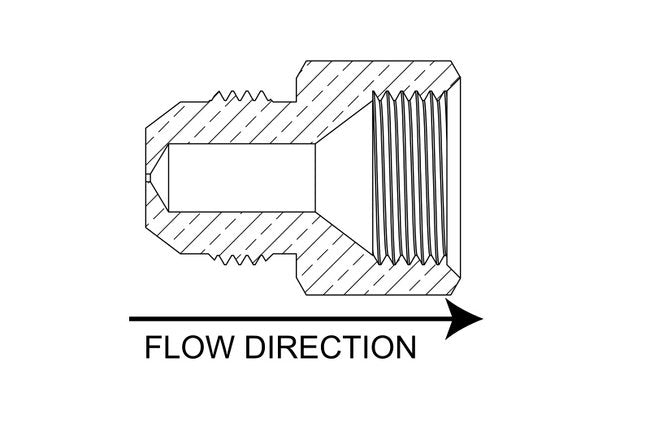

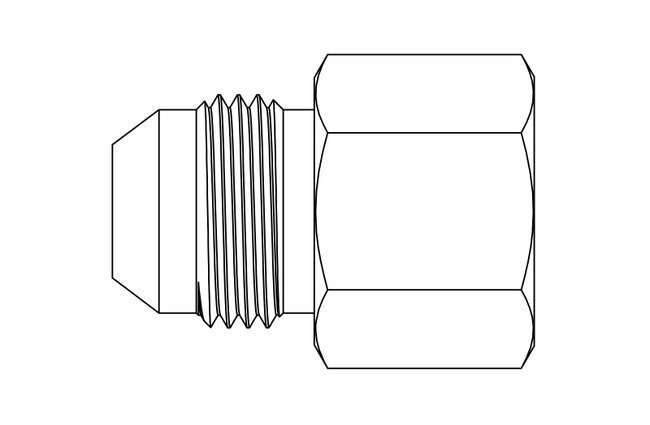

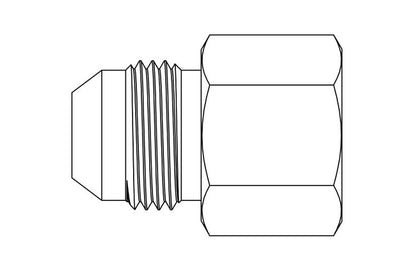

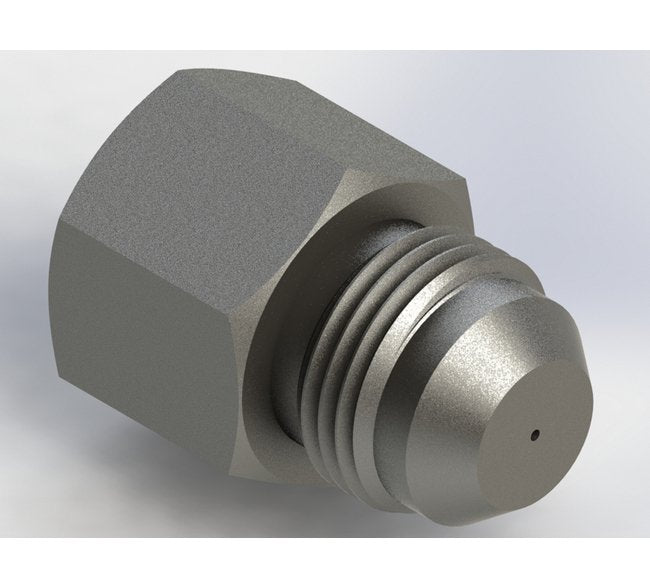

The SAE 37 Degree Flare Adapter Type CFJ8 is a precision metal orifice designed to adapt to common fittings in process instruments and hydraulic systems. Made of 303 SS, this adapter offers a tight tolerance with an orifice diameter of 0.0790 in (±0.0005 in) and a maximum operating pressure of 4000 psig. Suitable for high-pressure applications, it enables bi-directional flow, precise flow rate predictability, and repeatable orifice sizing. With SAE 37 DEG #8 connections, it ensures secure and reliable connections for hydraulic circuits, meeting the stringent requirements of industrial settings.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.0790 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 43.0 | 5 psig: 91.3 | 10 psig: 121 | 15 psig: 147 | 20 psig: 172 | 25 psig: 198 | 30 psig: 222 | 40 psig: 273 | 50 psig: 324 | 60 psig: 375 | 70 psig: 428 | 80 psig: 481 | 90 psig: 532 | 100 psig: 587
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 20.3 | 5 psig (34.5 kPag): 43.1 | 10 psig (69.0 kPag): 57.3 | 15 psig (103.4 kPag): 69.4 | 20 psig (137.9 kPag): 81.4 | 25 psig (172.4 kPag): 93.5 | 30 psig (206.9 kPag): 105 | 40 psig (275.8 kPag): 129 | 50 psig (344.8 kPag): 153 | 60 psig (413.7 kPag): 177 | 70 psig (482.7 kPag): 202 | 80 psig (551.6 kPag): 227 | 90 psig (620.6 kPag): 251 | 100 psig (689.5 kPag): 277
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 78.0 | 20 In. Hg.: 78.0 | 30 In. Hg.: 78.0
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 36.8 | 20 In. Hg. (508 Mm. Hg.): 36.8 | 30 In. Hg. (762 Mm. Hg.): 36.8
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 60 | 10 In. Hg.: 74.8
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 28.3 | 10 In. Hg. (254 Mm. Hg.): 35.3
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.140 | 2 psig: 0.198 | 3 psig: 0.242 | 4 psig: 0.280 | 5 psig: 0.313 | 6 psig: 0.343 | 7 psig: 0.370 | 8 psig: 0.396 | 9 psig: 0.420 | 10 psig: 0.443 | 15 psig: 0.542 | 20 psig: 0.626 | 30 psig: 0.767 | 40 psig: 0.885 | 50 psig: 0.990 | 60 psig: 1.084 | 70 psig: 1.171 | 80 psig: 1.252 | 90 psig: 1.328 | 100 psig: 1.400
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.530 | 2 psig (13.8 kPag): 0.749 | 3 psig (20.7 kPag): 0.918 | 4 psig (27.6 kPag): 1.06 | 5 psig (34.5 kPag): 1.185 | 6 psig (41.4 kPag): 1.298 | 7 psig (48.3 kPag): 1.402 | 8 psig (55.2 kPag): 1.499 | 9 psig (62.1 kPag): 1.59 | 10 psig (69 kPag): 1.676 | 15 psig (103.4 kPag): 2.053 | 20 psig (137.9 kPag): 2.370 | 30 psig (206.9 kPag): 2.903 | 40 psig (275.8 kPag): 3.352 | 50 psig (344.8 kPag): 3.747 | 60 psig (413.7 kPag): 4.105 | 70 psig (482.7 kPag): 4.434 | 80 psig (551.6 kPag): 4.74 | 90 psig (620.6 kPag): 5.028 | 100 psig (689.5 kPag): 5.3
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.140
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
79
Specifications Screened
None
