High-precision SAE 37 Degree Flare Adapter CFJ8 for process instruments & hydraulic systems
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice
$49.99
Quantity: 1
Claim Your Seller Account
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifice
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

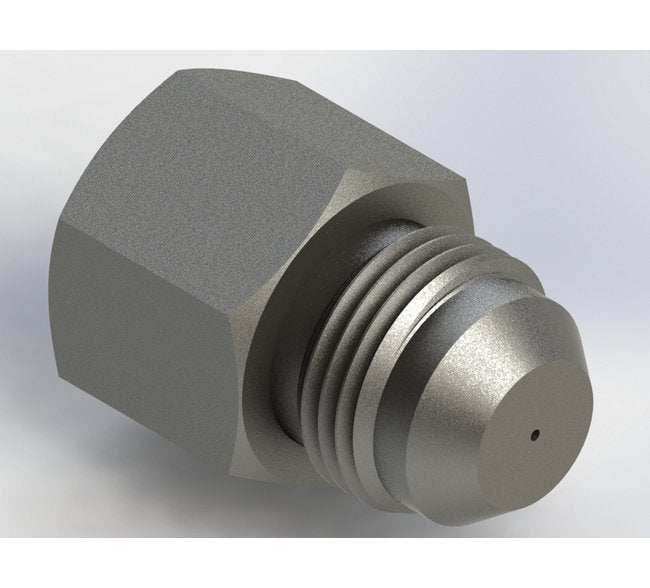

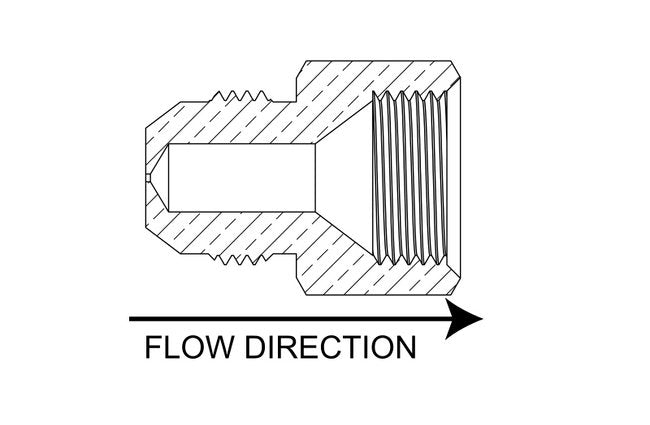

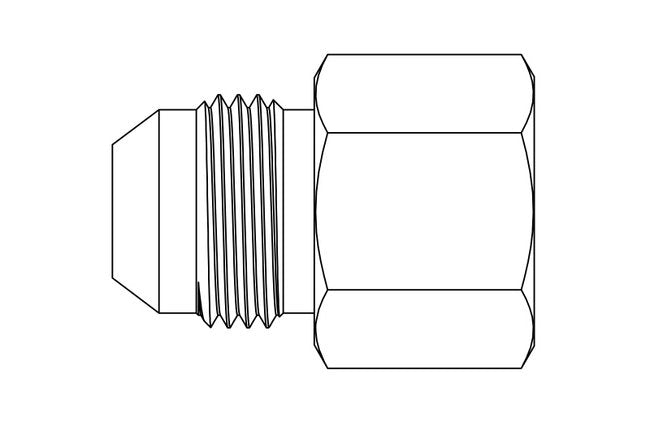

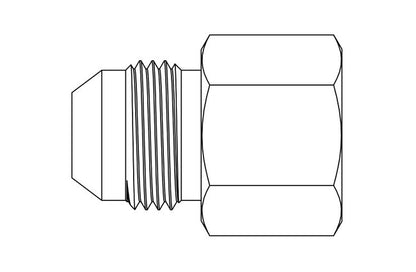

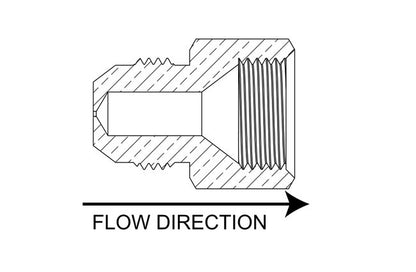

The SAE 37 Degree Flare Adapter CFJ8 is a meticulously crafted precision metal orifice assembly designed for seamless adaptation to common fittings found in process instruments and hydraulic systems. Made from high-quality 303 SS material, this adapter boasts an orifice diameter of 0.0730 inches with an impressive accuracy of ±0.0005 inches. It features a bi-directional flow, a maximum operating pressure of 4000 psig, and precise predictability in flow rate. With connections suitable for SAE 37 Degree #8, both male and female, this adapter ensures optimal performance and reliability in demanding industrial environments.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.0730 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 35.9 | 5 psig: 76.5 | 10 psig: 103 | 15 psig: 125 | 20 psig: 146 | 25 psig: 168 | 30 psig: 190 | 40 psig: 233 | 50 psig: 278 | 60 psig: 320 | 70 psig: 362 | 80 psig: 405 | 90 psig: 447 | 100 psig: 496
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 16.9 | 5 psig (34.5 kPag): 36.1 | 10 psig (69.0 kPag): 48.5 | 15 psig (103.4 kPag): 58.8 | 20 psig (137.9 kPag): 69 | 25 psig (172.4 kPag): 79.3 | 30 psig (206.9 kPag): 89.5 | 40 psig (275.8 kPag): 110 | 50 psig (344.8 kPag): 131 | 60 psig (413.7 kPag): 151 | 70 psig (482.7 kPag): 171 | 80 psig (551.6 kPag): 191 | 90 psig (620.6 kPag): 211 | 100 psig (689.5 kPag): 234
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 66.1 | 20 In. Hg.: 66.1 | 30 In. Hg.: 66.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 31.2 | 20 In. Hg. (508 Mm. Hg.): 31.2 | 30 In. Hg. (762 Mm. Hg.): 31.2
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 50.6 | 10 In. Hg.: 63.4
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 23.9 | 10 In. Hg. (254 Mm. Hg.): 29.9
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.120 | 2 psig: 0.170 | 3 psig: 0.208 | 4 psig: 0.240 | 5 psig: 0.268 | 6 psig: 0.294 | 7 psig: 0.317 | 8 psig: 0.339 | 9 psig: 0.360 | 10 psig: 0.379 | 15 psig: 0.465 | 20 psig: 0.537 | 30 psig: 0.657 | 40 psig: 0.759 | 50 psig: 0.849 | 60 psig: 0.930 | 70 psig: 1.004 | 80 psig: 1.073 | 90 psig: 1.138 | 100 psig: 1.200
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.454 | 2 psig (13.8 kPag): 0.642 | 3 psig (20.7 kPag): 0.787 | 4 psig (27.6 kPag): 0.908 | 5 psig (34.5 kPag): 1.016 | 6 psig (41.4 kPag): 1.113 | 7 psig (48.3 kPag): 1.202 | 8 psig (55.2 kPag): 1.285 | 9 psig (62.1 kPag): 1.363 | 10 psig (69 kPag): 1.436 | 15 psig (103.4 kPag): 1.759 | 20 psig (137.9 kPag): 2.031 | 30 psig (206.9 kPag): 2.488 | 40 psig (275.8 kPag): 2.873 | 50 psig (344.8 kPag): 3.212 | 60 psig (413.7 kPag): 3.519 | 70 psig (482.7 kPag): 3.801 | 80 psig (551.6 kPag): 4.063 | 90 psig (620.6 kPag): 4.309 | 100 psig (689.5 kPag): 4.542
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.120
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
73
Specifications Screened
None
