SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifices
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifices
SKU:PRE-69c0d3
High-precision SAE 37 Degree Flare Adapter for process instruments and hydraulic systems.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifices
$32.99
Quantity: 1
Claim Your Seller Account
SAE 37 Degree Flare Adapter CFJ8 - Precision Metal Orifices
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

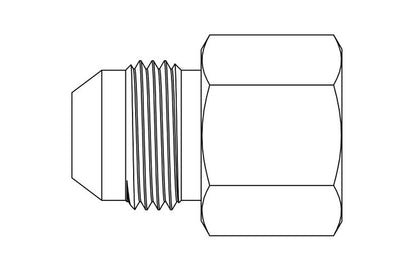

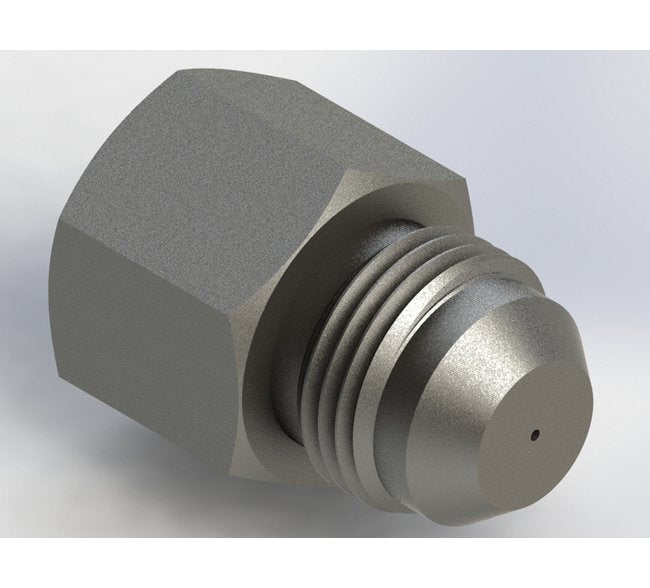

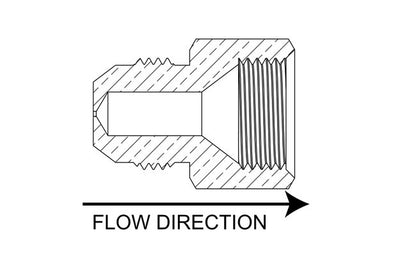

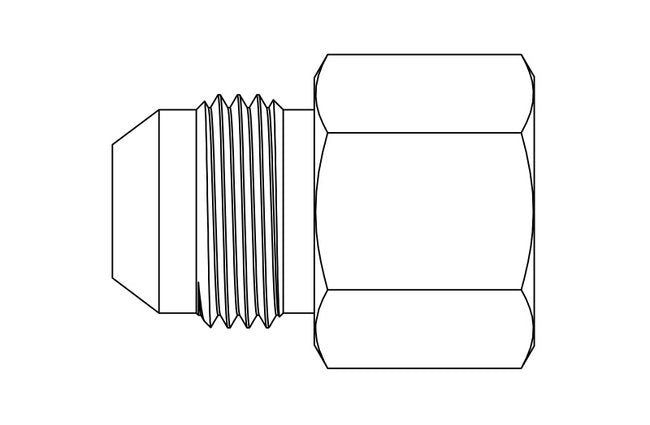

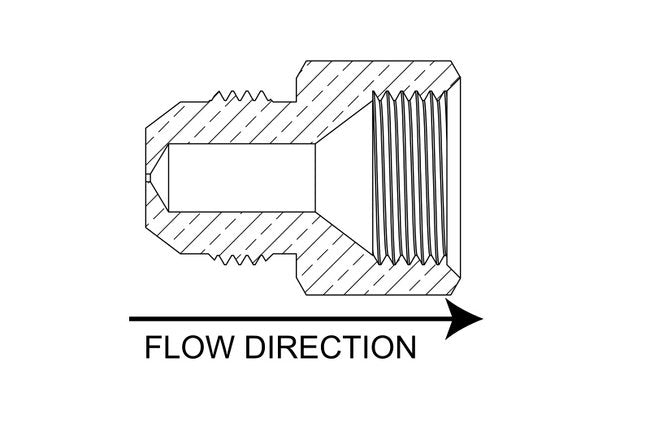

The SAE 37 Degree Flare Adapter Type CFJ8 is a precision metal orifice assembly designed for seamless integration with common fittings in process instruments and hydraulic systems. Crafted from 303 stainless steel, it offers superior accuracy with an orifice diameter of 0.043 inches (±0.0005 in) and a CV of 0.041. With a maximum operating pressure of 4000 psig, this adapter ensures bi-directional flow, precise orifice size, and predictable flow rate. Ideal for high-pressure applications, it boasts repeatable orifice characteristics and is suitable for various industrial uses.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.043 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 11.40 | 5 psig: 25.6 | 10 psig: 35.6 | 15 psig: 43.2 | 20 psig: 50.9 | 25 psig: 58.5 | 30 psig: 66.3 | 40 psig: 82.0 | 50 psig: 97.5 | 60 psig: 113 | 70 psig: 129 | 80 psig: 145 | 90 psig: 161 | 100 psig: 177
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 5.36 | 5 psig (34.5 kPag): 12.1 | 10 psig (69.0 kPag): 16.8 | 15 psig (103.4 kPag): 20.4 | 20 psig (137.9 kPag): 24 | 25 psig (172.4 kPag): 27.6 | 30 psig (206.9 kPag): 31.3 | 40 psig (275.8 kPag): 38.7 | 50 psig (344.8 kPag): 46 | 60 psig (413.7 kPag): 53.5 | 70 psig (482.7 kPag): 61 | 80 psig (551.6 kPag): 68.5 | 90 psig (620.6 kPag): 76 | 100 psig (689.5 kPag): 83.5
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 21.1 | 20 In. Hg.: 21.1 | 30 In. Hg.: 21.1
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 10 | 20 In. Hg. (508 Mm. Hg.): 10 | 30 In. Hg. (762 Mm. Hg.): 10
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 16.3 | 10 In. Hg.: 20.3
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 7.67 | 10 In. Hg. (254 Mm. Hg.): 9.58
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.041 | 2 psig: 0.058 | 3 psig: 0.071 | 4 psig: 0.082 | 5 psig: 0.092 | 6 psig: 0.100 | 7 psig: 0.108 | 8 psig: 0.116 | 9 psig: 0.123 | 10 psig: 0.130 | 15 psig: 0.159 | 20 psig: 0.183 | 30 psig: 0.225 | 40 psig: 0.259 | 50 psig: 0.290 | 60 psig: 0.318 | 70 psig: 0.343 | 80 psig: 0.367 | 90 psig: 0.389 | 100 psig: 0.410
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.155 | 2 psig (13.8 kPag): 0.219 | 3 psig (20.7 kPag): 0.269 | 4 psig (27.6 kPag): 0.310 | 5 psig (34.5 kPag): 0.347 | 6 psig (41.4 kPag): 0.38 | 7 psig (48.3 kPag): 0.411 | 8 psig (55.2 kPag): 0.439 | 9 psig (62.1 kPag): 0.466 | 10 psig (69 kPag): 0.491 | 15 psig (103.4 kPag): 0.601 | 20 psig (137.9 kPag): 0.694 | 30 psig (206.9 kPag): 0.850 | 40 psig (275.8 kPag): 0.982 | 50 psig (344.8 kPag): 1.097 | 60 psig (413.7 kPag): 1.202 | 70 psig (482.7 kPag): 1.299 | 80 psig (551.6 kPag): 1.388 | 90 psig (620.6 kPag): 1.472 | 100 psig (689.5 kPag): 1.552
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.041
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
43
Specifications Screened
None
