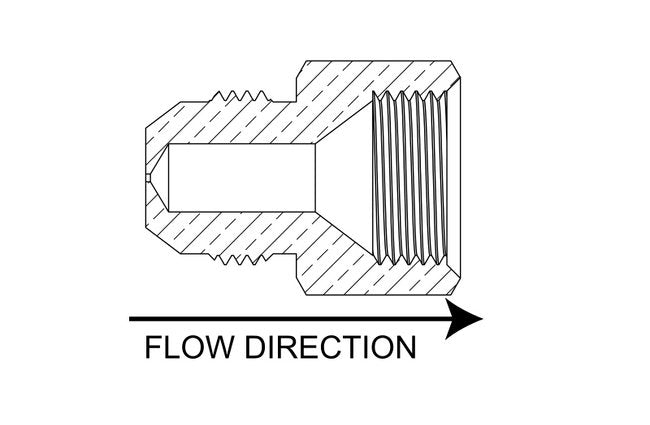

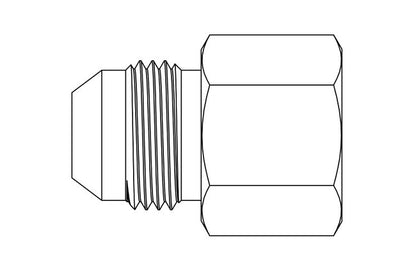

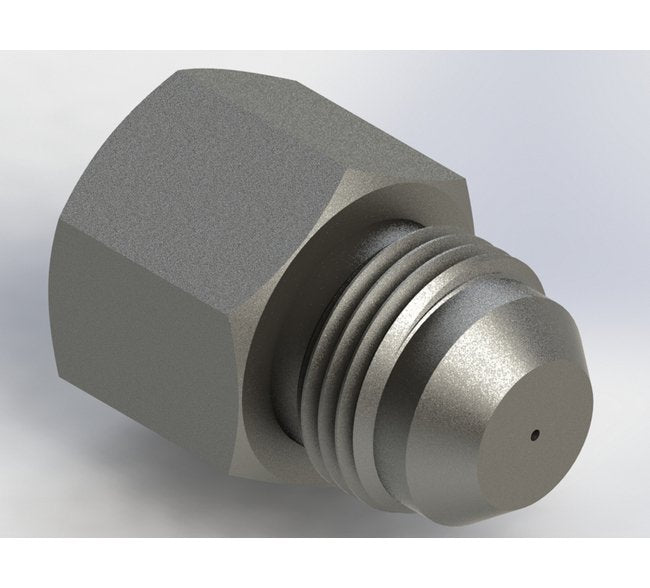

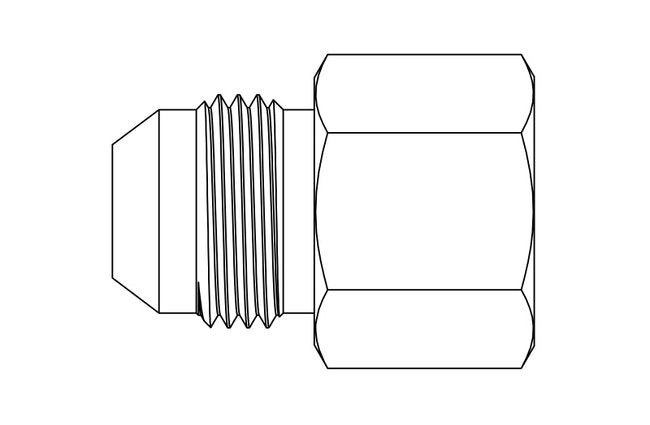

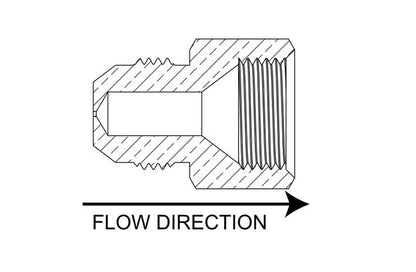

The SAE 37 Degree Flare Adapter Type CFJ8 is a precision metal orifice designed for seamless integration into process instruments and hydraulic systems. Made from high-quality 303 SS material, this adapter offers a precise orifice diameter of 0.1130 inches with an accuracy of ±0.0005 inches. With a maximum operating pressure of 4000 psig and bi-directional flow capability, it ensures reliable performance in diverse applications. This adapter boasts repeatable orifice size and shape, predictable flow rates, and compatibility with SAE 37-degree flare connections, making it a cost-effective solution for high-pressure hydraulic circuits.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.1130 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 91.4 | 5 psig: 195 | 10 psig: 250 | 15 psig: 303 | 20 psig: 354 | 25 psig: 405 | 30 psig: 458 | 40 psig: 566 | 50 psig: 672 | 60 psig: 780 | 70 psig: 892 | 80 psig: 1000 | 90 psig: 1106 | 100 psig: 1225
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 43.1 | 5 psig (34.5 kPag): 92.1 | 10 psig (69.0 kPag): 118 | 15 psig (103.4 kPag): 143 | 20 psig (137.9 kPag): 167 | 25 psig (172.4 kPag): 191 | 30 psig (206.9 kPag): 216 | 40 psig (275.8 kPag): 267 | 50 psig (344.8 kPag): 317 | 60 psig (413.7 kPag): 368 | 70 psig (482.7 kPag): 421 | 80 psig (551.6 kPag): 472 | 90 psig (620.6 kPag): 522 | 100 psig (689.5 kPag): 578
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 160 | 20 In. Hg.: 160 | 30 In. Hg.: 160
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 75.3 | 20 In. Hg. (508 Mm. Hg.): 75.3 | 30 In. Hg. (762 Mm. Hg.): 75.3
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 123 | 10 In. Hg.: 153
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 57.9 | 10 In. Hg. (254 Mm. Hg.): 72.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.310 | 2 psig: 0.438 | 3 psig: 0.537 | 4 psig: 0.620 | 5 psig: 0.693 | 6 psig: 0.759 | 7 psig: 0.820 | 8 psig: 0.877 | 9 psig: 0.930 | 10 psig: 0.980 | 15 psig: 1.201 | 20 psig: 1.386 | 30 psig: 1.698 | 40 psig: 1.961 | 50 psig: 2.192 | 60 psig: 2.401 | 70 psig: 2.594 | 80 psig: 2.773 | 90 psig: 2.941 | 100 psig: 3.100
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 1.173 | 2 psig (13.8 kPag): 1.660 | 3 psig (20.7 kPag): 2.033 | 4 psig (27.6 kPag): 2.347 | 5 psig (34.5 kPag): 2.624 | 6 psig (41.4 kPag): 2.874 | 7 psig (48.3 kPag): 3.105 | 8 psig (55.2 kPag): 3.319 | 9 psig (62.1 kPag): 3.52 | 10 psig (69 kPag): 3.711 | 15 psig (103.4 kPag): 4.545 | 20 psig (137.9 kPag): 5.248 | 30 psig (206.9 kPag): 6.427 | 40 psig (275.8 kPag): 7.422 | 50 psig (344.8 kPag): 8.298 | 60 psig (413.7 kPag): 9.09 | 70 psig (482.7 kPag): 9.818 | 80 psig (551.6 kPag): 10.496 | 90 psig (620.6 kPag): 11.133 | 100 psig (689.5 kPag): 11.735
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.310
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
113
Specifications Screened
None
