SAE 37 Degree Flare Adapter - Precision Metal Orifice CFJ6
SAE 37 Degree Flare Adapter - Precision Metal Orifice CFJ6
SKU:PRE-2b7783
Precision metal SAE 37 Degree Flare Adapter for high-pressure industrial applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SAE 37 Degree Flare Adapter - Precision Metal Orifice CFJ6
$39.99
Quantity: 1
Claim Your Seller Account
SAE 37 Degree Flare Adapter - Precision Metal Orifice CFJ6
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

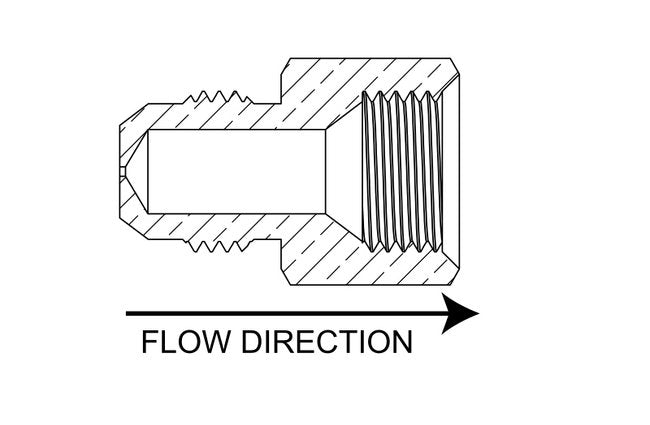

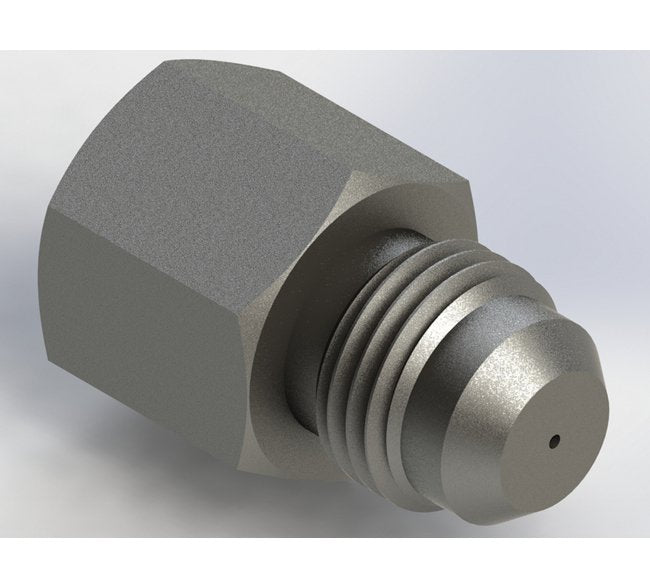

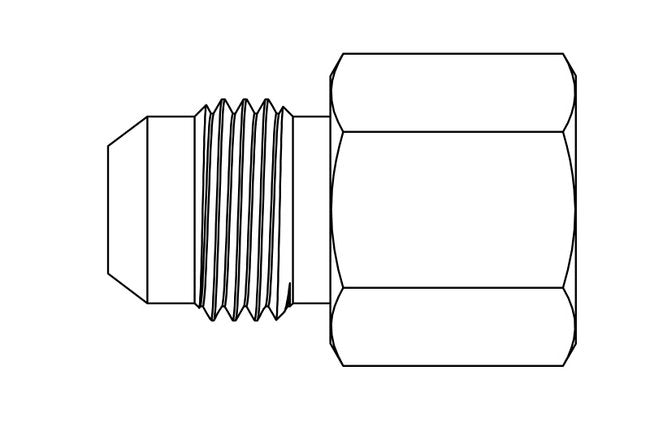

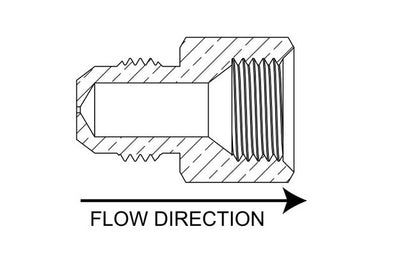

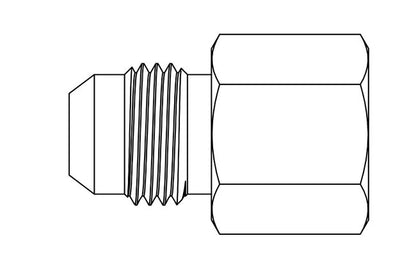

The SAE 37 Degree Flare Adapter, Type CFJ6, is a precision metal orifice assembly designed to seamlessly adapt to common process instrument fittings and hydraulic systems. Crafted from high-quality 303 SS material, this adapter offers a nominal orifice size of 7 with exceptional accuracy. With a maximum operating pressure of 4000 psig and bi-directional flow capability, it ensures reliable performance in diverse industrial settings. Whether for type K4, K2, R4, RG4, BFS, or CFJ hydraulic circuits, this adapter excels in providing repeatable orifice size, precise flow rates, and a predictable flow profile, making it an economical and efficient choice for high-pressure applications.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.625 in
Dimensions Orifice Diameter
0.0071 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.19 in
Dimensions Width Across Flats Hex
11/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.269 | 5 psig: 0.64 | 10 psig: 0.91 | 15 psig: 1.14 | 20 psig: 1.38 | 25 psig: 1.59 | 30 psig: 1.80 | 40 psig: 2.22 | 50 psig: 2.67 | 60 psig: 3.09 | 70 psig: 3.54 | 80 psig: 3.96 | 90 psig: 4.41 | 100 psig: 4.83
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.127 | 5 psig (34.5 kPag): 0.30 | 10 psig (69.0 kPag): 0.43 | 15 psig (103.4 kPag): 0.54 | 20 psig (137.9 kPag): 0.65 | 25 psig (172.4 kPag): 0.75 | 30 psig (206.9 kPag): 0.85 | 40 psig (275.8 kPag): 1.05 | 50 psig (344.8 kPag): 1.26 | 60 psig (413.7 kPag): 1.46 | 70 psig (482.7 kPag): 1.67 | 80 psig (551.6 kPag): 1.87 | 90 psig (620.6 kPag): 2.08 | 100 psig (689.5 kPag): 2.28
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.568 | 20 In. Hg.: 0.568 | 30 In. Hg.: 0.568
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.268 | 20 In. Hg. (508 Mm. Hg.): 0.268 | 30 In. Hg. (762 Mm. Hg.): 0.268
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.405 | 10 In. Hg.: 0.521
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.191 | 10 In. Hg. (254 Mm. Hg.): 0.246
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0012 | 2 psig: 0.0017 | 3 psig: 0.0021 | 4 psig: 0.0024 | 5 psig: 0.0027 | 6 psig: 0.0029 | 7 psig: 0.0032 | 8 psig: 0.0034 | 9 psig: 0.0036 | 10 psig: 0.0038 | 15 psig: 0.0046 | 20 psig: 0.0054 | 30 psig: 0.0066 | 40 psig: 0.0076 | 50 psig: 0.0085 | 60 psig: 0.0093 | 70 psig: 0.0100 | 80 psig: 0.0107 | 90 psig: 0.0114 | 100 psig: 0.0120
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0045 | 2 psig (13.8 kPag): 0.0064 | 3 psig (20.7 kPag): 0.0079 | 4 psig (27.6 kPag): 0.0091 | 5 psig (34.5 kPag): 0.0102 | 6 psig (41.4 kPag): 0.0102 | 7 psig (48.3 kPag): 0.0120 | 8 psig (55.2 kPag): 0.0128 | 9 psig (62.1 kPag): 0.0136 | 10 psig (69 kPag): 0.0144 | 15 psig (103.4 kPag): 0.0176 | 20 psig (137.9 kPag): 0.0203 | 30 psig (206.9 kPag): 0.0249 | 40 psig (275.8 kPag): 0.0287 | 50 psig (344.8 kPag): 0.0321 | 60 psig (413.7 kPag): 0.0352 | 70 psig (482.7 kPag): 0.0380 | 80 psig (551.6 kPag): 0.0406 | 90 psig (620.6 kPag): 0.0431 | 100 psig (689.5 kPag): 0.0454
Specifications Connection A
SAE 37 DEG #6; 9/16"-18 Male
Specifications Connection B
SAE 37 DEG #6; 9/16"-18 Female
Specifications Cv
0.0012
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
7
Specifications Screened
None
