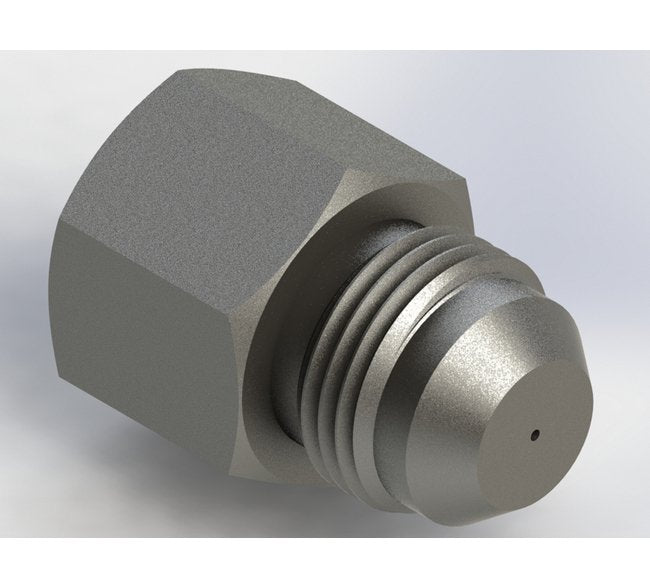

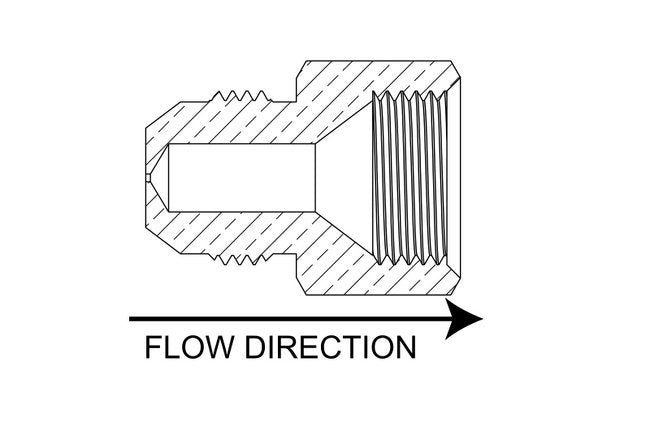

The SAE 37 Degree Flare Adapter, Type CFJ8, is a precision orifice assembly crafted from high-quality 303 SS material, ensuring durability and reliability for process instruments and hydraulic systems. With an orifice diameter of 0.0810 in (+/-0.0005 in) and a maximum operating pressure of 4000 psig, this adapter provides bi-directional flow, repeatable orifice size and shape, and predictable flow rates. Suitable for various tube and flare connections, it offers high-pressure capability, making it a cost-effective solution for institutional applications.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.

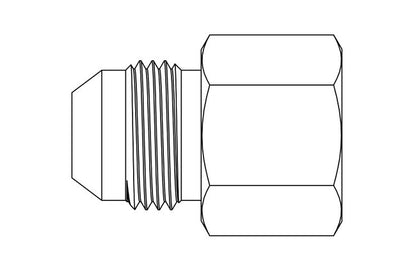

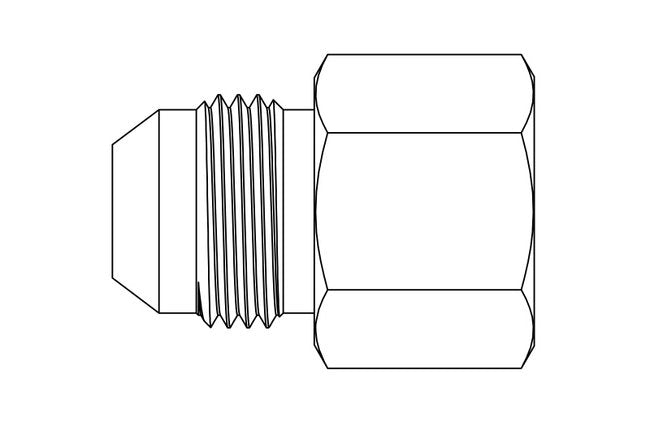

Dimensions Hex Height
0.710 in
Dimensions Orifice Diameter
0.0810 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.36 in
Dimensions Width Across Flats Hex
7/8 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 46.0 | 5 psig: 97.5 | 10 psig: 131 | 15 psig: 158 | 20 psig: 185 | 25 psig: 212 | 30 psig: 239 | 40 psig: 295 | 50 psig: 347 | 60 psig: 400 | 70 psig: 458 | 80 psig: 513 | 90 psig: 568 | 100 psig: 627
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 21.7 | 5 psig (34.5 kPag): 46 | 10 psig (69.0 kPag): 61.6 | 15 psig (103.4 kPag): 74.5 | 20 psig (137.9 kPag): 87.3 | 25 psig (172.4 kPag): 100 | 30 psig (206.9 kPag): 113 | 40 psig (275.8 kPag): 139 | 50 psig (344.8 kPag): 164 | 60 psig (413.7 kPag): 189 | 70 psig (482.7 kPag): 216 | 80 psig (551.6 kPag): 242 | 90 psig (620.6 kPag): 268 | 100 psig (689.5 kPag): 296
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 83.5 | 20 In. Hg.: 83.5 | 30 In. Hg.: 83.5
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 39.4 | 20 In. Hg. (508 Mm. Hg.): 39.4 | 30 In. Hg. (762 Mm. Hg.): 39.4
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 64 | 10 In. Hg.: 79.9
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 30.2 | 10 In. Hg. (254 Mm. Hg.): 37.7
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.150 | 2 psig: 0.212 | 3 psig: 0.260 | 4 psig: 0.300 | 5 psig: 0.335 | 6 psig: 0.367 | 7 psig: 0.397 | 8 psig: 0.424 | 9 psig: 0.450 | 10 psig: 0.474 | 15 psig: 0.581 | 20 psig: 0.671 | 30 psig: 0.822 | 40 psig: 0.949 | 50 psig: 1.061 | 60 psig: 1.162 | 70 psig: 1.255 | 80 psig: 1.342 | 90 psig: 1.423 | 100 psig: 1.500
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.568 | 2 psig (13.8 kPag): 0.803 | 3 psig (20.7 kPag): 0.983 | 4 psig (27.6 kPag): 1.136 | 5 psig (34.5 kPag): 1.27 | 6 psig (41.4 kPag): 1.391 | 7 psig (48.3 kPag): 1.502 | 8 psig (55.2 kPag): 1.606 | 9 psig (62.1 kPag): 1.703 | 10 psig (69 kPag): 1.796 | 15 psig (103.4 kPag): 2.199 | 20 psig (137.9 kPag): 2.539 | 30 psig (206.9 kPag): 3.110 | 40 psig (275.8 kPag): 3.591 | 50 psig (344.8 kPag): 4.015 | 60 psig (413.7 kPag): 4.398 | 70 psig (482.7 kPag): 4.751 | 80 psig (551.6 kPag): 5.079 | 90 psig (620.6 kPag): 5.387 | 100 psig (689.5 kPag): 5.678
Specifications Connection A
SAE 37 DEG #8; 3/4"-16 Male
Specifications Connection B
SAE 37 DEG #8; 3/4"-16 Female
Specifications Cv
0.150
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
81
Specifications Screened
None
