SAE 37 Degree Flare Adapter, Type CFJ4 - Precision Metal Orifice
SAE 37 Degree Flare Adapter, Type CFJ4 - Precision Metal Orifice
SKU:PRE-7cb756
High-quality SAE 37 Degree Flare Adapter for precise hydraulic systems, meeting institutional standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SAE 37 Degree Flare Adapter, Type CFJ4 - Precision Metal Orifice
$49.99
Quantity: 1
Claim Your Seller Account
SAE 37 Degree Flare Adapter, Type CFJ4 - Precision Metal Orifice
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

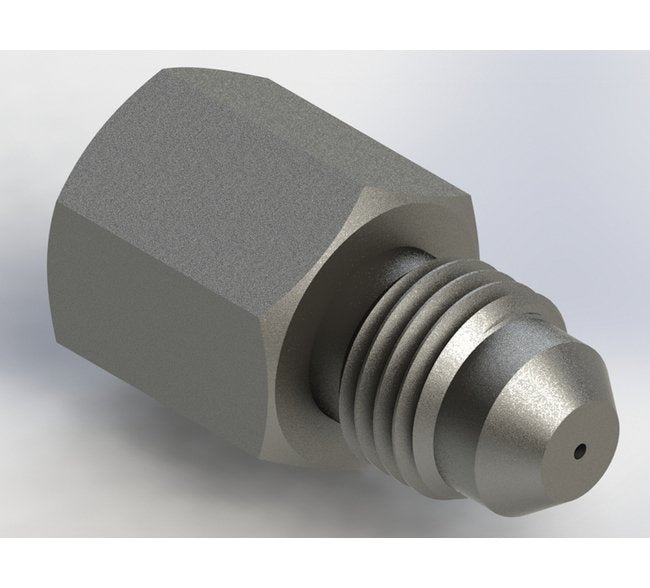

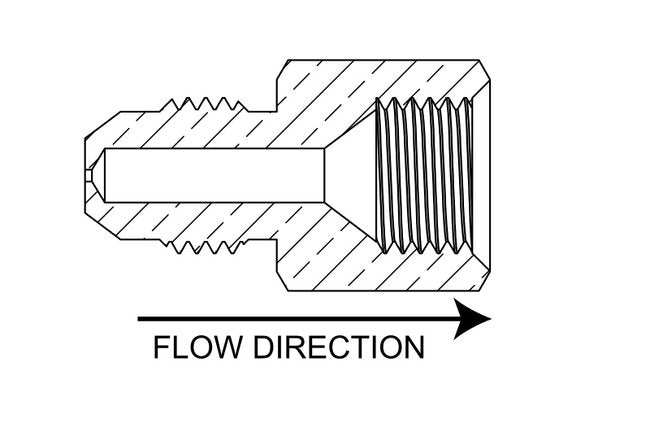

The SAE 37 Degree Flare Adapter, Type CFJ4, is a precision metal orifice assembly designed to adapt to common fittings in process instruments and hydraulic systems. Crafted from high-quality 303 SS material, this adapter features superior dimensions with an orifice diameter of 0.0051 inches (±0.0005 in accuracy). With a maximum operating pressure of 4000 psig, bi-directional flow capability, and precise orifice sizing, this adapter ensures predictable flow rates and repeatable performance. Ideal for hydraulic circuits with SAE flare connections, it meets the stringent requirements of institutional and government procurement standards.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.

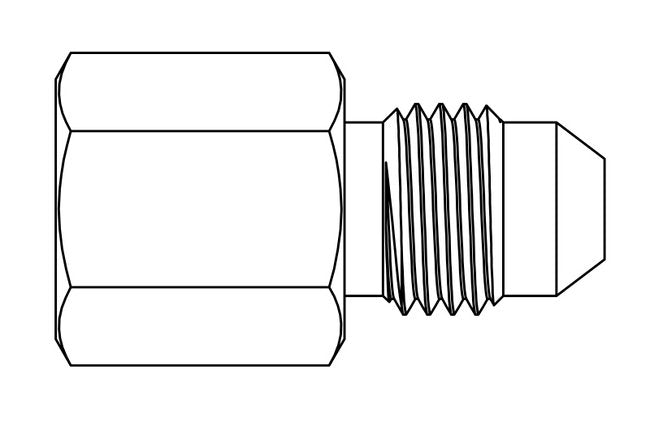

Dimensions Hex Height
0.600 in
Dimensions Orifice Diameter
0.0051 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.14 in
Dimensions Width Across Flats Hex
9/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 0.136 | 5 psig: 0.33 | 10 psig: 0.47 | 15 psig: 0.59 | 20 psig: 0.70 | 25 psig: 0.82 | 30 psig: 0.92 | 40 psig: 1.15 | 50 psig: 1.37 | 60 psig: 1.59 | 70 psig: 1.82 | 80 psig: 2.04 | 90 psig: 2.27 | 100 psig: 2.48
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 0.064 | 5 psig (34.5 kPag): 0.16 | 10 psig (69.0 kPag): 0.22 | 15 psig (103.4 kPag): 0.28 | 20 psig (137.9 kPag): 0.33 | 25 psig (172.4 kPag): 0.39 | 30 psig (206.9 kPag): 0.44 | 40 psig (275.8 kPag): 0.54 | 50 psig (344.8 kPag): 0.65 | 60 psig (413.7 kPag): 0.75 | 70 psig (482.7 kPag): 0.86 | 80 psig (551.6 kPag): 0.96 | 90 psig (620.6 kPag): 1.07 | 100 psig (689.5 kPag): 1.17
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 0.284 | 20 In. Hg.: 0.284 | 30 In. Hg.: 0.284
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 0.134 | 20 In. Hg. (508 Mm. Hg.): 0.134 | 30 In. Hg. (762 Mm. Hg.): 0.134
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 0.203 | 10 In. Hg.: 0.263
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 0.096 | 10 In. Hg. (254 Mm. Hg.): 0.124
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.0006 | 2 psig: 0.0009 | 3 psig: 0.0011 | 4 psig: 0.0012 | 5 psig: 0.0014 | 6 psig: 0.0015 | 7 psig: 0.0016 | 8 psig: 0.0017 | 9 psig: 0.0018 | 10 psig: 0.0019 | 15 psig: 0.0024 | 20 psig: 0.0027 | 30 psig: 0.0033 | 40 psig: 0.0039 | 50 psig: 0.0043 | 60 psig: 0.0047 | 70 psig: 0.0051 | 80 psig: 0.0055 | 90 psig: 0.0058 | 100 psig: 0.0061
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.0023 | 2 psig (13.8 kPag): 0.0033 | 3 psig (20.7 kPag): 0.0040 | 4 psig (27.6 kPag): 0.0046 | 5 psig (34.5 kPag): 0.0052 | 6 psig (41.4 kPag): 0.0052 | 7 psig (48.3 kPag): 0.0061 | 8 psig (55.2 kPag): 0.0065 | 9 psig (62.1 kPag): 0.0069 | 10 psig (69 kPag): 0.0073 | 15 psig (103.4 kPag): 0.0089 | 20 psig (137.9 kPag): 0.0103 | 30 psig (206.9 kPag): 0.0126 | 40 psig (275.8 kPag): 0.0146 | 50 psig (344.8 kPag): 0.0163 | 60 psig (413.7 kPag): 0.0179 | 70 psig (482.7 kPag): 0.0193 | 80 psig (551.6 kPag): 0.0207 | 90 psig (620.6 kPag): 0.0219 | 100 psig (689.5 kPag): 0.0231
Specifications Connection A
SAE 37 DEG #4; 7/16"-20 Male
Specifications Connection B
SAE 37 DEG #4; 7/16"-20 Female
Specifications Cv
0.00061
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
5
Specifications Screened
None
