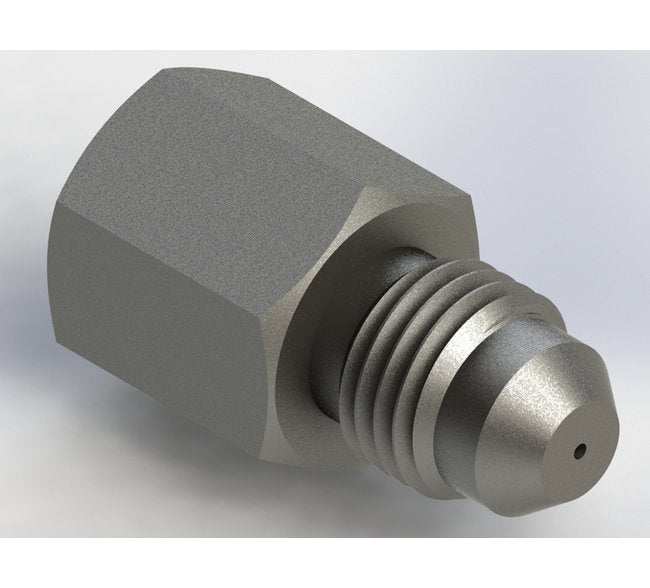

The SAE 37 Degree Flare Adapter, Type CFJ4, ensures precise adaptation to common process instrument and hydraulic system fittings. Crafted from high-quality 303 SS, this adapter offers a Nominal Orifice Size of 104 with exceptional dimensional accuracy of ±0.0005 in. It boasts a Maximum Operating Pressure of 4000 psig, making it ideal for high-pressure applications. With bi-directional flow capability, repeatable orifice sizes, and predictable flow rates, this adapter is both economical and reliable. Whether it's Type K4, K2, R4, RG4, BFS, or CFJ hydraulic circuits, this adapter with SAE flare connections is a versatile and efficient choice.
Product Specifications
Advantages 0
High Pressure Capability Bi-directional Flow Economical Precision Orifice Repeatable Orifice Size and Shape Predictable Flow Rate
Application 0
Type K4 is a 1/4" OD Tube and is suitable for use with a wide variety of compression fittings.Type K2 is for 1/8" OD Tube fittings.Types R4 and RG4 are suitable for use with face seal fittings. Types BFS and CFJ are used in hydraulic circuits, having SAE flare connections.
Dimensions Hex Height
0.600 in
Dimensions Orifice Diameter
0.1040 in
Dimensions Orifice Diameter Accuracy
±0.0005 in
Dimensions Total Length
1.14 in
Dimensions Width Across Flats Hex
9/16 in
Flow Data Air Flow At Pressure Standard Cu Ft Per Hour Scfh
1 psig: 75.2 | 5 psig: 162 | 10 psig: 216 | 15 psig: 261 | 20 psig: 305 | 25 psig: 347 | 30 psig: 392 | 40 psig: 483 | 50 psig: 576 | 60 psig: 667 | 70 psig: 763 | 80 psig: 856 | 90 psig: 947 | 100 psig: 1047
Flow Data Air Flow At Pressure Standard Liters Per Minute Slpm
1 psig (6.9 kPag): 35.5 | 5 psig (34.5 kPag): 76.6 | 10 psig (69.0 kPag): 102 | 15 psig (103.4 kPag): 123 | 20 psig (137.9 kPag): 144 | 25 psig (172.4 kPag): 164 | 30 psig (206.9 kPag): 185 | 40 psig (275.8 kPag): 228 | 50 psig (344.8 kPag): 272 | 60 psig (413.7 kPag): 315 | 70 psig (482.7 kPag): 360 | 80 psig (551.6 kPag): 404 | 90 psig (620.6 kPag): 447 | 100 psig (689.5 kPag): 494
Flow Data Air Flow At Vacuum Choked Flow Standard Cu Ft Per Hour
15 In. Hg.: 135 | 20 In. Hg.: 135 | 30 In. Hg.: 135
Flow Data Air Flow At Vacuum Choked Flow Standard Liters Per Min
15 In. Hg. (381 Mm. Hg.): 63.8 | 20 In. Hg. (508 Mm. Hg.): 63.8 | 30 In. Hg. (762 Mm. Hg.): 63.8
Flow Data Air Flow At Vacuum Standard Cu Ft Per Hour Scfh
5 In. Hg.: 104 | 10 In. Hg.: 130
Flow Data Air Flow At Vacuum Standard Liters Per Minute Slpm
5 In. Hg. (127 Mm. Hg.): 49 | 10 In. Hg. (254 Mm. Hg.): 61.2
Flow Data Flow Data Status
Generic
Flow Data Water Flow Gallonsminute Gpm
1 psig: 0.250 | 2 psig: 0.354 | 3 psig: 0.433 | 4 psig: 0.500 | 5 psig: 0.559 | 6 psig: 0.612 | 7 psig: 0.661 | 8 psig: 0.707 | 9 psig: 0.750 | 10 psig: 0.791 | 15 psig: 0.968 | 20 psig: 1.118 | 30 psig: 1.369 | 40 psig: 1.581 | 50 psig: 1.768 | 60 psig: 1.936 | 70 psig: 2.092 | 80 psig: 2.236 | 90 psig: 2.372 | 100 psig: 2.500
Flow Data Water Flow Litersminute Lpm
1 psig (6.9 kPag): 0.946 | 2 psig (13.8 kPag): 1.338 | 3 psig (20.7 kPag): 1.639 | 4 psig (27.6 kPag): 1.893 | 5 psig (34.5 kPag): 2.116 | 6 psig (41.4 kPag): 2.318 | 7 psig (48.3 kPag): 2.504 | 8 psig (55.2 kPag): 2.677 | 9 psig (62.1 kPag): 2.839 | 10 psig (69 kPag): 2.993 | 15 psig (103.4 kPag): 3.665 | 20 psig (137.9 kPag): 4.232 | 30 psig (206.9 kPag): 5.183 | 40 psig (275.8 kPag): 5.985 | 50 psig (344.8 kPag): 6.692 | 60 psig (413.7 kPag): 7.33 | 70 psig (482.7 kPag): 7.918 | 80 psig (551.6 kPag): 8.464 | 90 psig (620.6 kPag): 8.978 | 100 psig (689.5 kPag): 9.464
Specifications Connection A
SAE 37 DEG #4; 7/16"-20 Male
Specifications Connection B
SAE 37 DEG #4; 7/16"-20 Female
Specifications Cv
0.250
Specifications Material
303 SS
Specifications Maximum Operating Pressure
4000 psig
Specifications Nominal Orifice Size
104
Specifications Screened
None
